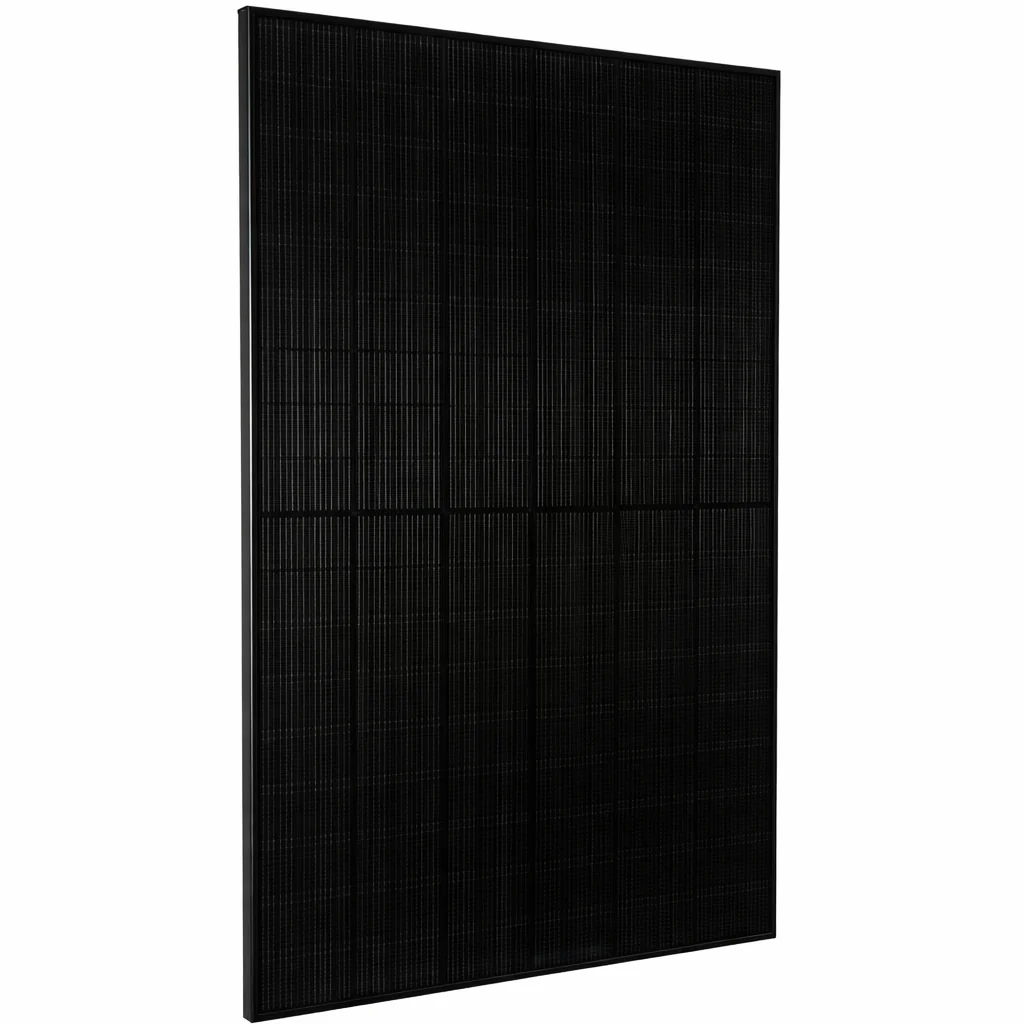

Mission Solar MSX10-435HN0B 435 Watt All Black Solar Panel- Domestic Content

Mission Solar MSX10-435HN0B

Texas-built power for the long haul. Proudly engineered and assembled in San Antonio, Texas, the MSX10-435HN0B is Mission Solar’s most advanced module. By utilizing N-Type i-TOPCon cell architecture, this panel overcomes the degradation limits of traditional PERC modules, offering a higher energy ceiling and a sleek, uniform aesthetic preferred by high-end residential installers.

• Product Performance

  Rated Power


  Efficiency


  Power Tolerance


  Temperature Coefficient


  Resiliency

  435W


  22.3%


  0/+3%


  PMax: -0.29 | Voc: -0.25


  ✔️ Snow (5400 Pa)
  ✔️ Wind (2400 Pa)
  ✔️ Hail







  Power (measured in watts) and efficiency (how well panels convert sunlight to electricity) are some of the most common metrics used to compare solar panel products. While they are not the only means of comparison, they are important determinants in how much electricity you can produce with a solar panel system. Metrics like power tolerance and temperature coefficient are also important ways to analyze the potential performance of solar panels under the different conditions they will experience over their lifetime. Learn how panels from different manufacturers stack up against one another in our updated article about the best solar panels on the market.

• Warranty Information

  ✔️ Output Warranty Term: 30 years
  ✔️ Output Decline: 0.45%
  ✔️ Output at End of Warranty Term: 86%
  ✔️ Materials Warranty Term: 25 years

  Solar panels generally come with an output warranty covering the energy production of the panel, and a materials warranty protecting you against undue wear and tear on your equipment. Learn more about solar panel warranties.

• Physical Characteristics

  ✔️ Cell Type: Monocrystalline
  ✔️ Panel Dimensions: 1722 mm x 1134 mm x 35 mm
  ✔️ Connector Type: Staubli MC4
  ✔️ Cell Count: 108

  The physical characteristics of a solar panel have an impact on the product's performance. For example, metrics like efficiency and wattage are based on the type, size, and number of solar cells used in a panel.

• Certifications

  ✔️ Certifications Received: IEC 61215, IEC 61730, IEC 61701

  Organizations like the International Electrotechnical Commission (IEC) and Underwriters Laboratories (UL) create national and international standards for photovoltaic solar panels to ensure any products on the market meet certain specifications for safety and reliability reasons.
