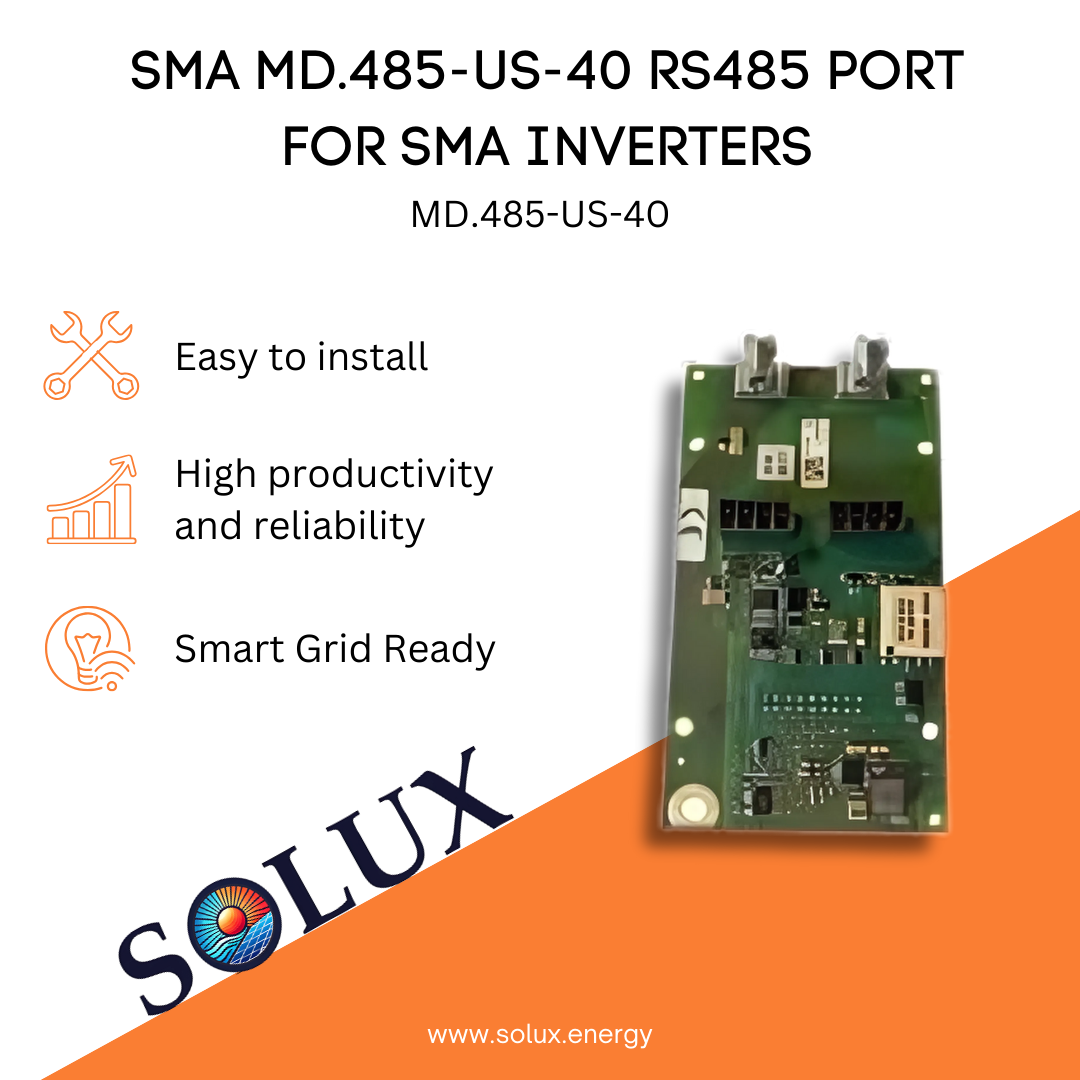

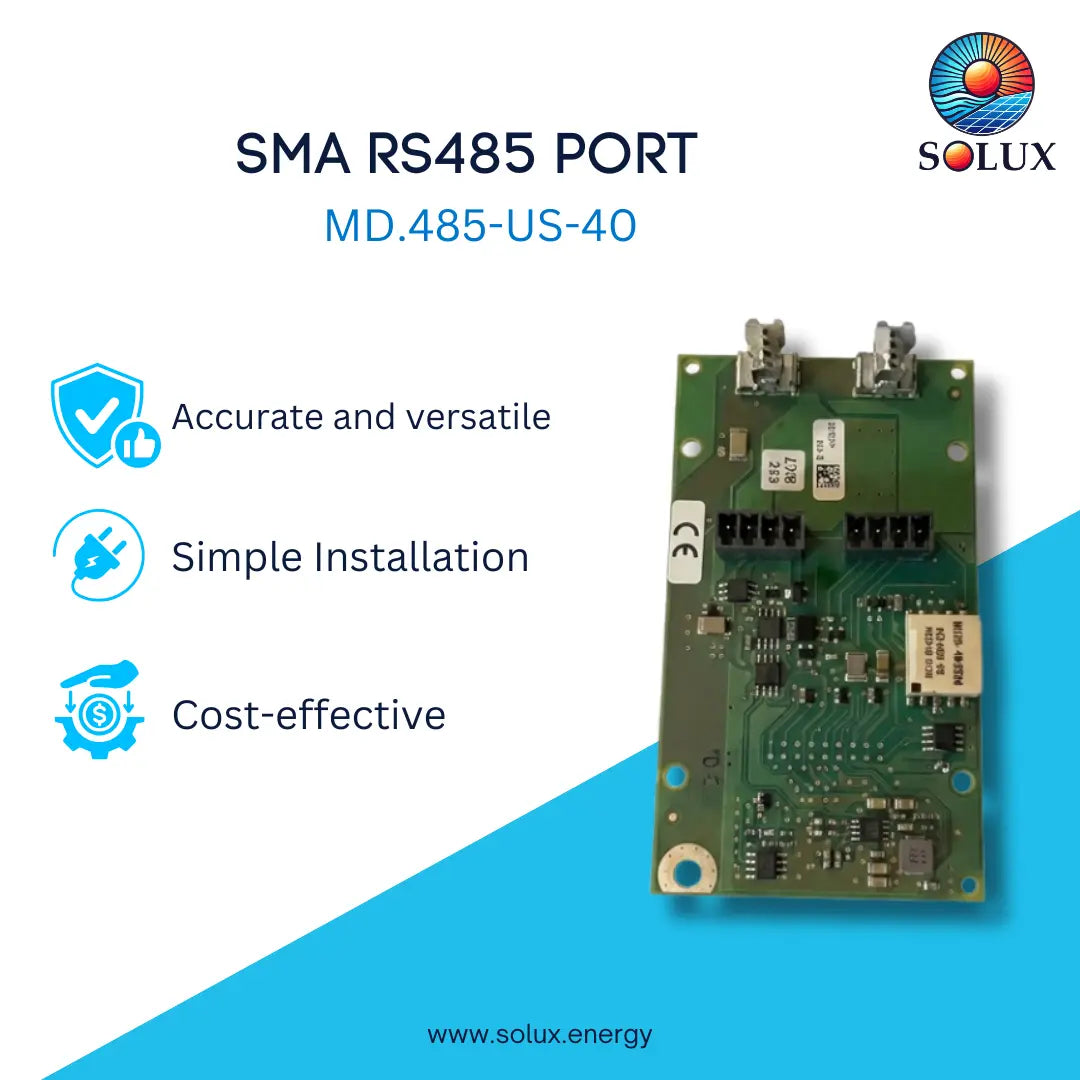

SMA MD.485-US-40 RS485 Port For SMA Inverters

SMA RS485 Port for SMA Inverters

RS485 port for SMA inverters.
To be bundled with the RGM05KIT-10 for use in RGM05KIT-10-485.

Technical Specifications

• Manufacturer Part Number: MD.485-US-40
• Shipping Weight: 1 lb
• Dimensions: 5.4 x 6.4 x 2.3 Inches
• Weight: 2.3 lbs
• Maximum Allowed System Voltage: 1000 VDC
• Compatible Inverters: All SolarEdge Single Phase and Three Phase Inverters
• Input Connector: MC4 Compatible
• Output Wire Type/Connector: Double Insulated; MC4 Compatible
• Output Wire Length: 3.90 Feet
• Operating Temperature Range: -40 to +85°C
• Protection Rating: IP68/NEMA6P
• Relative Humidity: 0-100%
• EMC Compliance: FCC Part15 Class B, IEC61000-6-2, IEC61000-6-3
• Safety: IEC62109-1 (Class II Safety), UL1741
• RoHS Compliance: Yes
• Rated Input DC Power: 505 Watts
• Absolute Maximum Input Voltage: 83 VDC
• MPPT Operating Range: 12.5 - 83 Volts
• Maximum Short Circuit Current (Isc): 14 ADC
• Maximum DC Input Current: 17.5 ADC
• Maximum Efficiency: 99.5%
• Weighted Efficiency: 98.6%
