Description

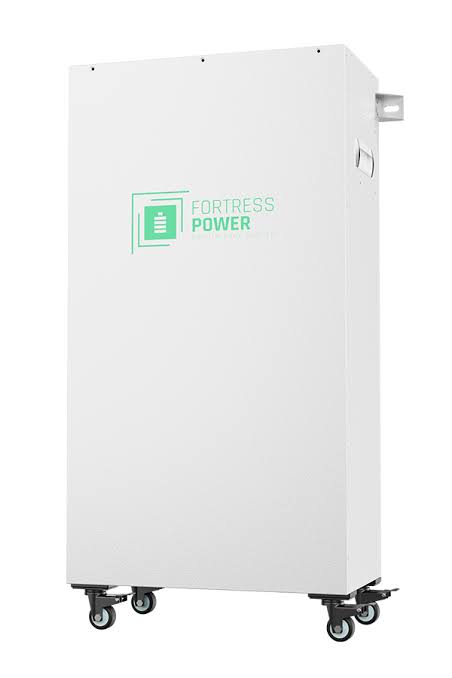

LFP-10 MAX – 10kWh Lithium Battery
The LFP-10 Max is a high-performance lithium iron phosphate (LFP) battery engineered for both residential and light commercial energy storage. With a 98% round-trip efficiency and fast charging capabilities, it’s built to lower the lifetime cost of energy while providing consistent performance across a wide temperature range. Safe, space-saving, and simple to install, the LFP-10 Max is ideal for homeowners and solar professionals seeking dependable energy storage with maximum flexibility.
Features and Specifications of the LFP-10 MAX
- Total energy capacity: 10.24 kW
- Battery capacity: 200 Ah
- Maximum continuous charge current: 120A
- Maximum continuous discharge current: 120A
- Maximum pulse current: 150A for 5 seconds
- Cycle life: 6,000 cycles at 80% depth of discharge
- Dimensions: 17.3 × 9.4 × 33.8 inches
- Weight: 210 lbs (95 kg)
- Enclosure rating: IP30, indoor installation
-
Resources
Datasheet
✔️ Download Datasheet
Quick Installation Guide
✔️ No quick installation guide file resource available. Email support@solux.energy for file request.
Warranty
✔️ No warranty file resource available. Email support@solux.energy for file request.
