Description
Jinko Solar 430W Tiger Neo N-Type All-Black (JKM430N-54HL4-B)
Elite energy density for high-performance rooftops. The JKM430N-54HL4-B is the flagship of Jinko Solar’s Tiger Neo series, utilizing breakthrough N-Type TOPCon (Tunnel Oxide Passivated Contact) technology. This all-black module delivers a remarkable 22.02% efficiency, producing 20.5W per square foot to maximize production even on roof spaces with tight constraints. Engineered for reliability, it combines sleek aesthetics with the industry’s lowest degradation rates.
Product Highlights:
- N-Type TOPCon & Hot 2.0 Tech: Immune to Light-Induced Degradation (LID), Jinko’s N-type architecture ensures "Zero-LID" performance. Proprietary Hot 2.0 technology minimizes resistive loss, significantly outperforming traditional mono-PERC panels in low-light and overcast conditions.
- Extreme Weather Resilience: As a Bloomberg Tier 1 product, this panel is certified for extreme mechanical loads (5400 Pa snow / 2400 Pa wind). Integrated Anti-PID performance prevents voltage-induced power loss, ensuring reliable generation in high-humidity or coastal environments.
- SMBB Circular Ribbon Design: Super Multi-Busbar (SMBB) technology utilizes circular ribbons to enhance light trapping and current collection. This engineering choice results in higher power output per cell and superior thermal stability in high-heat climates.
- 30-Year Bankable Warranty: Features a bankable 25-year product warranty and a 30-year linear power warranty. With a first-year degradation of <1% and a guaranteed 87.4% capacity at Year 30, it offers unmatched long-term financial security.
-
Product Performance
Rated Power
Rated Power per Cell
Efficiency
Power Tolerance
Temperature Coefficient
Resiliency
430W
3.98W
22.02%
3%
PMax: -0.29 Voc: -0.25
✔️ Snow
✔️ Wind
✔️ Fire
Power (measured in watts) and efficiency (how well panels convert sunlight to electricity) are some of the most common metrics used to compare solar panel products. While they are not the only means of comparison, they are important determinants in how much electricity you can produce with a solar panel system. Metrics like power tolerance and temperature coefficient are also important ways to analyze the potential performance of solar panels under the different conditions they will experience over their lifetime. Learn how panels from different manufacturers stack up against one another in our updated article about the best solar panels on the market.
-
Warranty Information
✔️ Output Warranty Term: 30 years
✔️ Output Decline: 0.4%
✔️ Output at End of Warranty Term: 87.4%
✔️ Materials Warranty Term: 25 years
Solar panels generally come with an output warranty covering the energy production of the panel, and a materials warranty protecting you against undue wear and tear on your equipment. Learn more about solar panel warranties. -
Physical Characteristics
✔️ Cell Type: Monocrystalline
✔️ Panel Dimensions: 1722 mm x 1134 mm x 35 mm
✔️ Connector Type: Staubli MC4
✔️ Cell Count: 108
The physical characteristics of a solar panel have an impact on the product's performance. For example, metrics like efficiency and wattage are based on the type, size, and number of solar cells used in a panel. -
Certifications
✔️ Certifications Received: IEC 61730, IEC 61215 PERFORMANCE, ISO9001, ISO14001
Organizations like the International Electrotechnical Commission (IEC) and Underwriters Laboratories (UL) create national and international standards for photovoltaic solar panels to ensure any products on the market meet certain specifications for safety and reliability reasons.

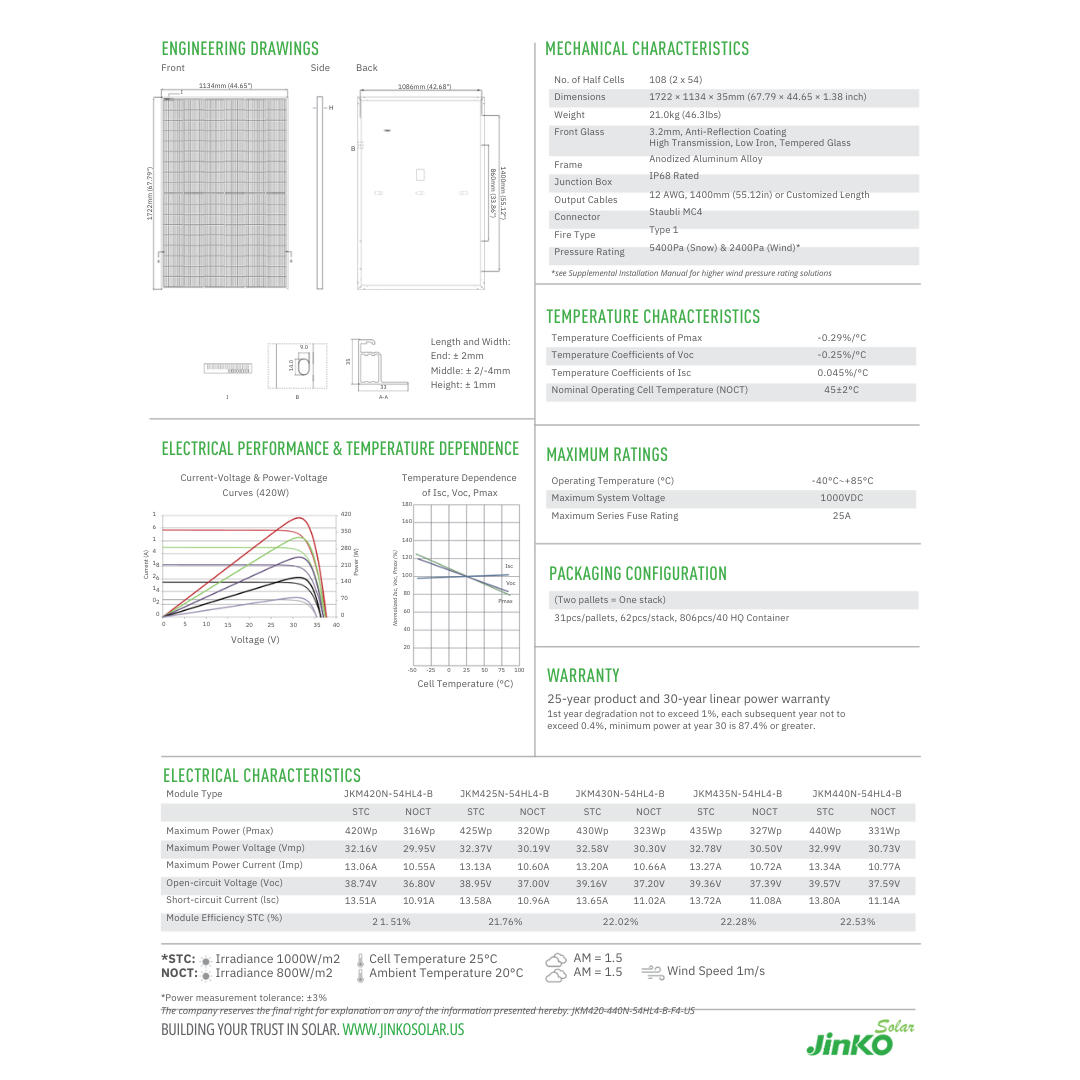

Download Spec Sheet
Monocrystalline solar cell technology for enhanced efficiency. Produces 430W per square feet to optimize rooftops with space constraints. Independently generates renewable energy for electric bill savings.
