Description
Ironridge End Fastening Object (End Clamp, 30-40MM), Mill (Priced as each)

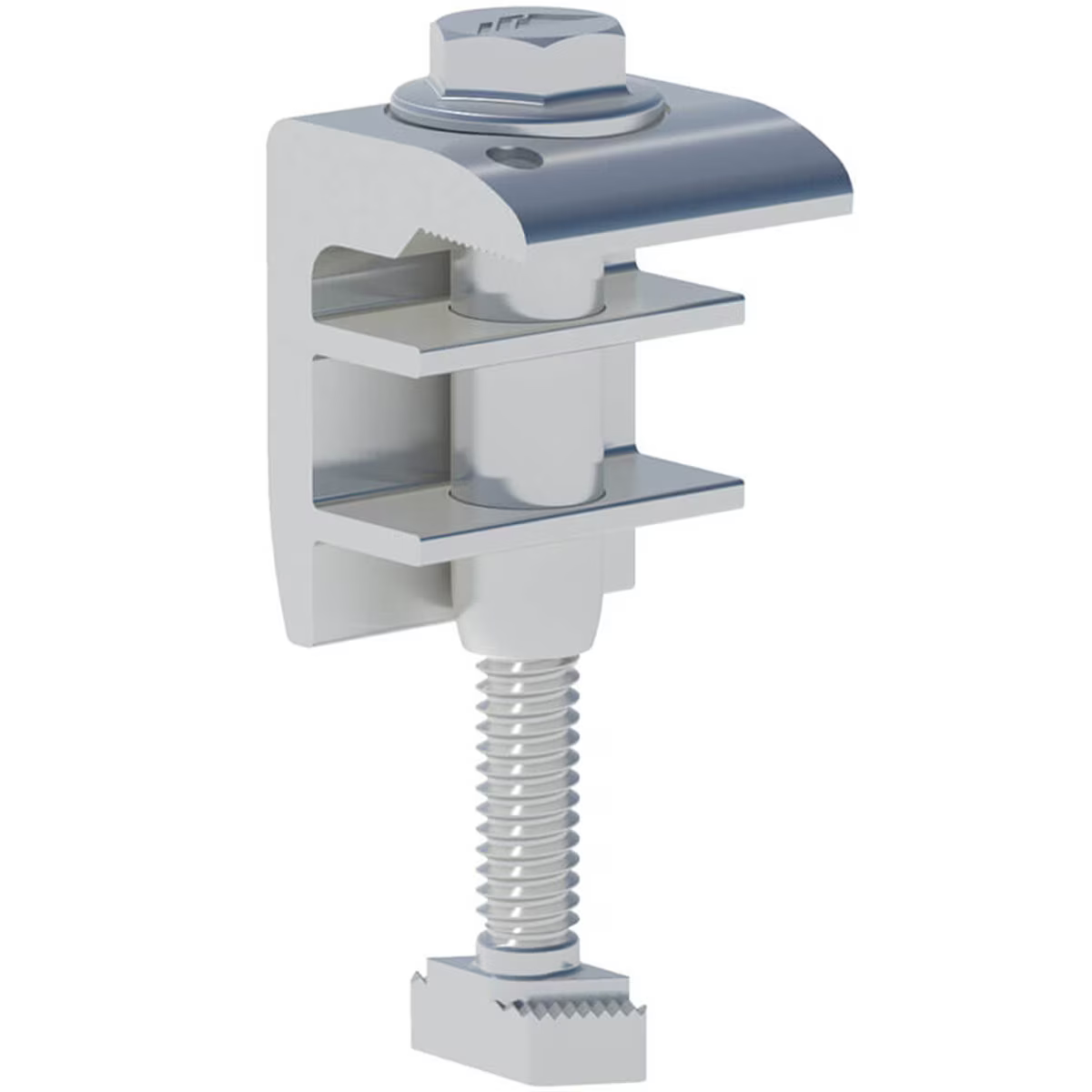

The IronRidge UFO End Clamp is a universal, one-piece end clamp used to secure the outer edges of solar modules to XR rails. It fits 30–40 mm frame heights, provides integrated grounding, installs quickly with a clean look, and is certified to UL-2703 for safety and reliability.
- Manufacturer Part Number: UFO-END-01-A1
- Manufacturer Warranty: 25 Years
- Shipping Weight: .105 lb
- Shipping Dimensions: 2 x 1 x 1 in
- Case Qty: 100
- Pallet Qty: 14400
-
Downloads

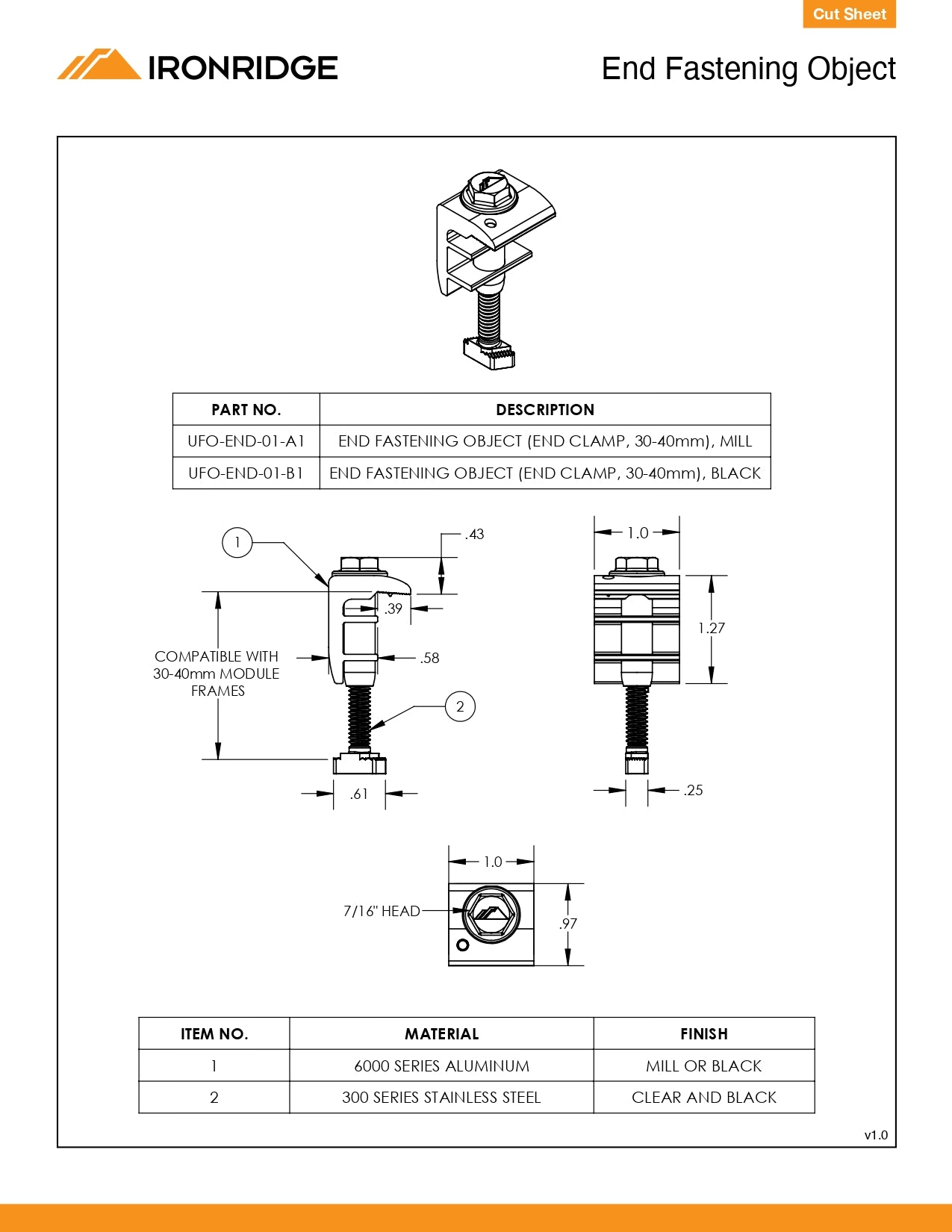

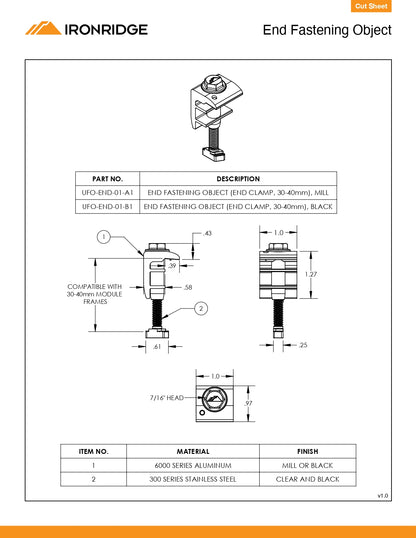

Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
