Description

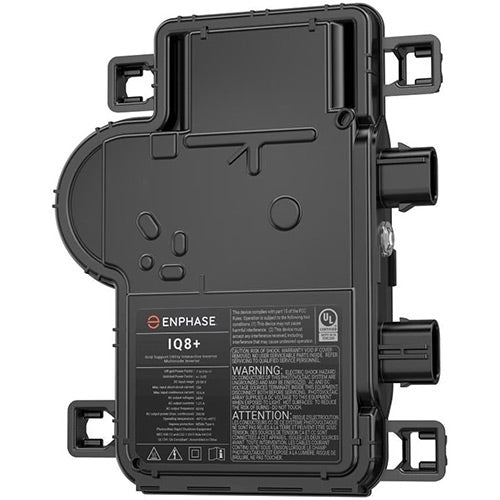

Enphase IQ8Plus Microinverter (IQ8PLUS-72-M-US)
The Enphase IQ8Plus-72-M-US is the industry's first microgrid-forming, software-defined microinverter. Part of the revolutionary IQ8 Series, it is designed specifically for high-powered 60-cell, 66-cell, and 72-cell solar modules. With a peak output of 300VA, the IQ8Plus enables Sunlight Backup™ capability, allowing homeowners to maintain power during grid outages even without a battery bank when paired with an Enphase System Controller 2.

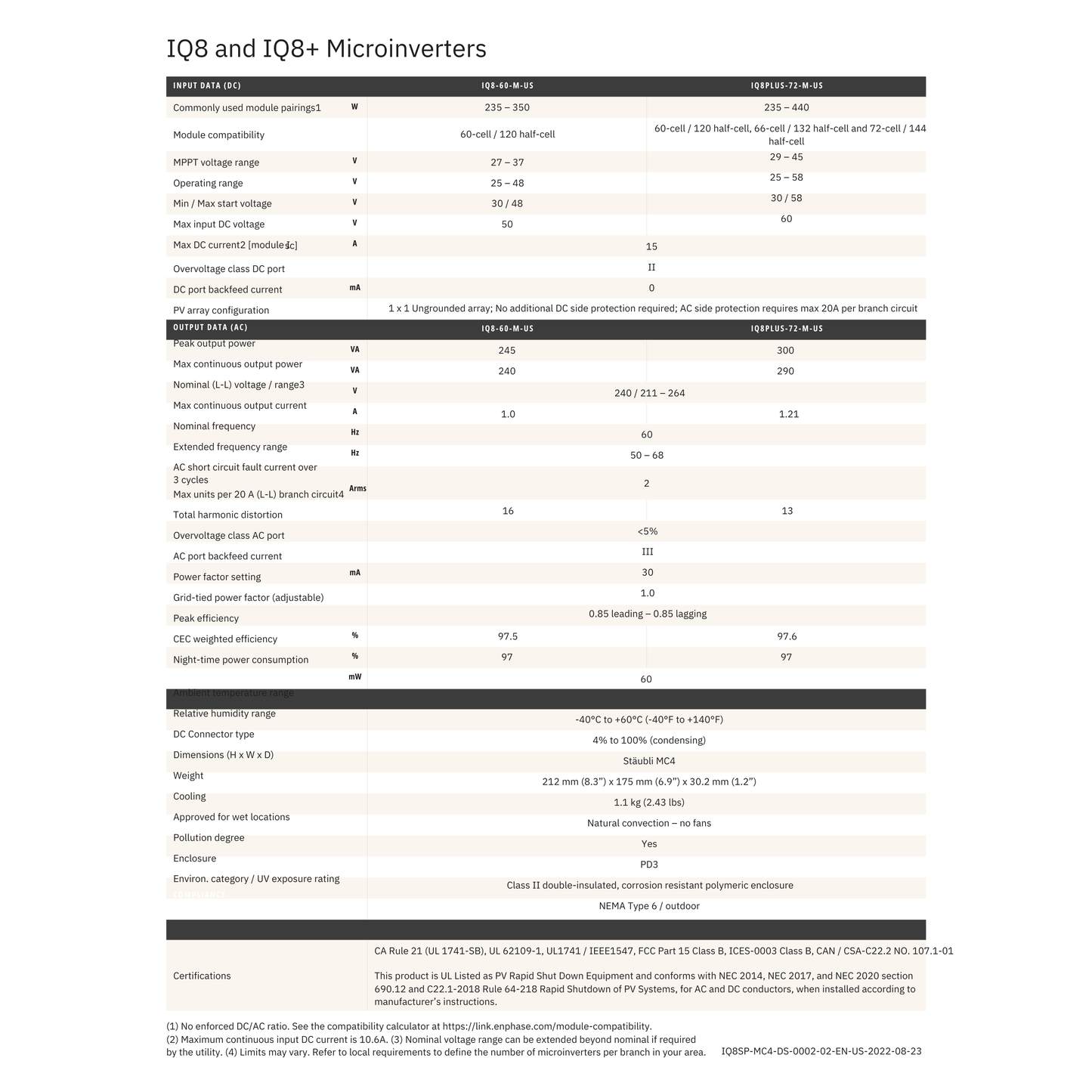

Technical Benefits:
- Manufacturer Part Number: IQ8PLUS-72-M-US
- Peak output power: 300 VA
- Weight: 1.1 kg (2.43 lbs)
- Nominal grid voltage (L-L): 240 V, split-phase (L-L), 180°
- Nominal frequency: 60 Hz
- CEC weighted efficiency: 97%
- Maximum input DC voltage : 60 V
- MPPT voltage range : 27–45 V
- Maximum module Isc: 20 A
- Ambient temperature range: –40°C to 60°C (–40°F to 140°F)
- Meets CA Rule 21 (UL 1741-SA) and IEEE 1547:2018 (UL 1741-SB 3rd Ed.)
-
