The Enphase IQ8+ Microinverter is a premium, software-defined power electronics unit and a core component of the Enphase Energy System. Engineered for high-output 72-cell solar modules, the IQ8+ delivers a 300 VA peak output and is backed by an industry-leading 25 year limited warranty.
- Manufacturer Part Number: IQ8PLUS-72-2-US
- UL Certificate
- Power Output: 300 VA
- Shipping Weight: 2.63 lb
- Shipping Dimensions: 11.2 x 9.8 x 1.5 in
- Physical Product Dimensions: The actual microinverter unit (without the mounting bracket) measures 8.3 in (212 mm) x 6.9 in (175 mm) x 1.2 in (30.2 mm).
- Case Qty: 18
- Pallet Qty: 756
- Warranty: 25 year limited warranty
-
Documentation

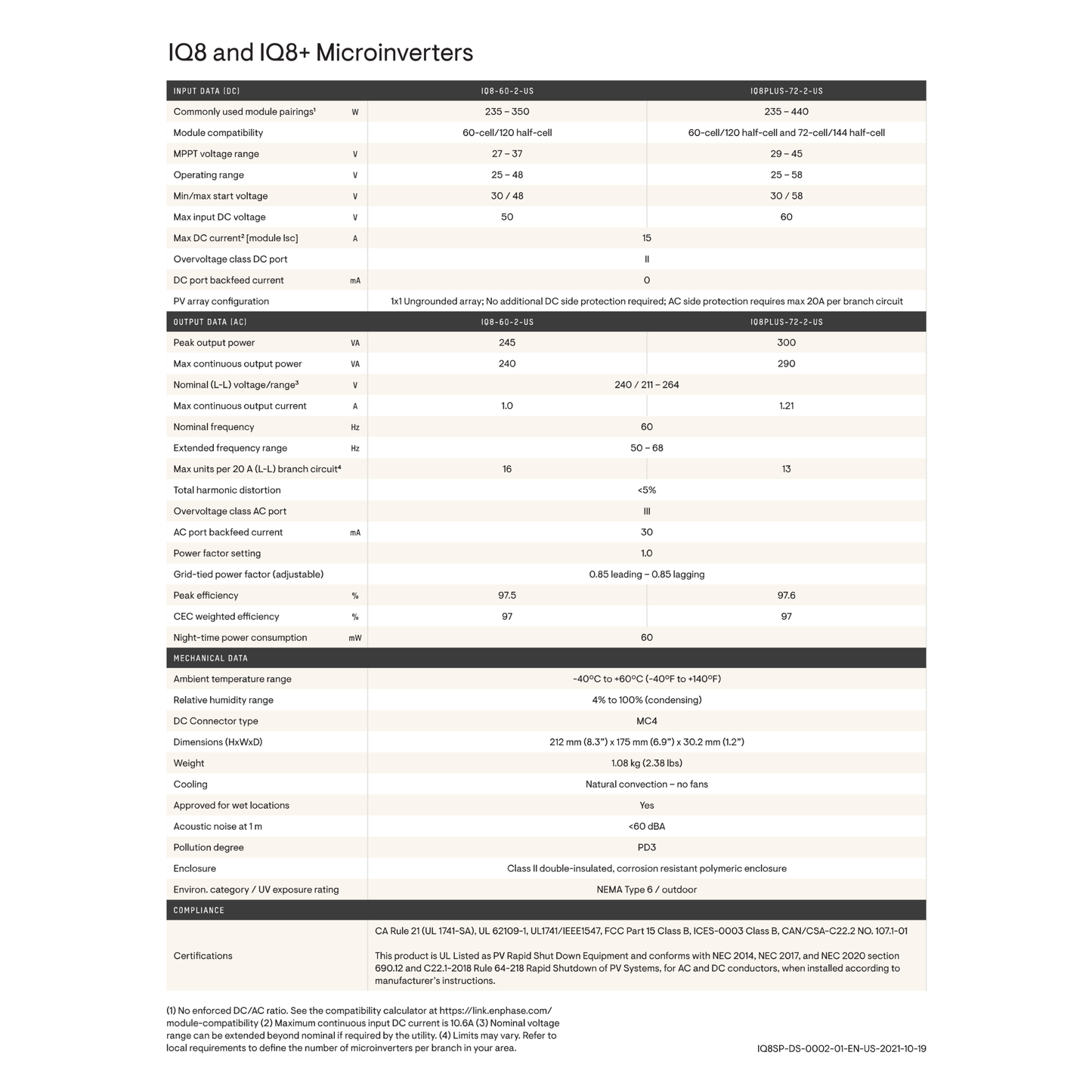

Download Spec Sheet
Designed and tested in compliance with UL 1741, IEEE 1547, and CA Rule 21 standards. Certified to meet FCC Part 15 Class B emissions and NEC rapid shutdown requirements.
