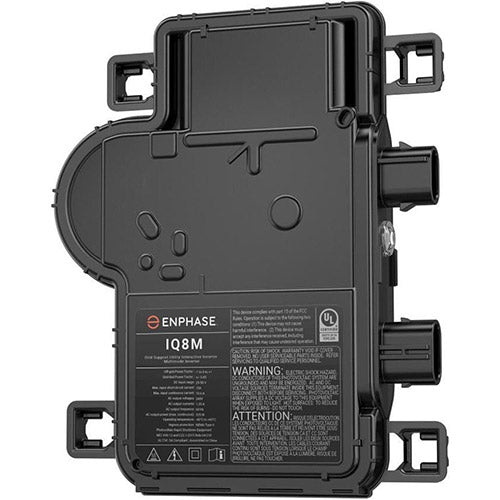

Enphase IQ8M Microinverter (IQ8M-72-2-US)

The Enphase IQ8M microinverter (Part Number: IQ8M-72-2-US) is a premium energy solution compatible with 72-cell PV modules, providing 330VA peak power. This unit is the brain of the semiconductor-based microinverter. It uses its proprietary application specific integrated circuit (ASIC). This chip is built with 55nm technology with high speed digital logic and has super fast response times to grid events, efficiently alleviating constraints on battery sizing for Home Energy Systems. The IQ8M is reliable and easy to convert DC power to AC power efficiently.

This product is supplied with MC4 connectors

• Manufacturer Part Number: IQ8M-72-2-US
• UL Certificate
• Power Output: 330 VA
• MPPT voltage range: 33 - 45 Volts
• Manufacturer Warranty: 25 Years
• Weight: 1.08 kg (2.38 lbs)
• Dimensions: 212 mm (8.3”) x 175 mm (6.9”) x 30.2 mm (1.2”)
• Case Qty: 18
• Pallet Qty: 756
