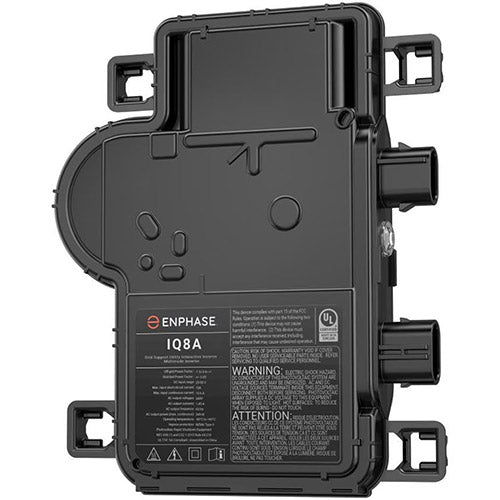

Enphase IQ8A Microinverter (IQ8A-72-M-US)

This product is in the process of transitioning to the SKU: EN-IQ8AC-72-M-US

Enphase IQ8A Microinverter, compatible with 72-cell PV modules, 240V, 349VA peak power, MC4 bulkhead. Swift2+POR variant.

Part of the Enphase Energy System, IQ8 Series Microinverters integrate with the Enphase IQ Battery, Enphase IQ Gateway, and the Enphase App monitoring and analysis software. Connect PV modules quickly and easily to the IQ8 Series Microinverters that has Integrated MC4 connectors. IQ8 Series Microinverters are UL Listed as PV Rapid Shut Down Equipment and conform with various regulations, when installed according to manufacturer’s instructions.
This product is supplied with MC4 connectors

Technical Benefits:

• Manufacturer Part Number: IQ8A-72-M-US
• Power Output: 349 VA
• Commonly used module pairings: 295 – 500 Watts
• Manufacturer Warranty: 25 Years
• Performance Warranty: 25
• Weight: 1.1 kg (2.43 lbs)
• Dimensions (H x W x D): 212 mm (8.3”) x 175 mm (6.9”) x 30.2 mm (1.2”)
•  IQ8A support split phase 240V installation only
• Peak efficiency: 97.6%
• Approved for wet locations
• Pollution degree: PD3
• NEMA Type 6 / outdoor
