Description

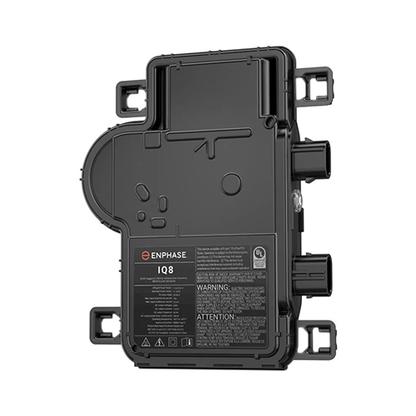

Enphase Series Mircoinverter for 235-350W Modules
IQ8 Microinverters are the industry’s first microgrid forming, software defined microinverters with split-phase power conversion capability to convert DC power to AC power efficiently. The brain of the semiconductor-based microinverter is our proprietary application-specific integrated circuit (ASIC) which enables the microinverter to operate in grid-tied or off-grid modes. This chip is built in advanced 55nm technology with high speed digital logic and has super-fast response times to changing loads and grid events, alleviating constraints on battery sizing for home energy systems.
Technical Specifications:
- Manufacturer Warranty: 10 Years
- Shipping Weight: 2.38 lb
- Shipping Dimensions: 8.3 x 6.9 x 1.2 in
- Peak Output Power: 245 VA
- Nominal Voltage: 240 VAC
- Peak Efficiency: ~97–97.5%
-
Downloads

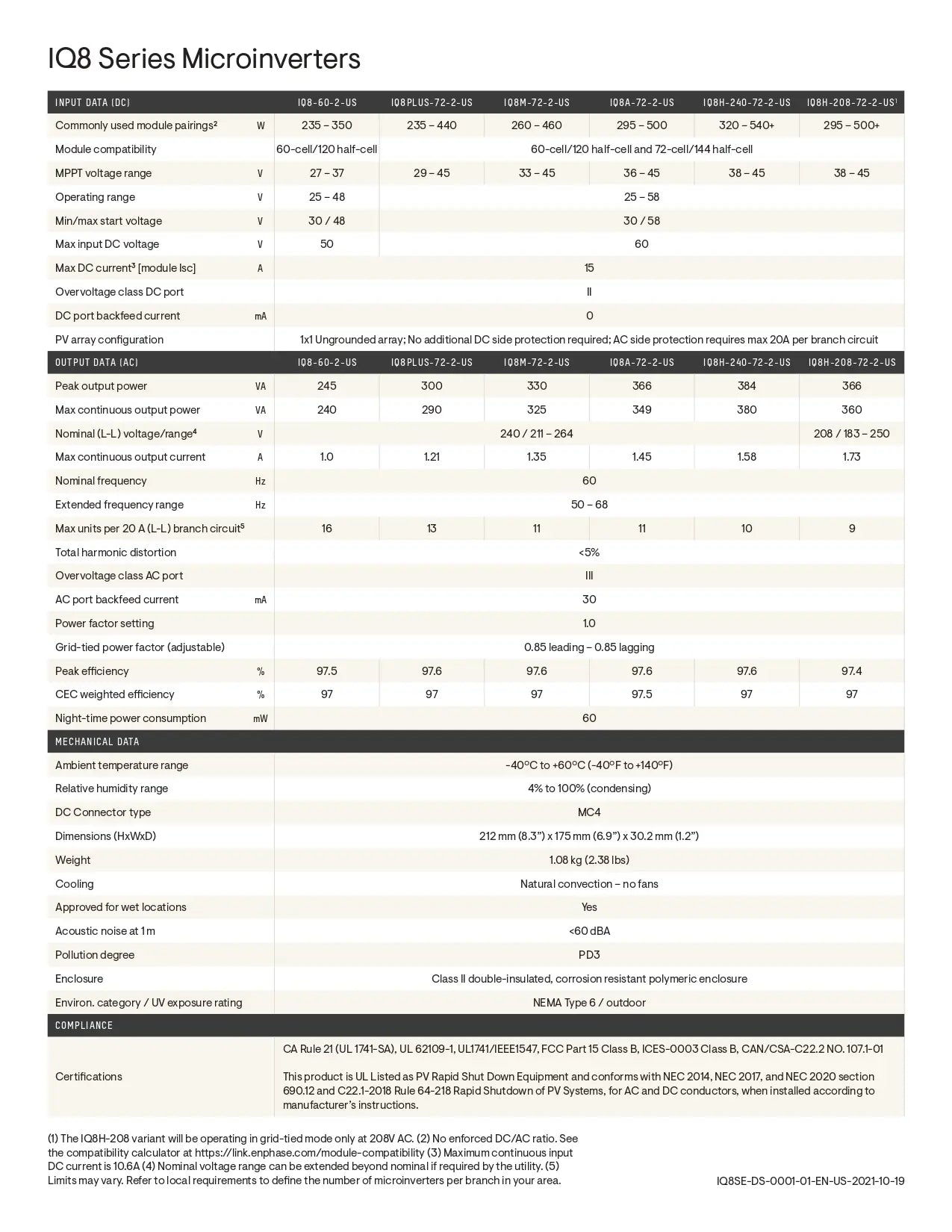

Datasheet
✔️ Datasheet
Quick Installation Guide
No Quick Installation guide available. Email support@solux.energy for file request.
Warranty
No Warranty file resource available. Email support@solux.energy for file request.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
