Description

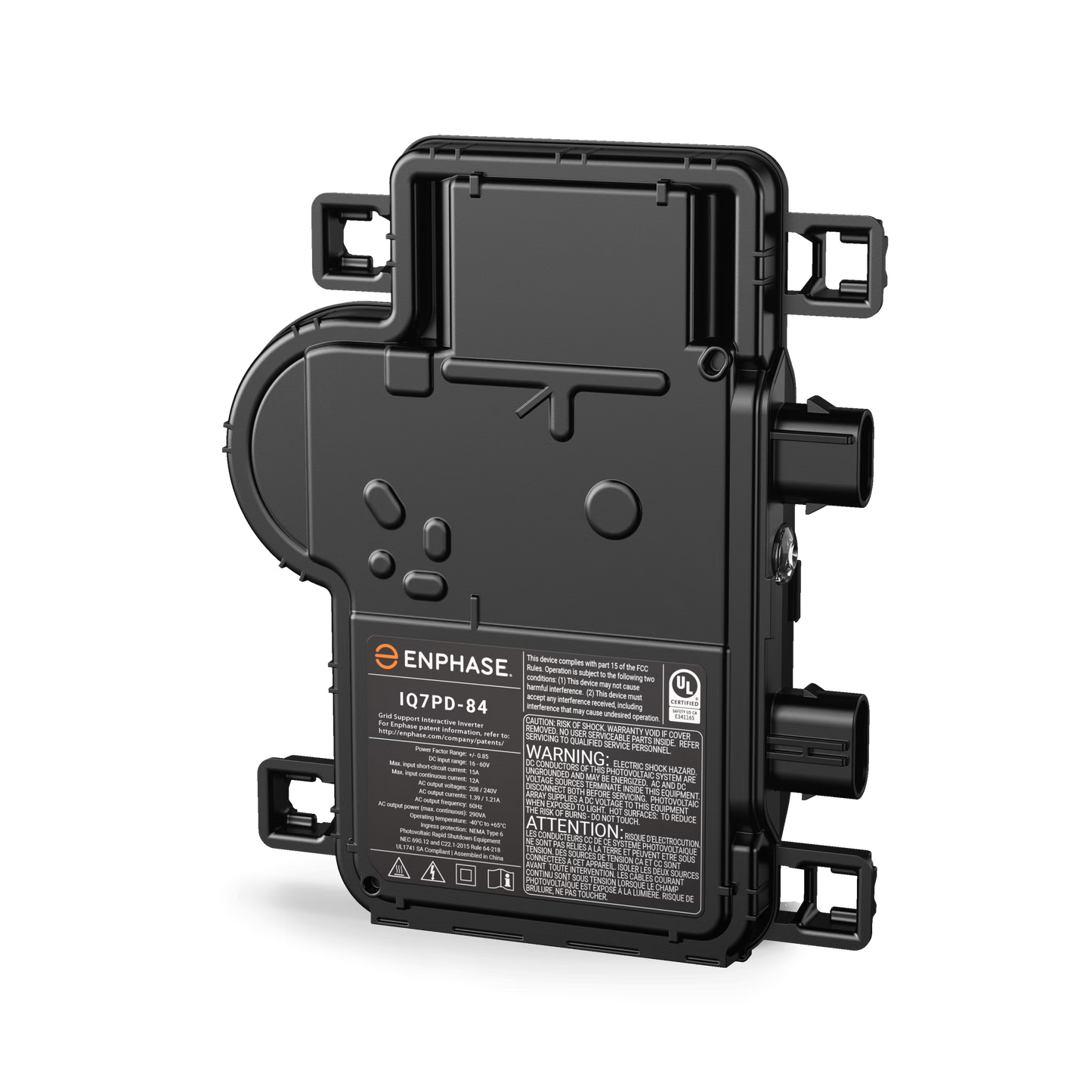

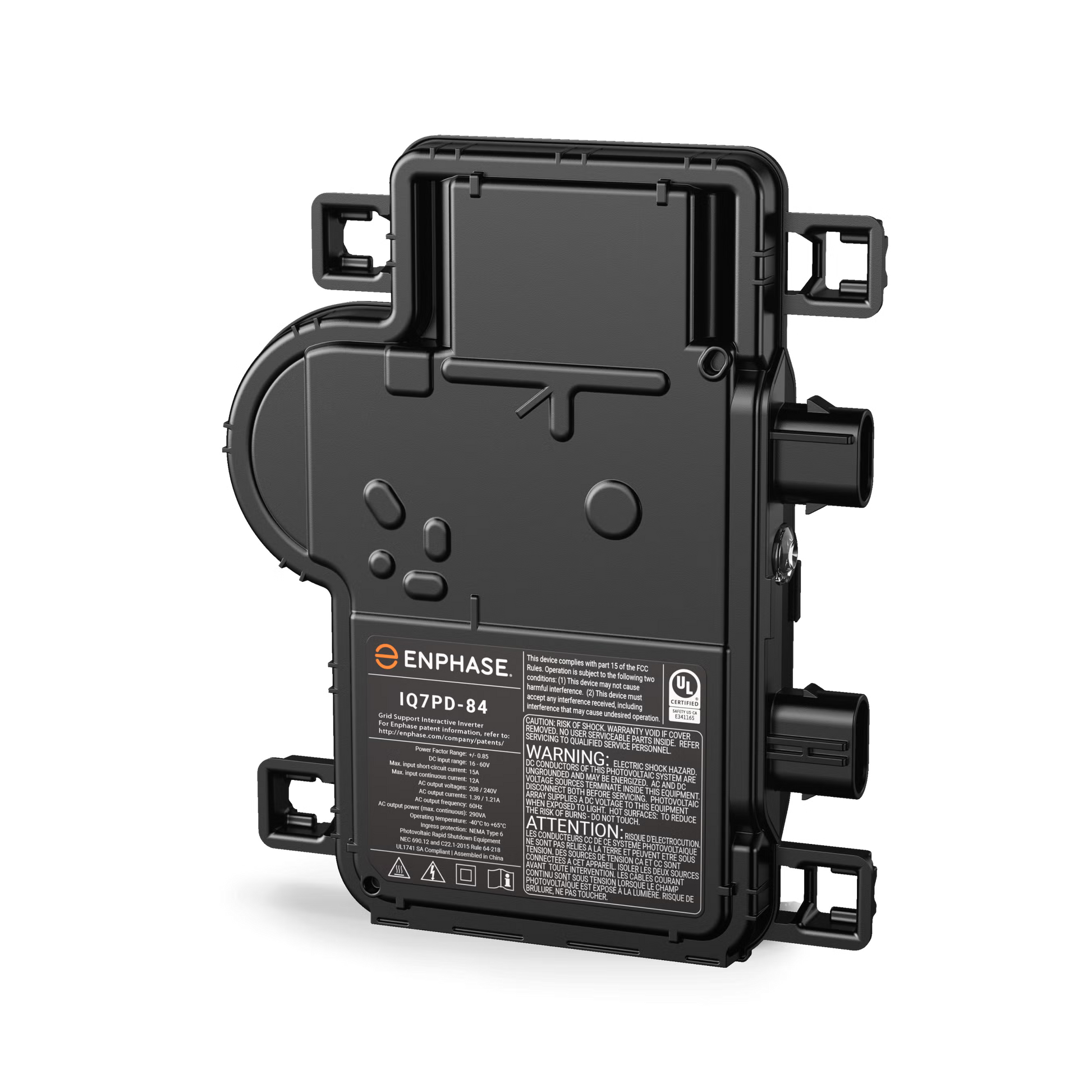

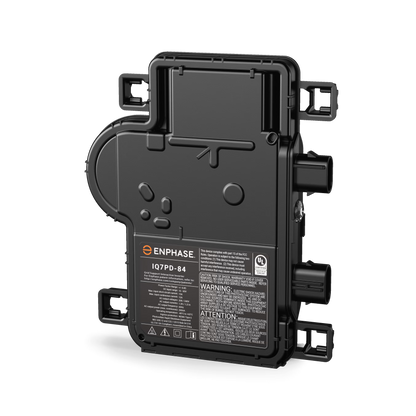

Enphase IQ7PD-84-2-US: The Industry Standard for Legacy System Upgrades
The Enphase IQ7PD-84-2-US is a specialized high-voltage microinverter engineered specifically for Full Site Upgrades. While capable of supporting modern 72-cell and 84-cell modules, it is most widely used as the definitive solution for replacing aging M175, M190, M210, and D380 units.
Why the IQ7PD-84 is the Professional Choice?
The IQ7PD-84-2-US is more than just an inverter; it’s a reliability powerhouse. By choosing the IQ 84 architecture, you benefit from:
- Restore & Modernize: Seamlessly replaces failed 2nd-generation microinverters, bringing legacy systems up to 7th-generation reliability and performance standards.
- IQ Ecosystem Ready: Once installed, your system becomes compatible with IQ Batteries and the IQ Gateway, allowing for future-proof energy storage expansion.
- High-Voltage Efficiency: With a peak output of 220 VA and a 31V–50V MPPT range, it is one of the few microinverters capable of handling the unique voltage curves of legacy 84-cell PV modules.
- Simplified Cabling: Transitions your array from the bulky 4-wire Engage cabling to the lightweight, 2-wire IQ Cable system, reducing rooftop weight and points of failure.
- Superior Warranty: Backed by Enphase's industry-leading 25-year limited warranty, providing peace of mind far beyond the original system's lifespan.

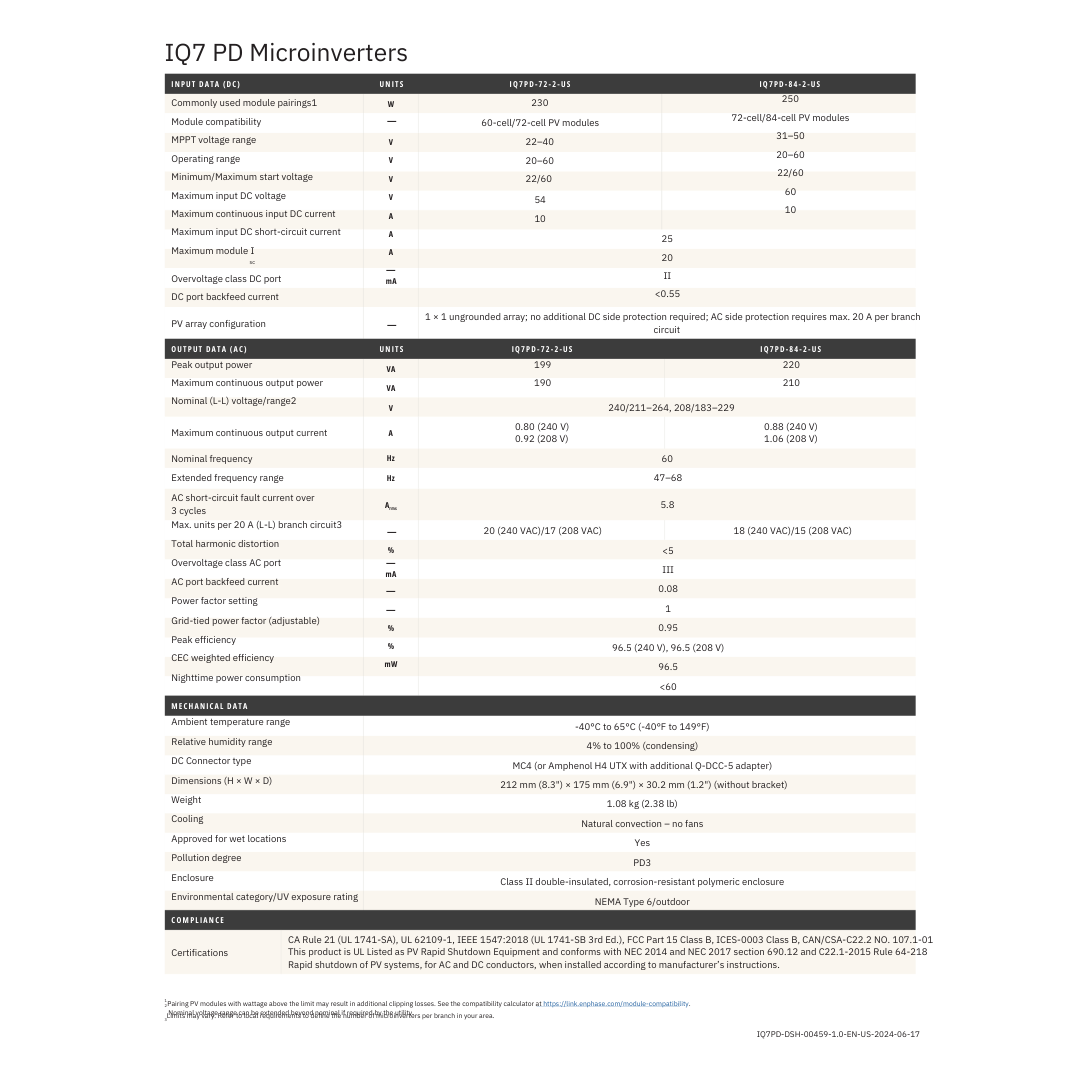

Technical Specifications:
Engineered to meet the most stringent safety codes (NEC 2014, 2017, and 2020), this microinverter is remotely updatable to meet evolving grid profiles.
- Peak output power: 220 VA
- Module pairing: 200–290 W
- Maximum continuous output power: 210 VA
- Operating range: 20–60 V
- Dimension (L x W x H): 212 mm x 175 mm x 30 mm
- Weight: 2.38 lbs
- 96.5% CEC efficiency
- Faster installation with improved, lighter two-wire cabling
- Built-in rapid shutdown compliant (NEC 2014, 2017, 2020)
- Complies with advanced grid support, voltage, and frequency ride-through requirements
- Remotely updates to respond to changing grid requirements
- Configurable for variable grid profiles
- More than a million hours of testing
- Class II double-insulated enclosure
-
Downloads
Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Warranty
25 Years Warranty
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
