Description

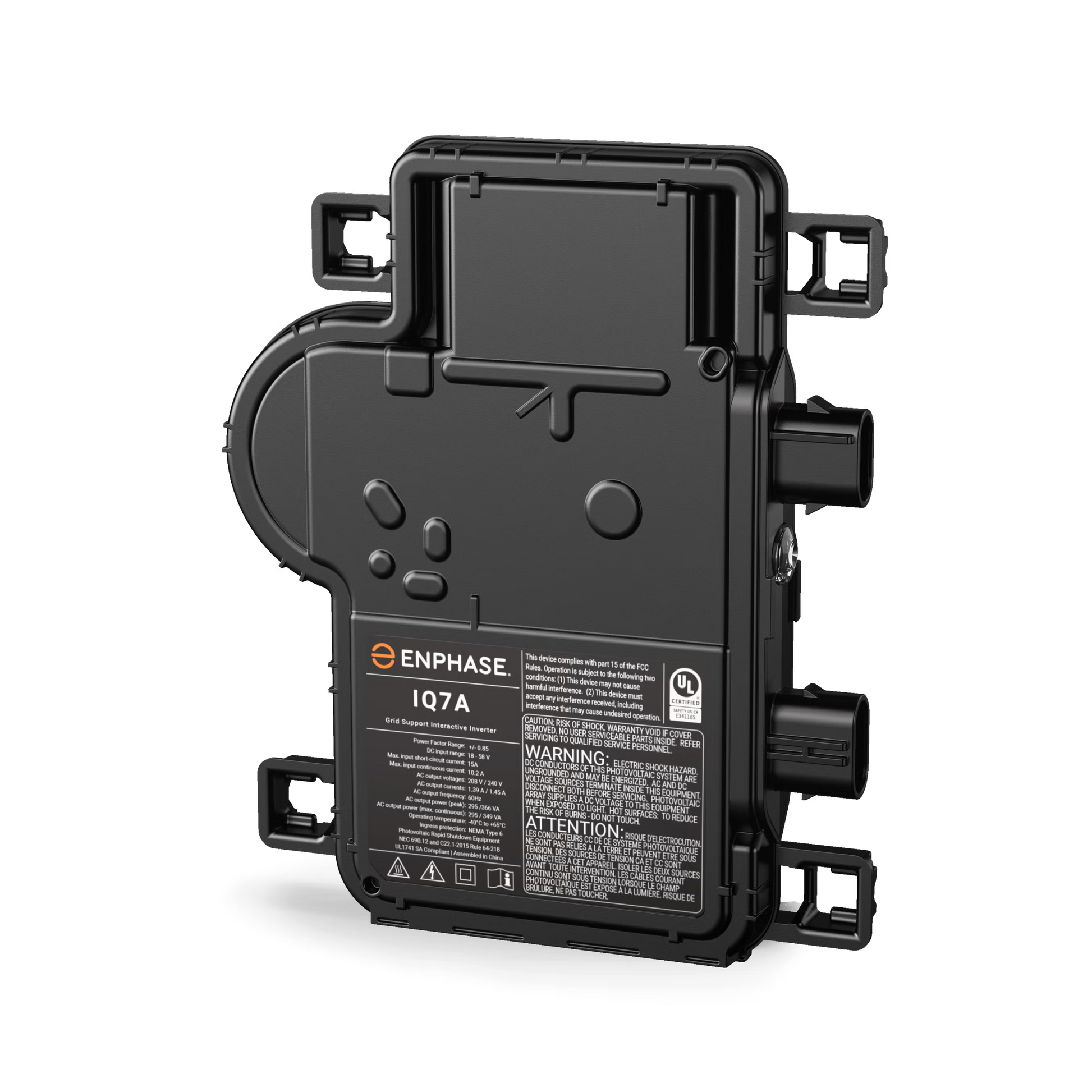

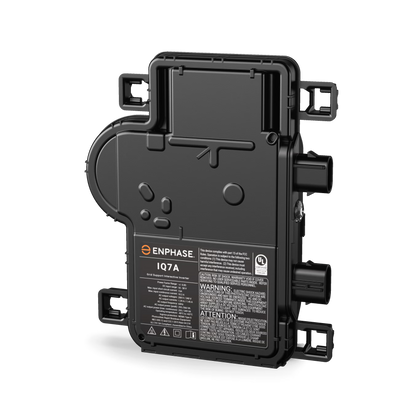

Enphase IQ7A Microinverter
The high-powered Enphase IQ7A Microinverter dramatically simplifies the installation process while achieving high system efficiency for systems with 60-cell, 66-cell, and 72-cell modules. Part of the Enphase Energy System, the IQ7A Microinverter integrates with the IQ Gateway, and the Enphase App.
Key Benefits
- 97% CEC efficiency
- Faster installation with improved, lighter two-wire cabling
- Built-in rapid shutdown compliant (NEC 2014, 2017, 2020)
- Complies with advanced grid support, voltage, and frequency ride-through requirements
- Remotely updates to respond to changing grid requirements
- Configurable for variable grid profiles
- More than a million hours of testing
- Class II double-insulated enclosure
- UL Listed
- Meets CA Rule 21 (UL 1741-SA) and IEEE 1547:2018 (UL 1741-SB, 3rd ed.)
- 12-year limited warranty
Technical Specifications:
- Peak output power: 366 VA
- Module pairing: 295–460 W
- Maximum continuous output power: 349 VA
- Operating range: 18–58 V
- Dimensions (HxWxD): 30 mm x 175 mm x 212 mm
- Weight: 2.381 lbs
-
Downloads

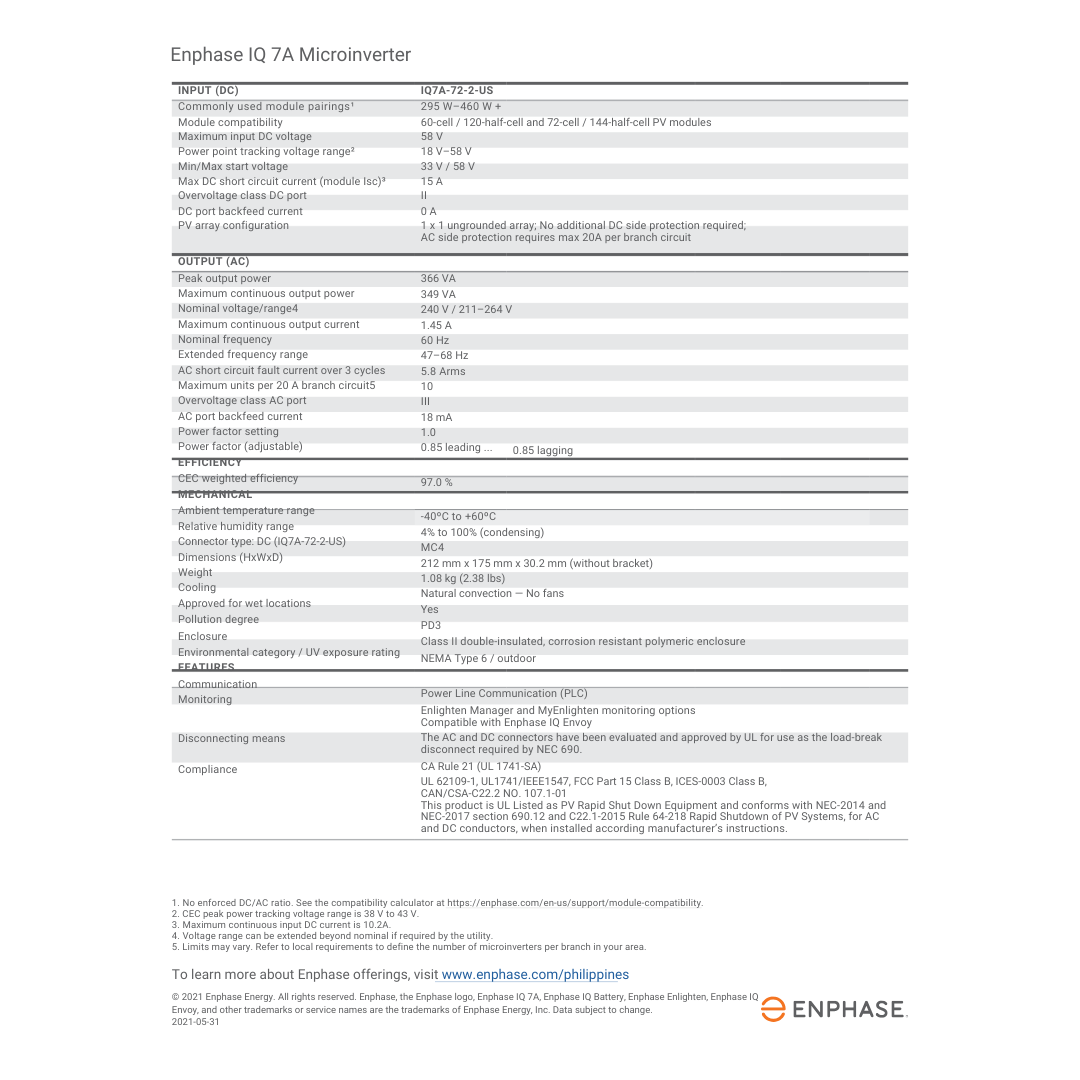

Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Warranty
12 Years Warranty
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
