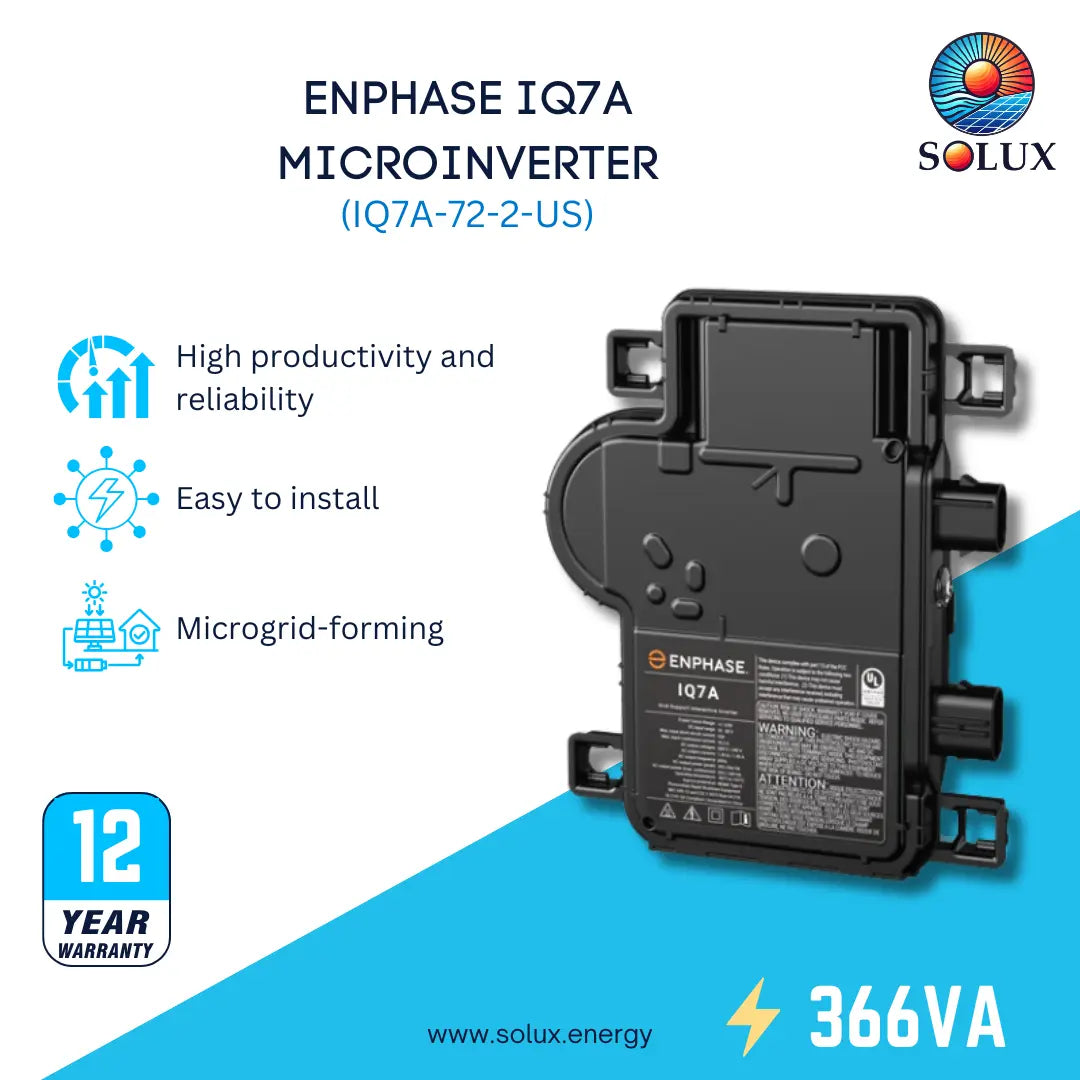

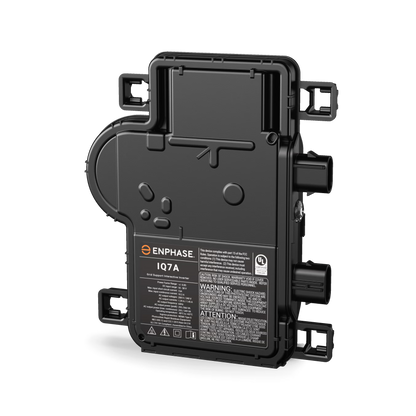

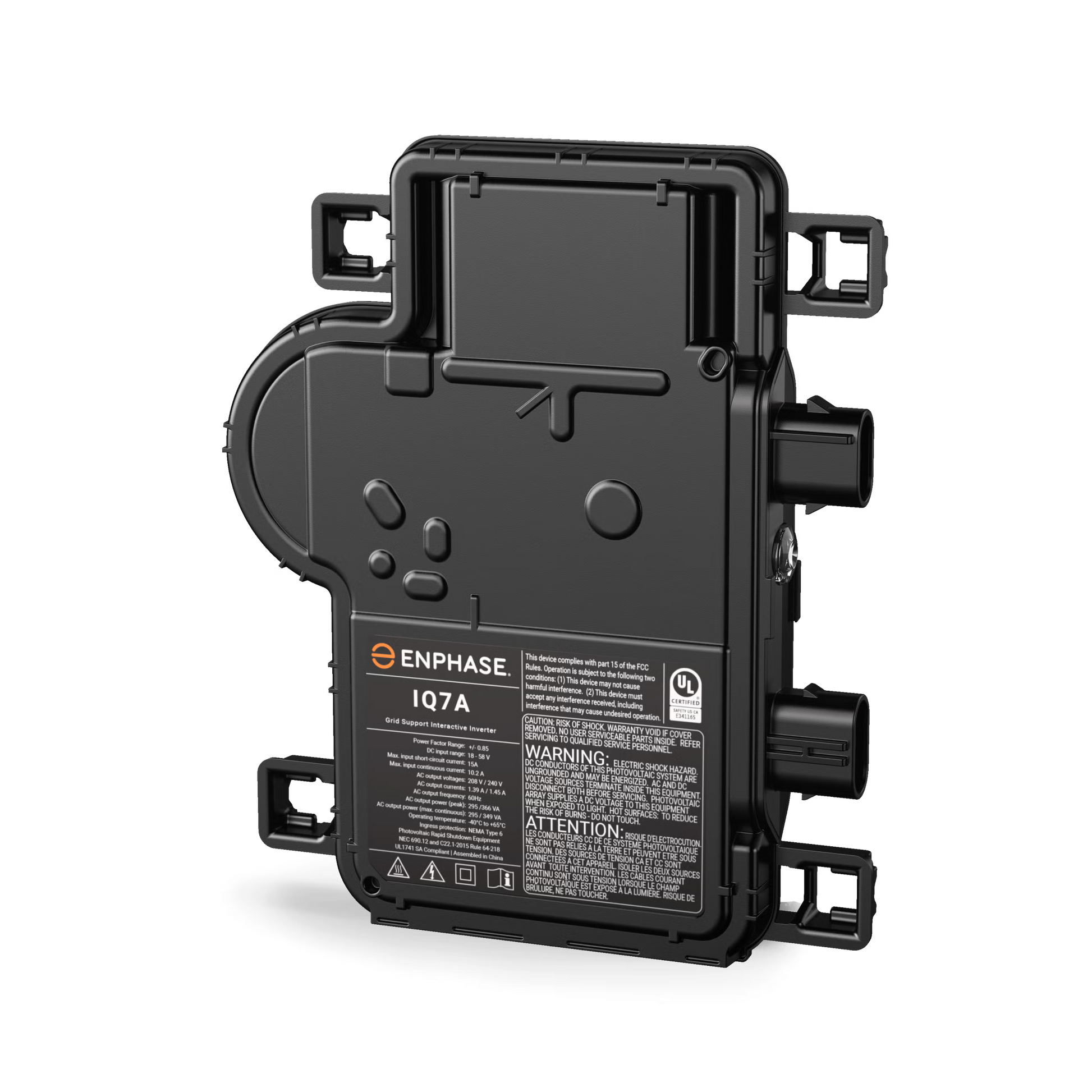

Enphase IQ7A Microinverter (IQ7A-72-2-US)

Enphase IQ7A Microinverter (IQ7A-72-2-US)

The high-powered Enphase IQ7A Microinverter dramatically simplifies the installation process while achieving high system efficiency for systems with 60-cell, 66-cell, and 72-cell modules. Part of the Enphase Energy System, the IQ7A Microinverter integrates with the IQ Gateway and the Enphase App for seamless monitoring and management.

Key Benefits

• Features a 97.0% CEC weighted efficiency.
• Faster installation with improved, lighter two-wire cabling
• Built-in rapid shutdown compliant (NEC 2014, 2017, 2020)
• Complies with advanced grid support, voltage, and frequency ride-through requirements
• Remotely updates to respond to changing grid requirements
• Configurable for variable grid profiles
• More than a million hours of testing
• Class II double-insulated enclosure
• UL Listed
• Meets CA Rule 21 (UL 1741-SA) and IEEE 1547:2018 (UL 1741-SB, 3rd ed.)
• 12-year limited warranty

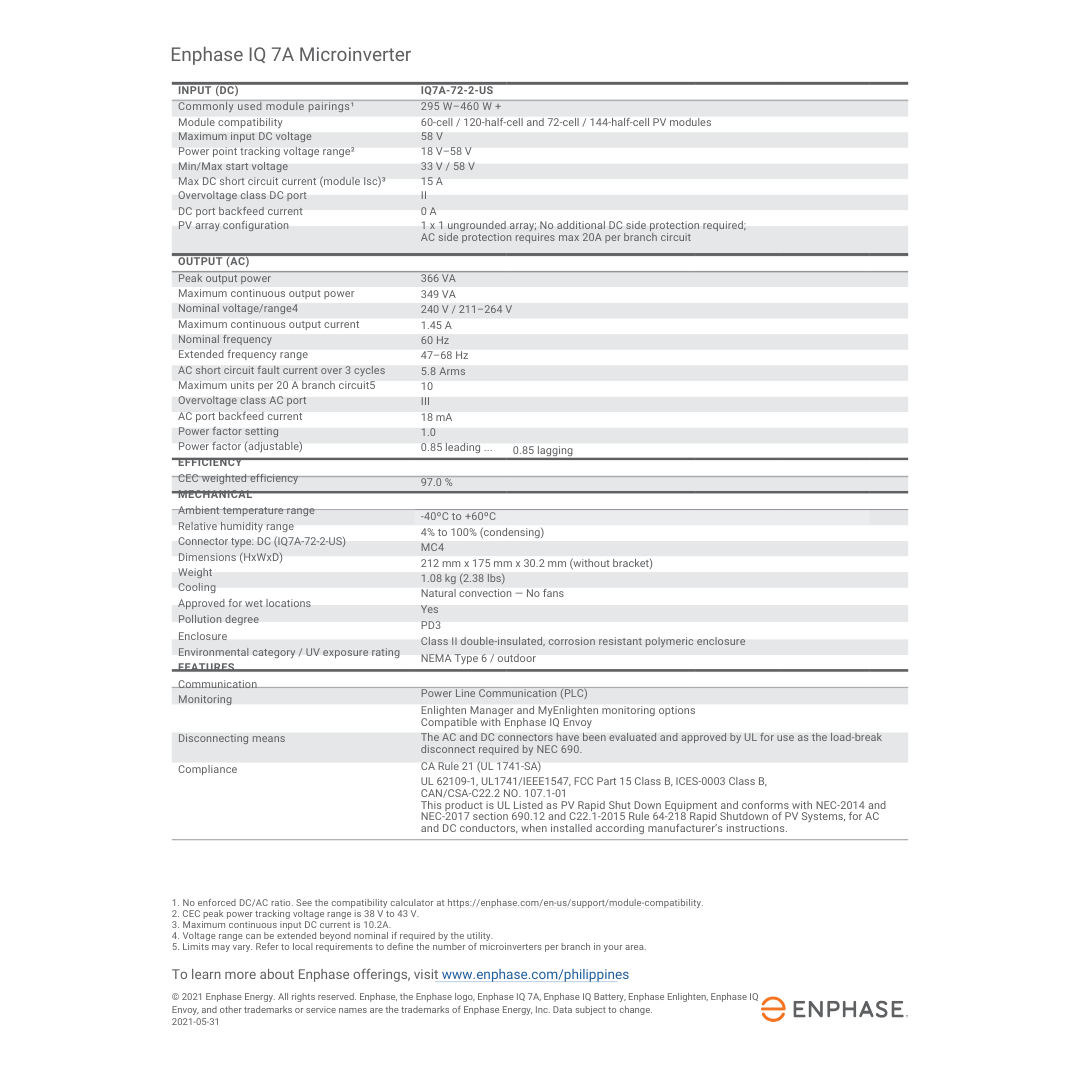

Technical Specifications:

• Peak output power: 366 VA
• Module pairing: 295–460 W
• Maximum continuous output power: 349 VA
• Operating range: 18–58 V
• Dimensions (H x W x D): 212 mm x 175 mm x 30.2 mm (without bracket)
• Weight: 1.08 kg (2.38 lbs)
• To avoid returns, verify modules do not exceed 58V Max DC Input, ensure the use of an Enphase IQ Gateway for monitoring, and use only Enphase IQ Series Cabling.
