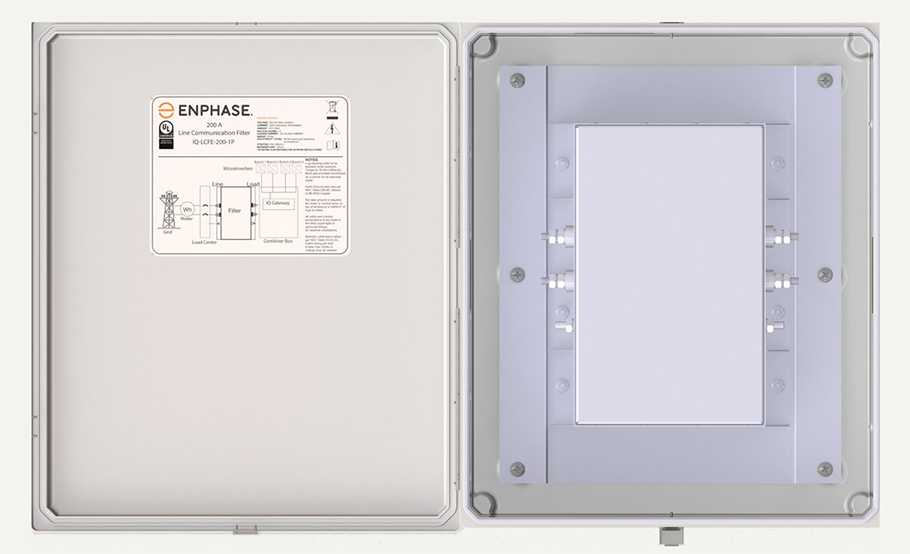

Enphase IQ-LCFE-200-1P 200A Single-Phase Line Communication Filter

Enphase 200A Single-Phase Line Communication Filter

The Enphase IQ-LCFE-200-1P is a single-phase line communication filter designed for Enphase solar energy systems. It isolates Power Line Communication (PLC) signals between electrical circuits to reduce electrical noise and improve data transmission reliability. By preventing high-frequency noise from interfering with system communications, this Enphase line communication filter ensures steady performance across grid-connected energy management setups.

Built for heavy-duty setups, this filter handles up to 160 A of continuous electric current at up to 300 VAC. The heavy metal case is IP66 and NEMA 4 rated to keep out rain and dust in temperatures from -40°F to 122°F.

Technical Specifications:

• Manufacturer Part Number: IQ-LCFE-200-1P

• Manufacturer: Enphase
• Maximum current per line: 160 A continuous (200 A protective relay)
• Maximum voltage: 300 VAC + 10%

• Frequency: 60 Hz

• Maximum: DCR 1.5 mΩ

• Isolation at 110 kHz: 60 db

• Ambient temperature range: -40°C to 50°C (-40°F to 122°F)

• IP rating: IP66, NEMA4

• Weight: 45 kg (99 lb)

• Dimensions (h × w × d): 609.6 mm × 508 mm × 203.2 mm (24" × 20" × 8")

• Certification: UL 1741

• Terminal style/size: M10 Stud
