Description
Enphase 3-Phase Power Line Communication (PLC) Filter
Stop communication dropouts and keep your solar monitoring network online. The Enphase IQ-LCF-040-3P is a heavy-duty 3-phase Power Line Communication (PLC) filter designed to block electrical noise and prevent signal interference between Enphase IQ7 and IQ8 microinverters and the Enphase IQ Gateway.
In commercial setups or residential sites with heavy electrical loads, background line noise can disrupt solar data traffic. The IQ-LCF-040-3P acts as a dedicated communication barrier, isolating your PLC network so telemetry data stays accurate and uninterrupted.
When to Use the PLC Filter
- Multi-Gateway Sites: When multiple Enphase IQ Gateways share a single utility transformer.
- High Electrical Noise Environments: Near heavy machinery, motors, variable frequency drives (VFDs), or large HVAC systems.
- Dropped Signal Troubleshooting: To resolve missing microinverter data and communication errors in the Enphase Enlighten app
Technical Specifications:
- Manufacturer's Part #: IQ-LCF-040-3P
- Manufacturer: Enphase
- Max Voltage: 300 VAC
- Max Current (at ambient temp): 40 A (at 149°F)
- Frequency: 50 and 60 Hz
- Ambient temperature range: -40°F to 149°F
- Compatibility: IQ8 Series Microinverters, IQ7 Series Microinverters, IQ Gateway
- Weight: 4.84 lbs (2.2 kg)
- Dimensions: 213.5 mm x 48.2 mm x 90 mm (8.4" × 1.90" × 3.54")
- Warranty: 2-year limited warranty
-
Resources

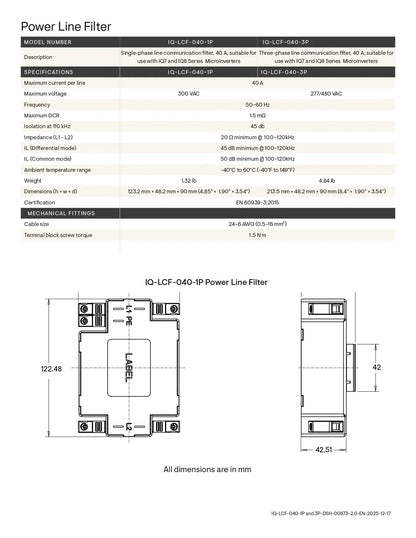

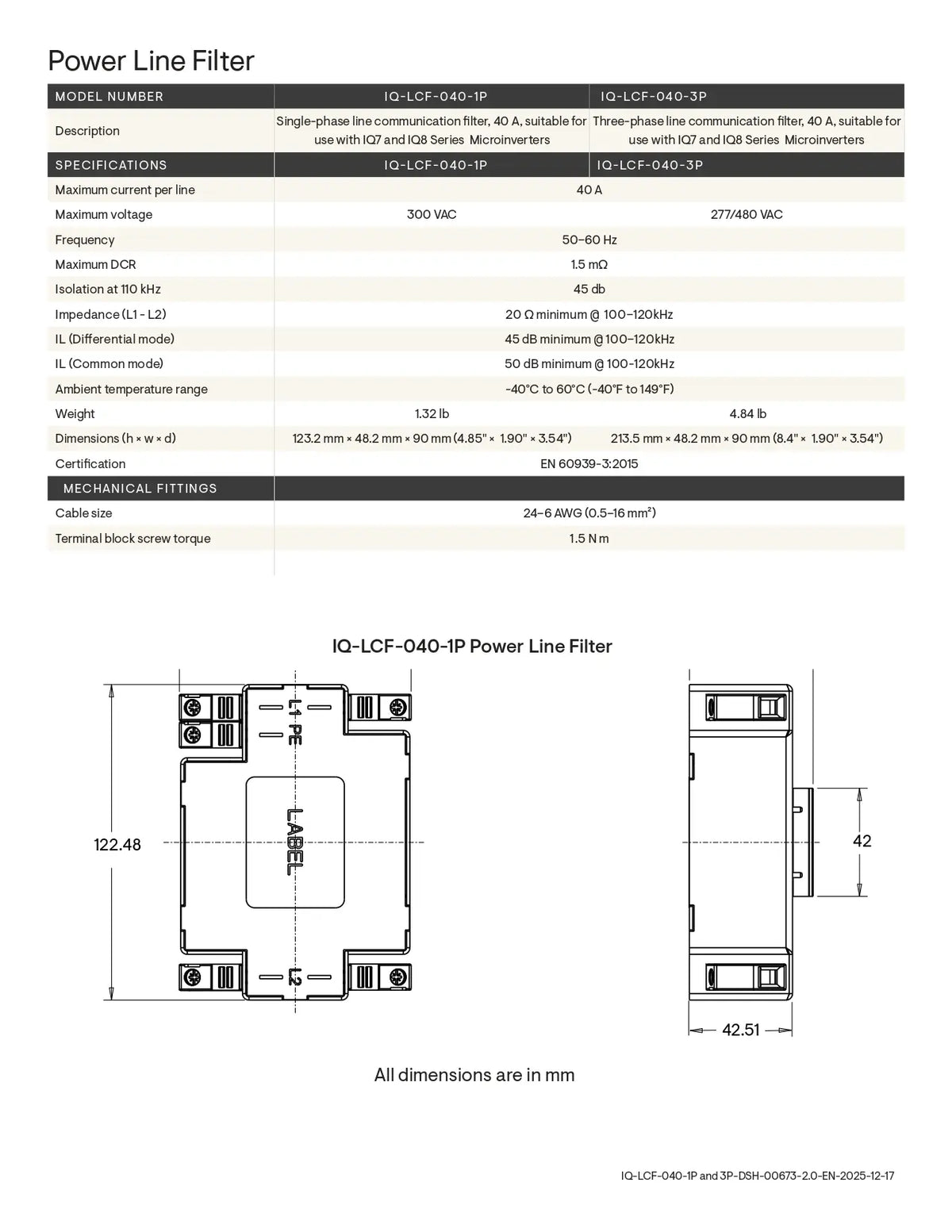

Datasheet
✔️ Download Datasheet
Quick Installation Guide
Warranty
No warranty file resource available. Email support@solux.energy for file request.
