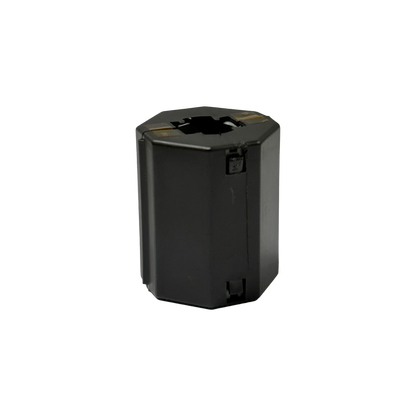

Enphase IQ-FERR-030 30A Gapped Ferrite

$224.01 USD
$224.01 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Compatibility: IQ8 Series Microinverters, IQ7 Series Microinverters, IQ Gateway
✔️ What's in the box: 10 Gapped Ferrites

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.

Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

View Product Details
Enphase
  • Description

    Enphase Gapped Ferrite Core Noise Filter (30A, 250VAC)

    The Enphase IQ-FERR-030 Gapped Ferrite Core isolates and filters electrical noise from Power Line Communication (PLC) signals between IQ Series Microinverters and the IQ Gateway. Installed on system conductors, this passive component prevents household loads and appliances from suppressing the 110 kHz communication signal. Pre-attached Kapton tape layers stabilize core inductance across varying load currents to maintain stable system monitoring.

    Encapsulated in a Polypropylene-V0 flame-retardant case, the core withstands harsh electrical environments inside distribution sub-boards and load centers. The gapped magnetic design maintains signal isolation up to its 30-amp maximum current threshold on 250 VAC lines. Compliant with RoHS Directive 2015/863/EU, it prevents communication dropouts across single-phase, split-phase, and three-phase Enphase installations.

    Specifications:

    • Max. current: 30 A
    • Max. voltage: 250 VAC + 10%
    • Case material: Polypropylene-V0
    • RoHS Directive 2015/863/EU
    • Length: 37.50 mm
    • Width: 29.5 mm
    • Height: 28.5 mm
    • Weight: 2.2 lbs
  • Resources

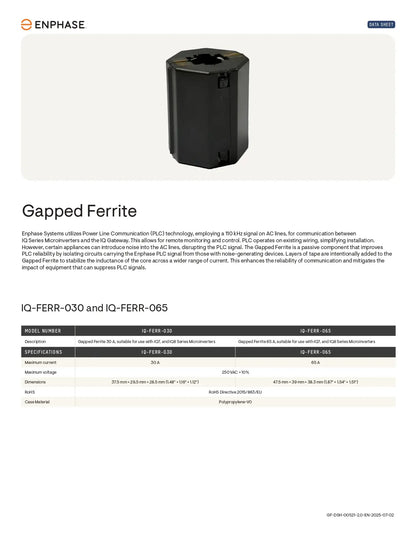

    Datasheet

    ✔️ Download Datasheet

    Quick Installation Guide

    ✔️ Download Start Guide


    Warranty

    No warranty file resource available. Email support@solux.energy for file request.

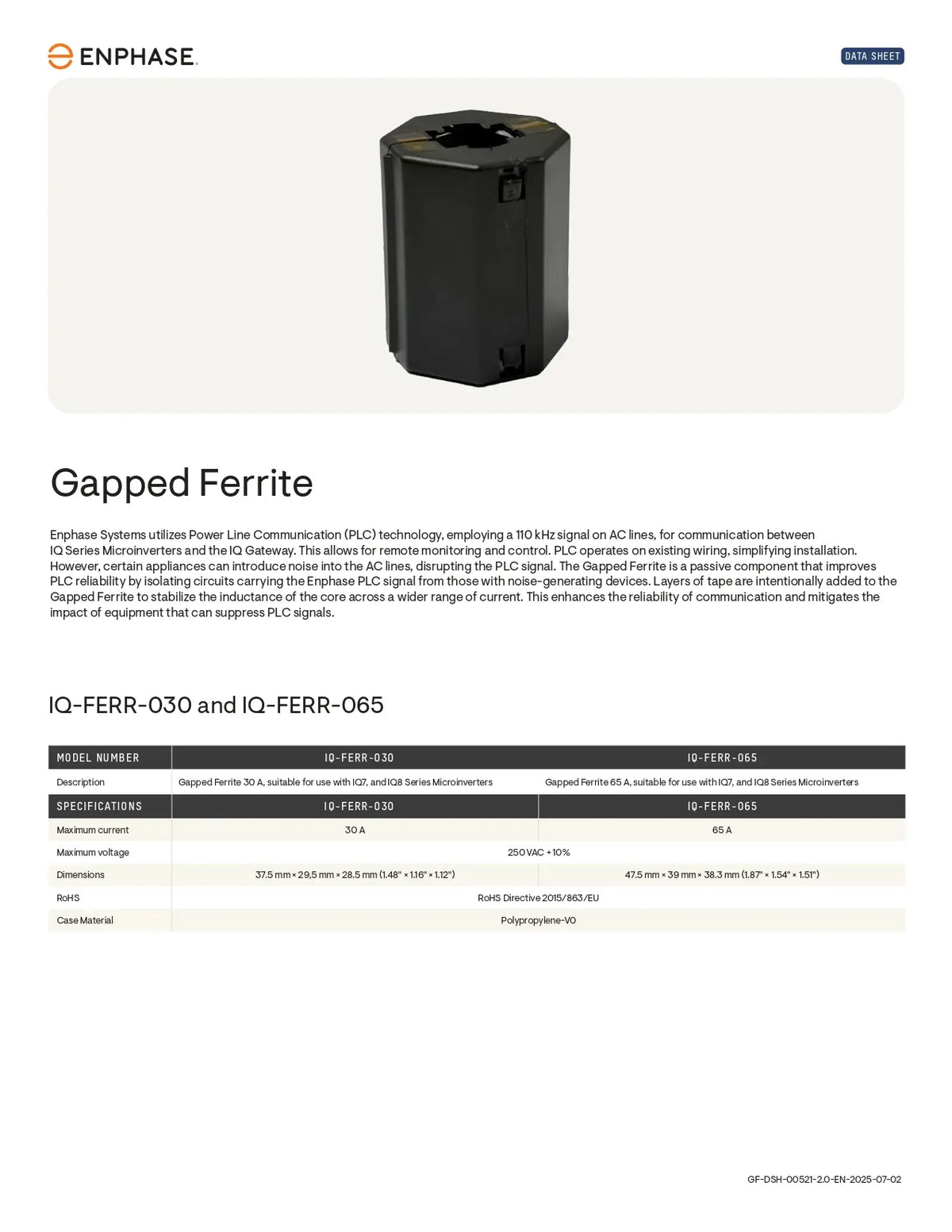

Download Spec Sheet of Enphase Gapped Ferrite 30 A
