Description

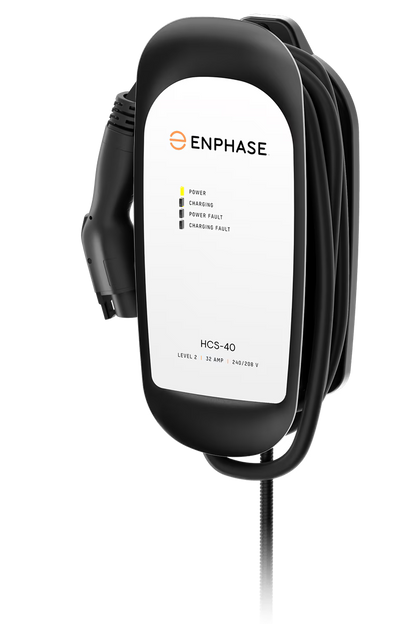

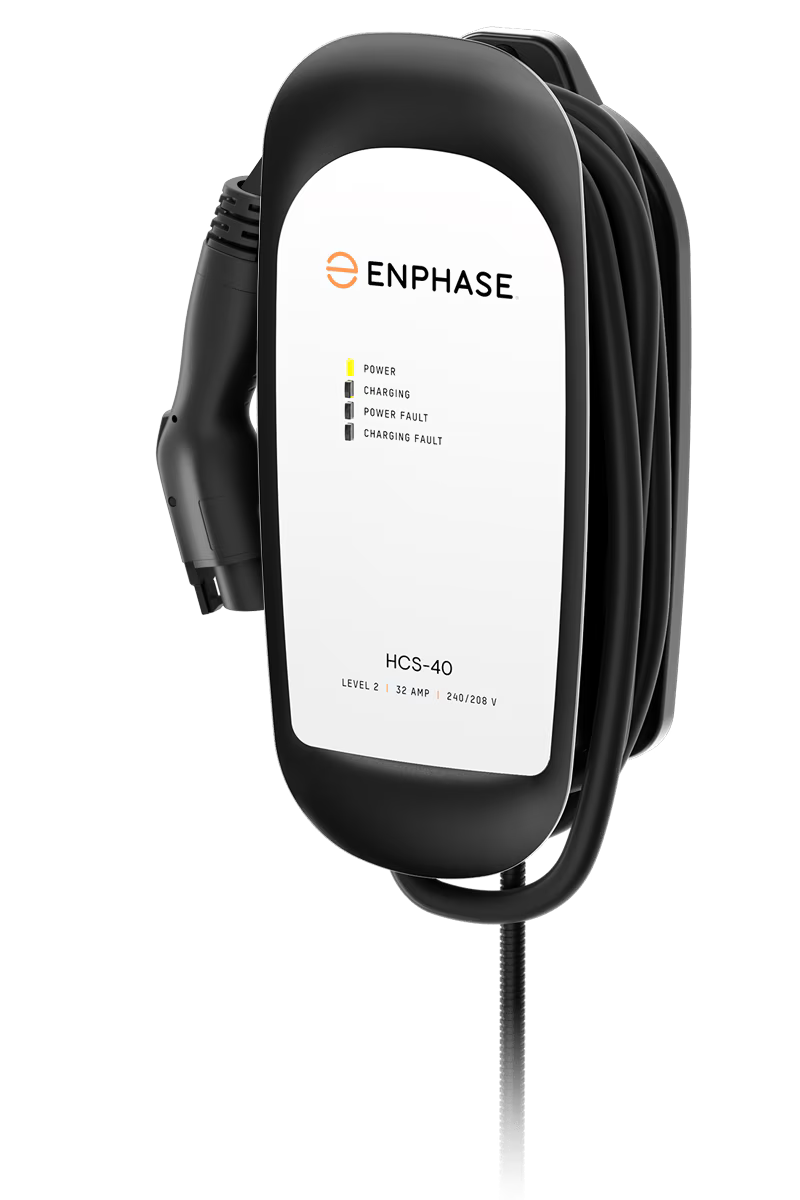

Enphase IQ-EVSE-NA-1040-0100-0100 10AWG Hardwired IQ 40 EV Charger 32A 240Vac
The 25-foot-long charging cable allows for flexible installation and ease-of-use and can be neatly stowed away using the integrated cable wrap and wall-mounted J1772 holster.

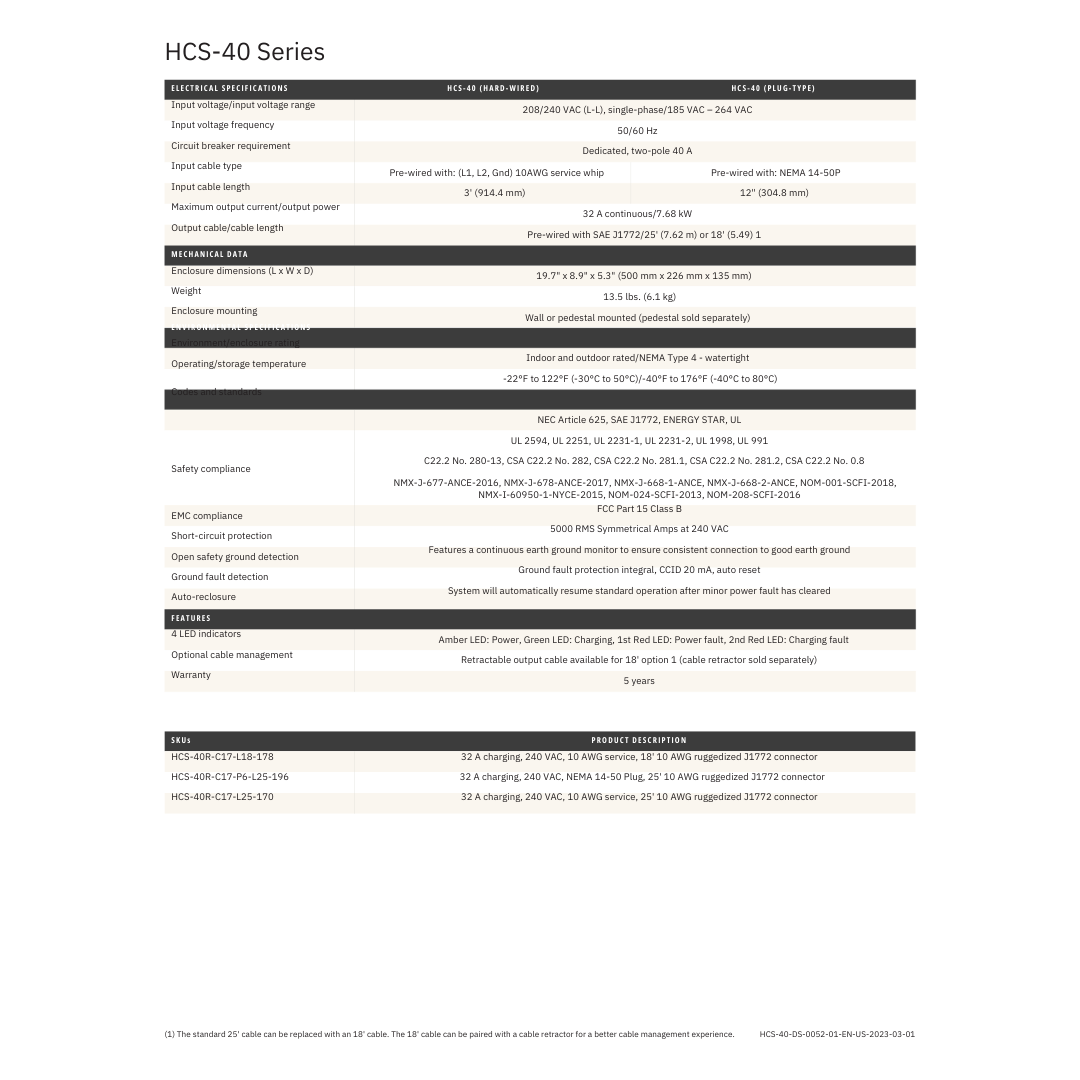

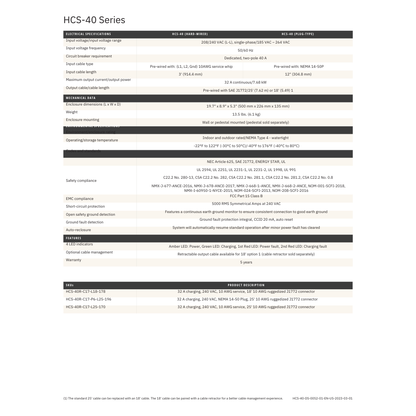

The tough NEMA 4 rated enclosure ensures you can install this unit indoors or outdoors with confidence. Ruggedized charging cables also help the charger to resist everyday wear-and-tear.Technical Specifications
- Manufacturer Part #: IQ-EVSE-NA-1040-0100-0100
- Item Weight: 22.5 lb
- Dimensions (LxWxH): 23 x 20 x 10 inches
- Input voltage/input voltage range: 208/240 VAC (L-L), single-phase/185 VAC – 264 VAC
- Input voltage frequency: 50/60 Hz
- Circuit breaker requirement: Dedicated, two-pole 40 A
- Maximum output current/output power: 32 A continuous/7.68 kW
- Output cable/cable length : Pre-wired with SAE J1772/25' (7.62 m) or 18' (5.49) 1
- Enclosure dimensions (L x W x D): 19.7" x 8.9" x 5.3" (500 mm x 226 mm x 135 mm)
- Weight: 13.5 lbs. (6.1 kg)
- Enclosure mounting: Wall or pedestal mounted (pedestal sold separately
-
