SOLRENVIEW MONITORING WEATHER STATION

SOLRENVIEW MONITORING WEATHER STATION

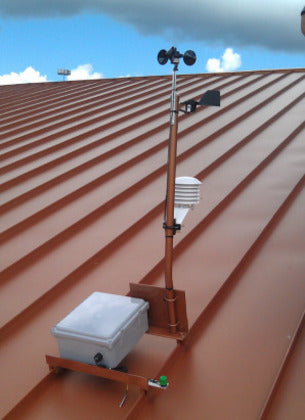

The real-time weather station allows customers to view accurate readings for crucial environmental information. The weather station contains a solar irradiance sensor and temperature sensors for ambient and module measurements. Wind speed and direction sensors are options that may be added to the weather station. The weather station is a great educational tool and is compatible with many third-party monitoring systems. The SolrenViewTM Weather Station is compliant with the RS-485 SunSpec Environmental Sensor System.

Specifications:

• Manufacturer Part Number: SRV-WTHR
• Product Type: Basic solar weather monitoring station

Mechanical:

• Enclosure Rating: NEMA 4X
• Enclosure Dimensions (H × W × D): 12 × 10 × 4 inches (304.8 × 254 × 101.6 mm)
• Enclosure Operating Temperature: −40°F to +131°F (−40°C to +55°C)
• Solar Irradiance Sensor Repeatability: ±1%
• Ambient Temperature Sensor Range: −40°F to +257°F (−40°C to +125°C)
• Module Temperature Sensor Range: −40°F to +257°F (−40°C to +125°C)
• Temperature Sensor Accuracy: ±1°C
