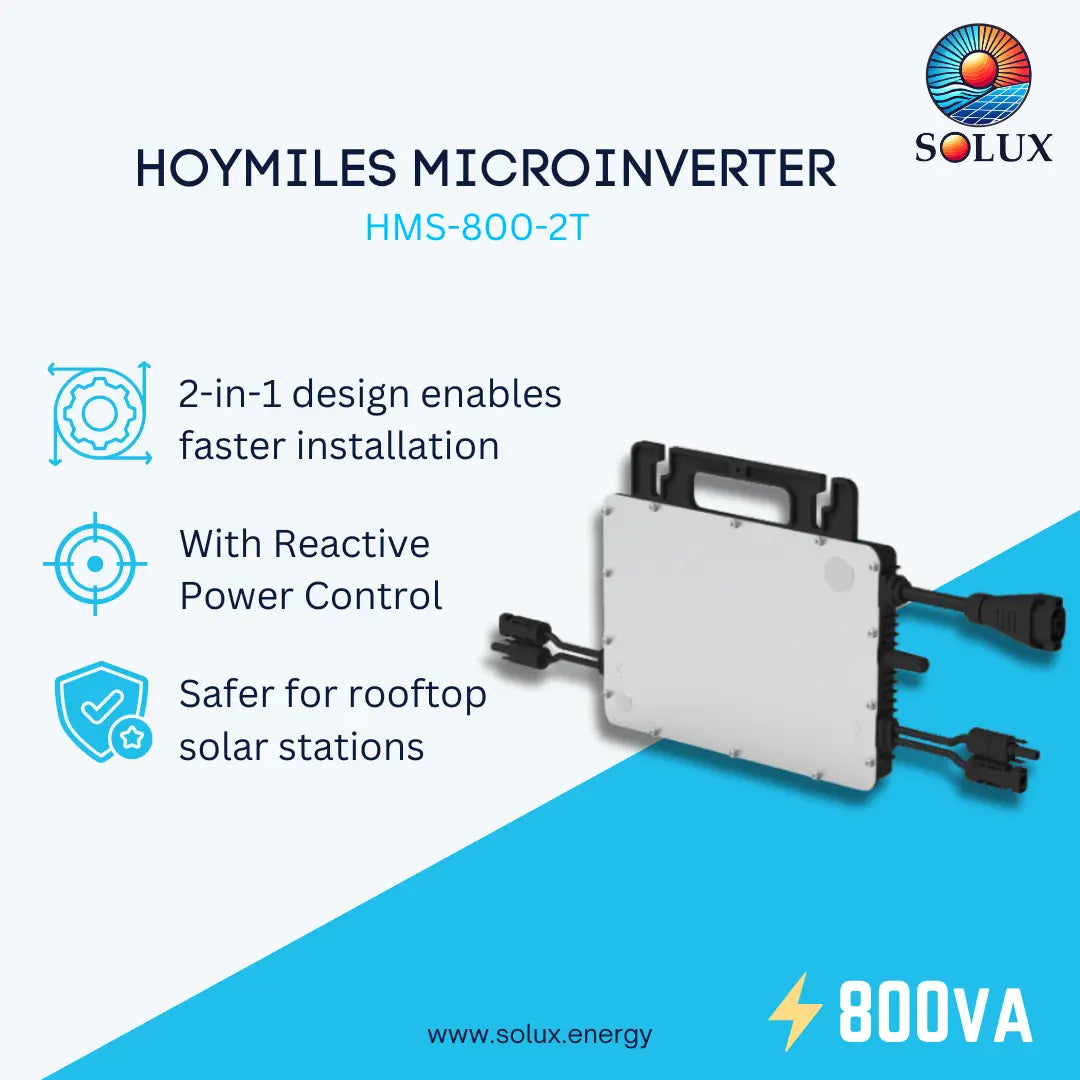

Hoymiles HMS Microinverter 800-2T

Hoymiles HMS Microinverter 800-2T

High-powered microinverter for 2-in-1 with output power up to 1000 VA
With Reactive Power Control, compliant with EN 50549-1:2019, VDE-AR-N 4105:2018, VFR2019, etc.
Safer for rooftop solar stations with rapid shutdown compliance and isolated transformer
Independent MPPT and monitoring ensure greater energy harvest and easier maintenance
2-in-1 design enables faster installation
Sub-1G wireless solution allows stable communication in commercial and industrial settings

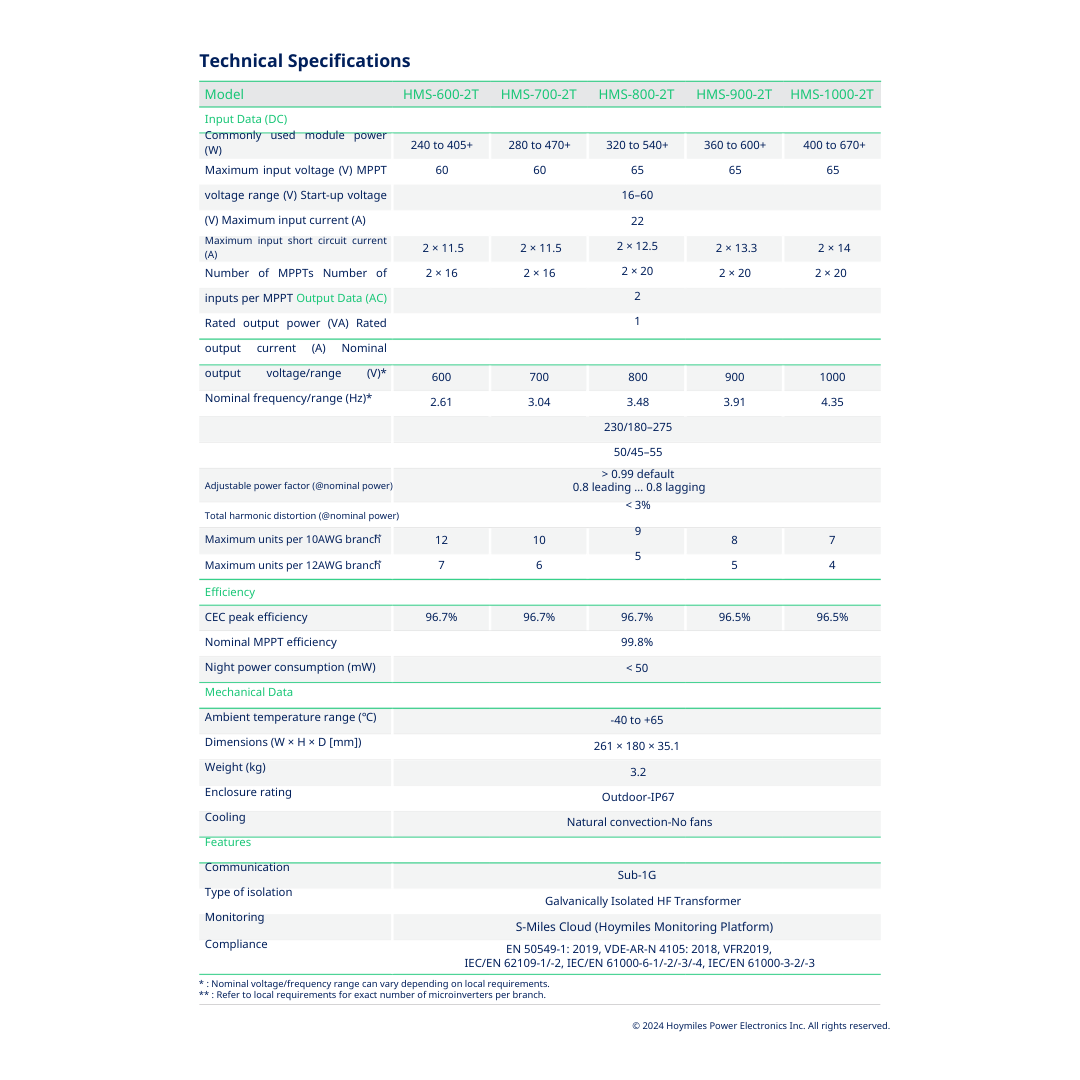

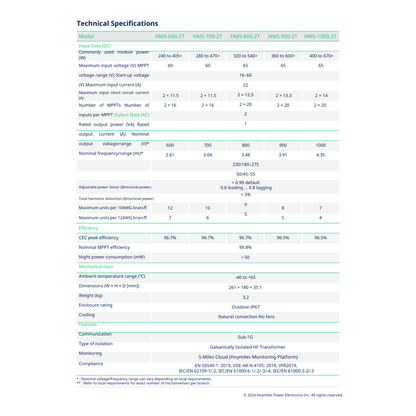

Technical Specifications:

• Commonly used module power (W): 320 to 540+
• Maximum input voltage (V): 65
• MPPT voltage range (V): 16–60
• Start-up voltage (V): 22
• Maximum input current (A): 2 × 12.5
• Maximum input short circuit current (A): 2 × 20
• Number of MPPTs: 2
• Number of inputs per MPPT: 1
• Rated output power (VA): 800
• Rated output current (A): 3.48
• Nominal output voltage/range (V): 230/180–275
• Nominal frequency/range (Hz): 50/45–55
• Adjustable power factor (@nominal power): > 0.99 default 0.8 leading … 0.8 lagging
• Total harmonic distortion (@nominal power): < 3%
• Maximum units per 10AWG branch: 9
• Maximum units per 12AWG branch: 5
• CEC peak efficiency: 96.7%
• Nominal MPPT efficiency: 99.8%
• Night power consumption (mW): < 50
• Ambient temperature range (℃): -40 to +65
• Dimensions (W × H × D [mm]): 261 × 180 × 35.1
• Weight (kg): 3.2
• Enclosure rating: Outdoor-IP67
• Cooling: Natural convection-No fans
