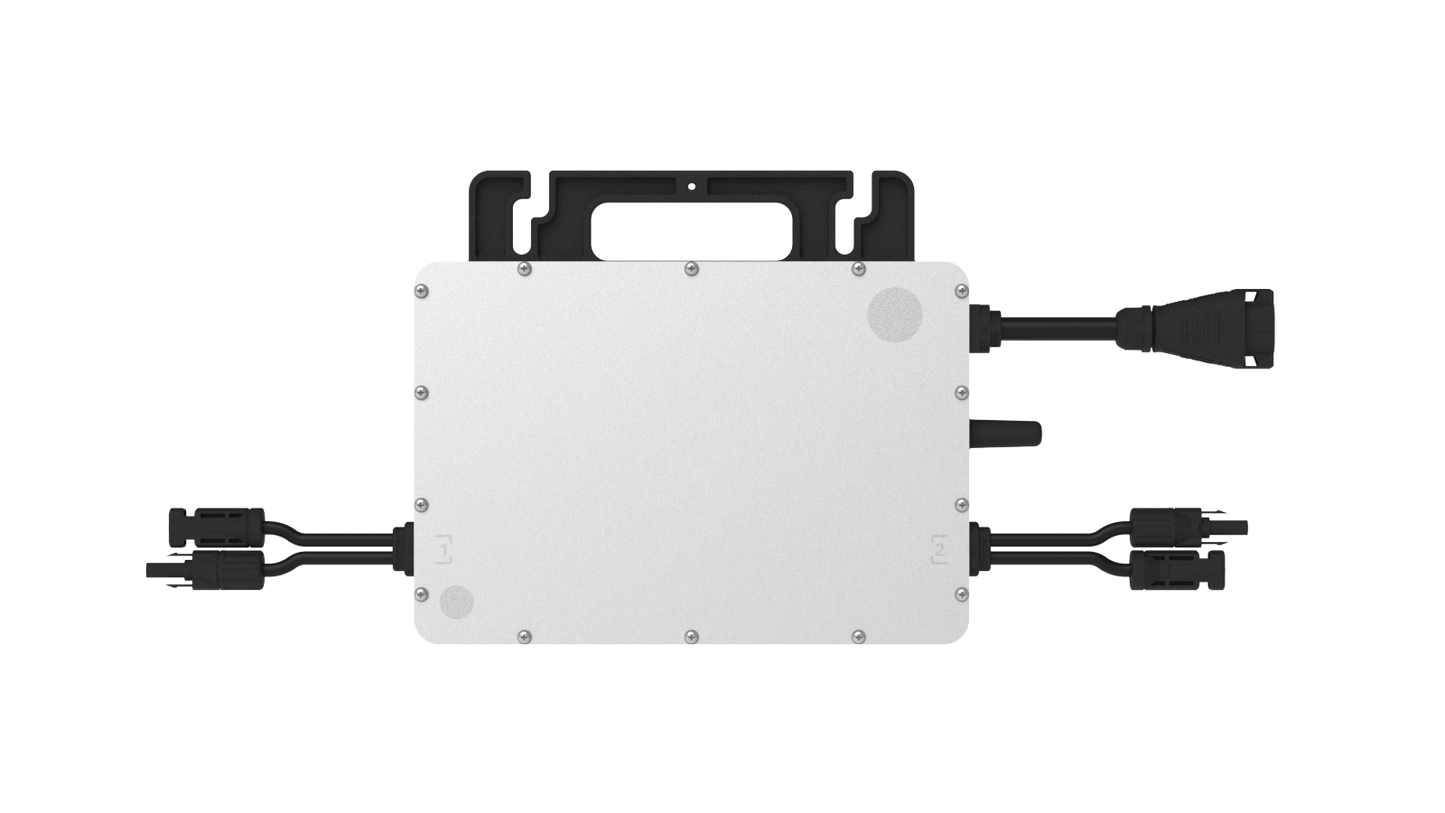

Hoymiles HMS Microinverter 800-2T

Hoymiles HMS Microinverter 800-2T

High-density power for high-wattage arrays. The HMS-800-2T is the premier hoymiles microinverter for modern residential and balcony solar systems. Featuring a unique 2-in-1 design, it supports two solar modules independently, maximizing energy harvest for panels up to 540W+ while significantly lowering the cost per watt compared to single-unit architectures.

Product Highlights:

• Dual-MPPT Optimization: Independent MPPT tracking ensures that shading or debris on one panel never impacts the other. With a low 22V start-up, this hoymiles microinverter wakes up earlier and works longer than standard systems, maximizing your daily energy harvest.
• Reliable Sub-1G Connectivity: Unlike standard WiFi that struggles with walls and interference, our Sub-1G wireless technology provides industrial-grade stability. This ensures your S-Miles Cloud monitoring stays "always-on" with superior range and data integrity.
• Certified Safety & Compliance: Engineered for global reliability, the HMS-800-2T meets stringent UL 1741, VDE, and EN 50549 standards. Featuring an isolated transformer and native rapid shutdown compliance, it offers the highest level of fire safety for residential rooftops.
• 25-Year Maintenance-Free Build: Housed in a fanless IP67 (NEMA 6) enclosure, this unit thrives in extreme climates (-40°C to +65°C). Its natural convection cooling eliminates mechanical risks, providing a bankable, high-efficiency (96.7% CEC) solution backed by a long-term warranty.

Technical Specifications:

• Commonly used module power (W): 320 to 540+
• Maximum input voltage (V): 65
• MPPT voltage range (V): 16–60
• Start-up voltage (V): 22
• Maximum input current (A): 2 × 12.5
• Maximum input short circuit current (A): 2 × 20
• Number of MPPTs: 2
• Number of inputs per MPPT: 1
• Rated output power (VA): 800
• Rated output current (A): 3.48
• Nominal output voltage/range (V): 230/180–275
• Nominal frequency/range (Hz): 50/45–55
• Adjustable power factor (@nominal power): > 0.99 default 0.8 leading … 0.8 lagging
• Total harmonic distortion (@nominal power): < 3%
• Maximum units per 10AWG branch: 9
• Maximum units per 12AWG branch: 5
• CEC peak efficiency: 96.7%
• Nominal MPPT efficiency: 99.8%
• Night power consumption (mW): < 50
• Ambient temperature range (℃): -40 to +65
• Dimensions (W × H × D [mm]): 261 × 180 × 35.1
• Weight (kg): 3.2
• Enclosure rating: Outdoor-IP67
• Cooling: Natural convection-No fans
