Hoymiles HMS Microinverter 700-2T

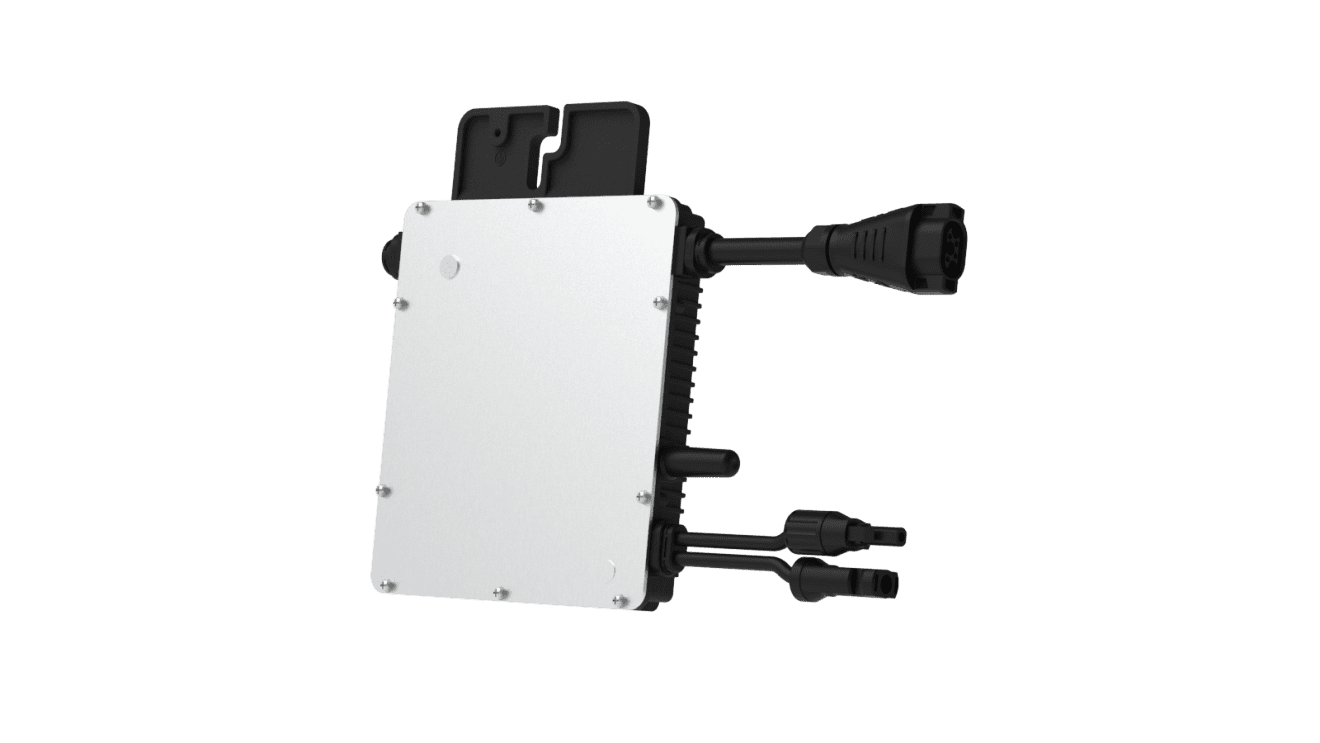

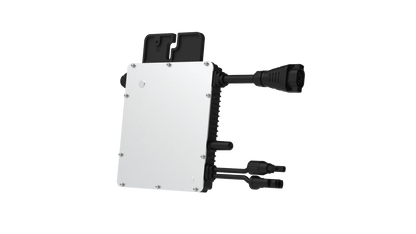

Hoymiles Microinverter HMS 700-2T

High-powered performance for dual-module arrays. The HMS-700-2T is a flagship hoymiles microinverter engineered for North American residential and commercial applications. Its innovative 2-in-1 design manages two solar modules (up to 470W+ each) independently, offering the granular precision of module-level power electronics (MLPE) with the installation speed and cost-effectiveness of a shared-hardware architecture.

Product Highlights

• Dual-MPPT Performance: Features independent MPPTs that prevent shading or debris on one module from affecting the other. A low 22V start-up and wide 16–60V range capture energy in low-light conditions where traditional string inverters fail.
• Sub-1G Wireless Stability:Utilizes industrial-grade Sub-1G wireless communication, outperforming standard 2.4GHz WiFi in range and signal penetration. This ensures a stable link to the DTU gateway, even in interference-heavy commercial environments.
• Grid & Safety Compliance Natively NEC 690.12 compliant for rapid shutdown, eliminating the need for external fire-safety hardware. Fully "smart-grid ready" with Reactive Power Control meeting UL 1741, IEEE 1547, and CA Rule 21 standards.
• Industrial Build: Quality Housed in a fanless NEMA 6 (IP67) enclosure for maintenance-free operation in extreme temperatures (-40°F to +149°F). Backed by an industry-leading 25-year warranty in North America for long-term project bankability.

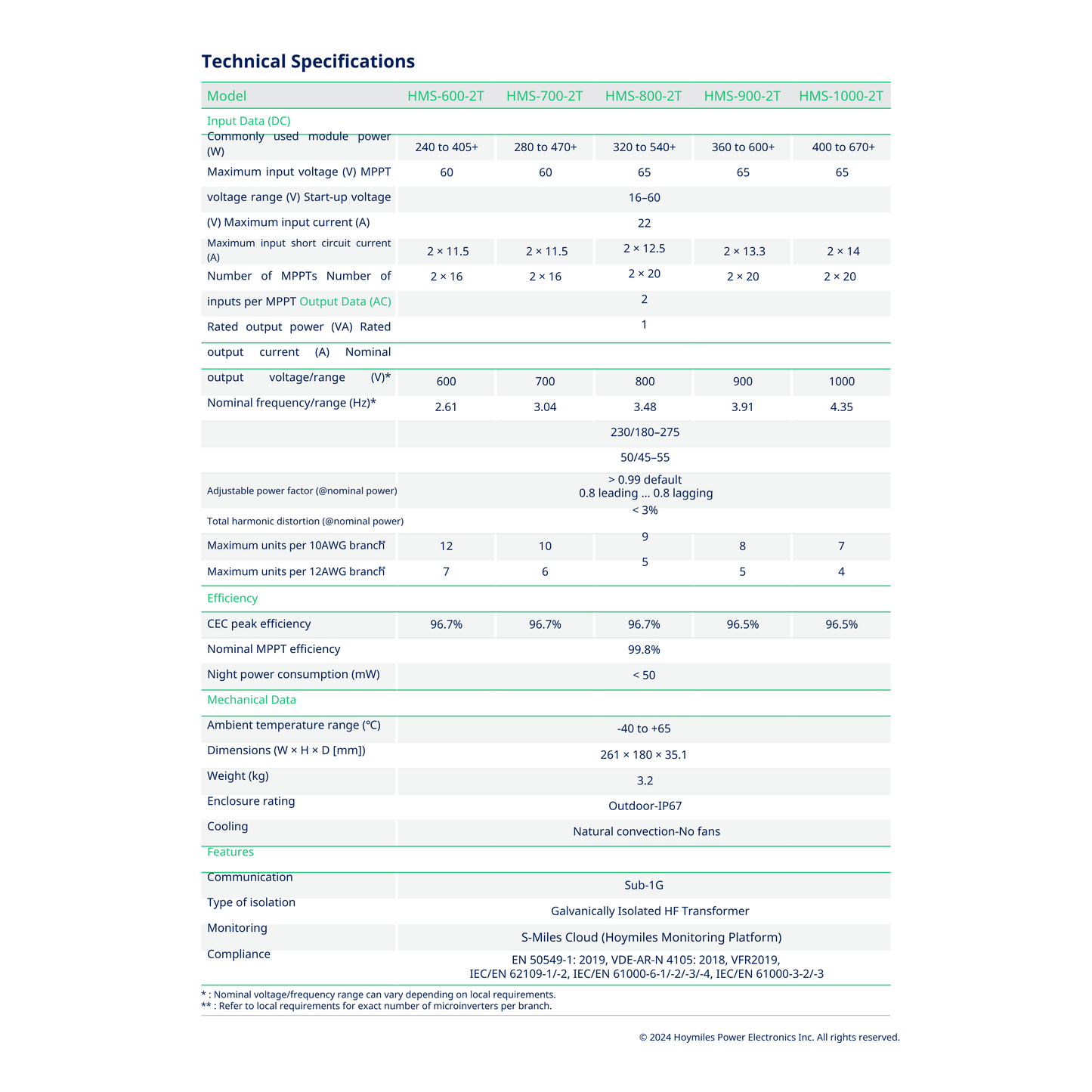

Technical Specification

• Commonly used module power (W): 280 to 470+
• Maximum input voltage (V): 60
• MPPT voltage range (V): 16–60
• Start-up voltage (V): 22
• Maximum input current (A): 2 × 11.5
• Maximum input short circuit current (A): 2 × 16
• Number of MPPTs: 2
• Number of inputs per MPPT: 1
• Peak output power (VA): 700
• Maximum continuous output power (VA): 638
• Nominal frequency/range (Hz)1: 60/55–65
• Adjustable power factor (@nominal power): > 0.99 default 0.8 leading … 0.8 lagging
• Total harmonic distortion (@nominal power): < 3%
• CEC peak efficiency: 96.70%
• Nominal MPPT efficiency: 99.8%
• Night power consumption (mW): < 50
• Ambient temperature range: (℉) -40 to +149 (-40℃ to +65℃)
• Dimensions (W × H × D [inches]): 10.28 × 7.09 × 1.22 (261 × 180 × 31 mm
• Weight: (lbs) 6.83 (3.1 kg)
• Enclosure rating: NEMA 6 (Outdoor-IP67)
• Cooling: Natural convection-No fans
