Description

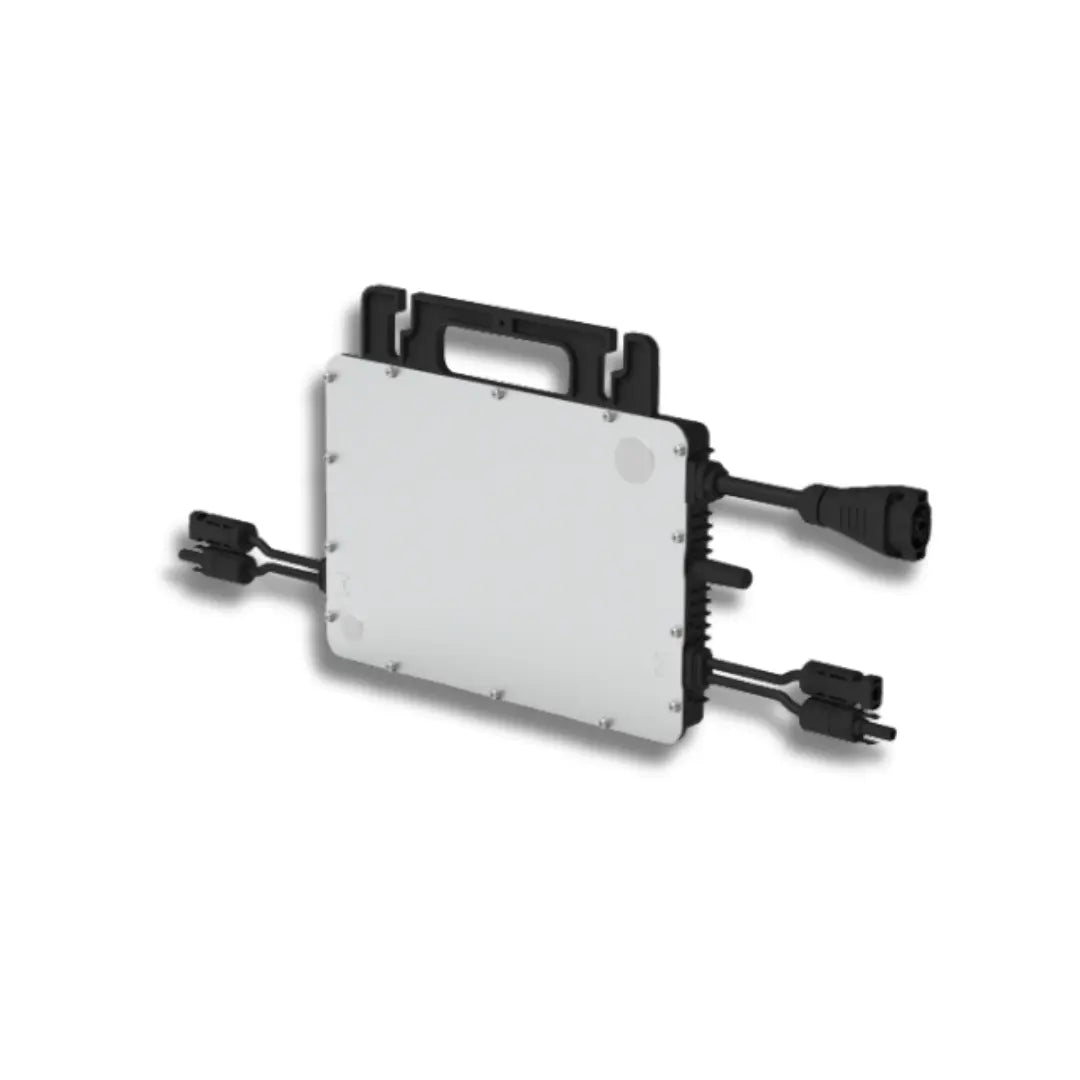

Hoymiles HMS-700-2T Dual-Module Microinverter
The Hoymiles HMS-700-2T (HMS-700-2T) is a high-power dual-module microinverter engineered for residential and commercial solar installations across North America. Featuring a 2-in-1 design with two independent MPPT trackers, the hms700 manages two solar panels (280W to 470W+ each) to prevent shading or debris on one module from affecting the other. Equipped with Sub-1G sub-gigahertz wireless communication for long-range signal stability.
This microinverter features integrated Reactive Power Control meeting CA Rule 21, UL 1741, and IEEE 1547 standards, alongside native NEC 690.12 rapid shutdown compliance.

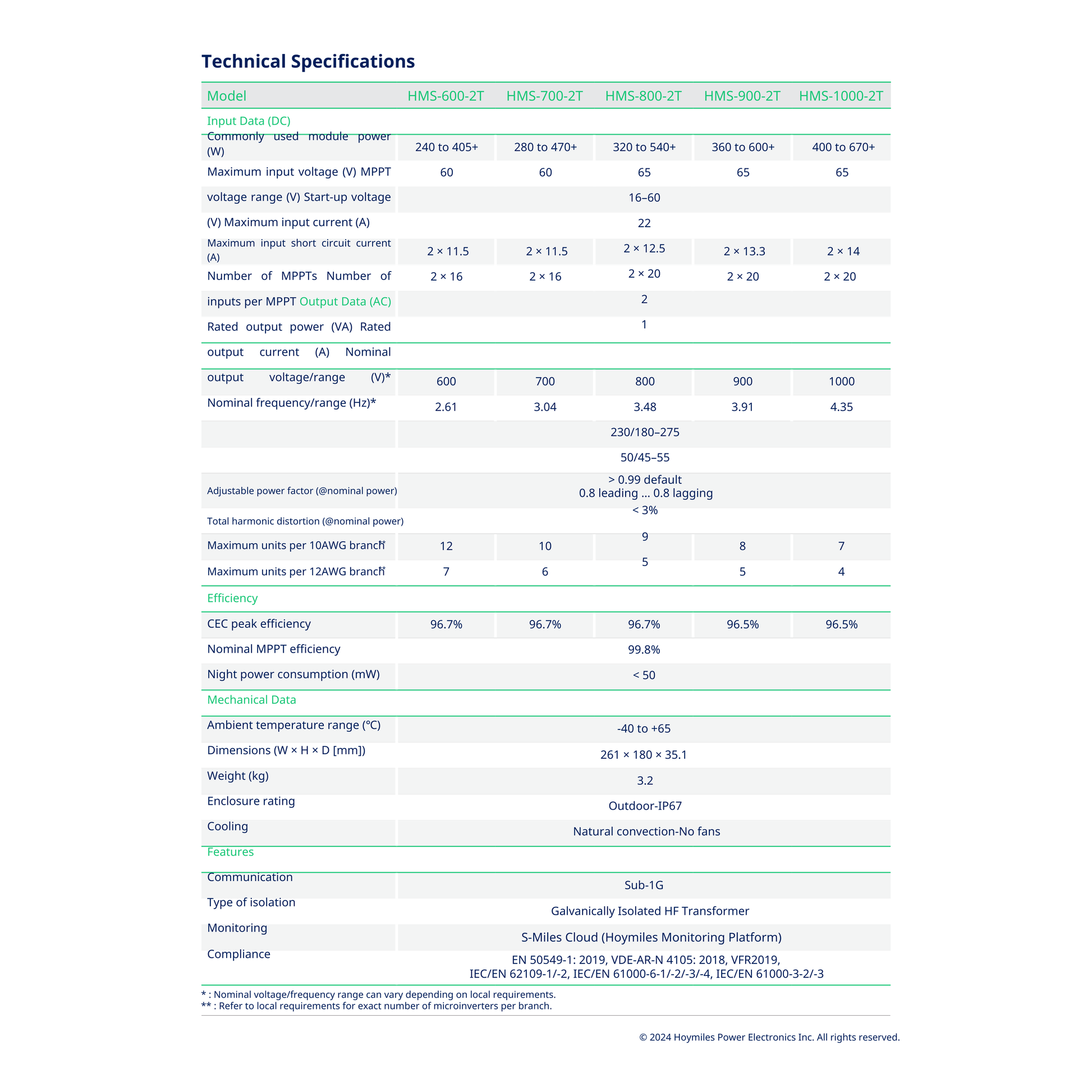

Technical Specification
- Commonly used module power (W): 280 to 470+
- Maximum input voltage (V): 60
- MPPT voltage range (V): 16–60
- Start-up voltage (V): 22
- Maximum input current (A): 2 × 11.5
- Maximum input short circuit current (A): 2 × 16
- Number of MPPTs: 2
- Number of inputs per MPPT: 1
- Peak output power (VA): 700
- Maximum continuous output power (VA): 638
- Nominal frequency/range (Hz)1: 60/55–65
- Adjustable power factor (@nominal power): > 0.99 default 0.8 leading … 0.8 lagging
- Total harmonic distortion (@nominal power): < 3%
- CEC peak efficiency: 96.70%
- Nominal MPPT efficiency: 99.8%
- Night power consumption (mW): < 50
- Ambient temperature range: (℉) -40 to +149 (-40℃ to +65℃)
- Dimensions (W × H × D [inches]): 10.28 × 7.09 × 1.22 (261 × 180 × 31 mm
- Weight: (lbs) 6.83 (3.1 kg)
- Enclosure rating: NEMA 6 (Outdoor-IP67)
- Cooling: Natural convection-No fans
-
