Description

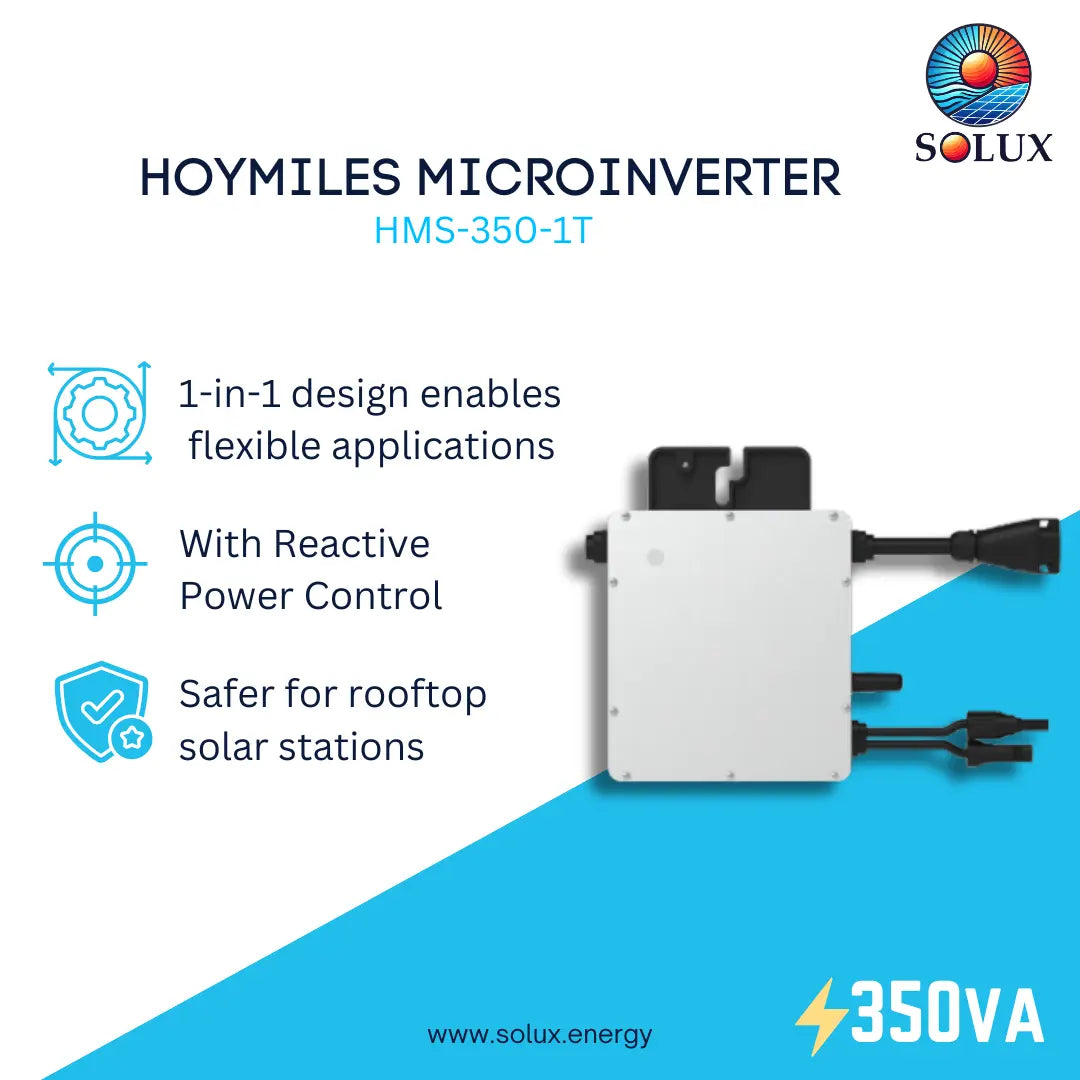

Hoymiles HMS-350-1T 350W Single-Module MLPE Microinverter
The Hoymiles HMS-350-1T is a single-module (1-in-1) module-level power electronics (MLPE) microinverter designed for panel-level power conversion across commercial and residential solar arrays. Engineered to support high-powered PV modules ranging from 280W to 470W+, the hoymiles hms-350-1t handles continuous input currents up to 13A (with a 20A short-circuit current rating), making it compatible with modern high-efficiency PV panels.
Operating over Sub-1G sub-gigahertz wireless communication, the hoymiles hms-350-1t pairs with Hoymiles DTU-Pro-S monitoring gateways to provide module-level telemetry via the S-Miles Cloud platform. Encapsulated in a fanless NEMA 6 (IP67) outdoor enclosure, it satisfies NEC 2017/2020 690.12 rapid shutdown compliance, UL 1741 SB certification, and California Rule 21 grid standards.

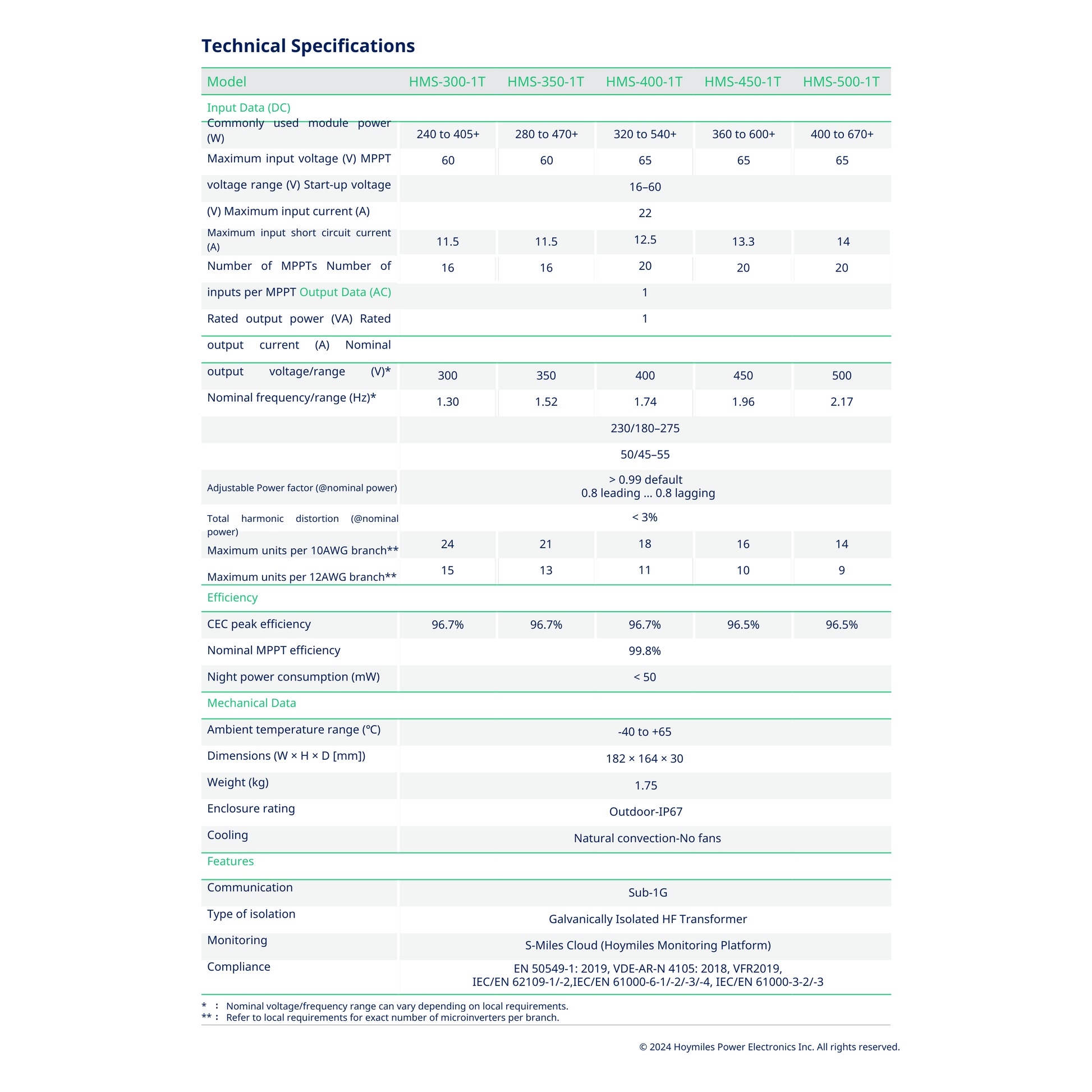

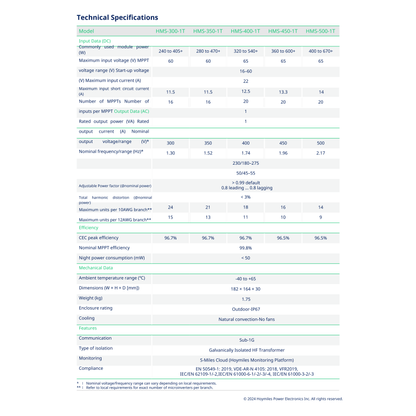

Technical Specifications:
- Commonly used module power (W): 280 to 470+
- Maximum input voltage (V): 60
- MPPT voltage range (V): 16–60
- Start-up voltage (V): 22
- Maximum input current (A): 13
- Maximum input short circuit current (A): 20
- Number of MPPTs: 1
- Number of inputs per MPPT: 1
- Peak output power (VA): 350
- Maximum continuous output power (VA): 319
- Nominal frequency/range (Hz)1: 60/55–65
- Total harmonic distortion: < 3%
- CEC peak efficiency: 96.70%
- Nominal MPPT efficiency: 99.80%
- Night power consumption (mW): < 50
- Ambient temperature range (℃): -40 to +65
- Dimensions (W × H × D [mm]): 182 × 164 × 30
- Weight (kg): 1.75
- Enclosure rating: Outdoor-IP67 (NEMA6)
-
