Hoymiles HM-NT Microinverter 1500T

Hoymiles HM-NT Microinverter 1500T

High-density power for modern solar arrays. The Hoymiles microinverter (HM-NT 1500T) is a high-performance, 4-in-1 module-level power electronic (MLPE) engineered to maximize the energy yield of high-wattage solar panels. Designed for versatility and extreme durability, this unit supports up to four solar modules simultaneously, significantly reducing installation time and balance-of-system (BOS) costs without sacrificing individual panel optimization.

Product Highlights

• Advanced 4-in-1 Architecture Supports four modules (300W–505W+) via Dual MPPTs, isolating shade impact to individual panels. A wide 16–60V MPPT range and low 22V start-up maximize production in low-light conditions.
• Installer-First "Plug-and-Play" Engineered for rapid deployment with daisy-chaining and external antennas for robust gateway communication. Provides homeowners with module-level monitoring via the S-Miles Cloud.
• Regulatory Excellence Fully compliant with NEC-2017/2020 690.12 rapid shutdown and CA Rule 21 reactive power control, meeting the stringent standards of high-density utility grids.
• Field-Proven Reliability Features a NEMA 6 (IP67) rating and 6000V surge protection. The fanless natural convection cooling system prevents mechanical failure across extreme temperatures (-40°C to +65°C).

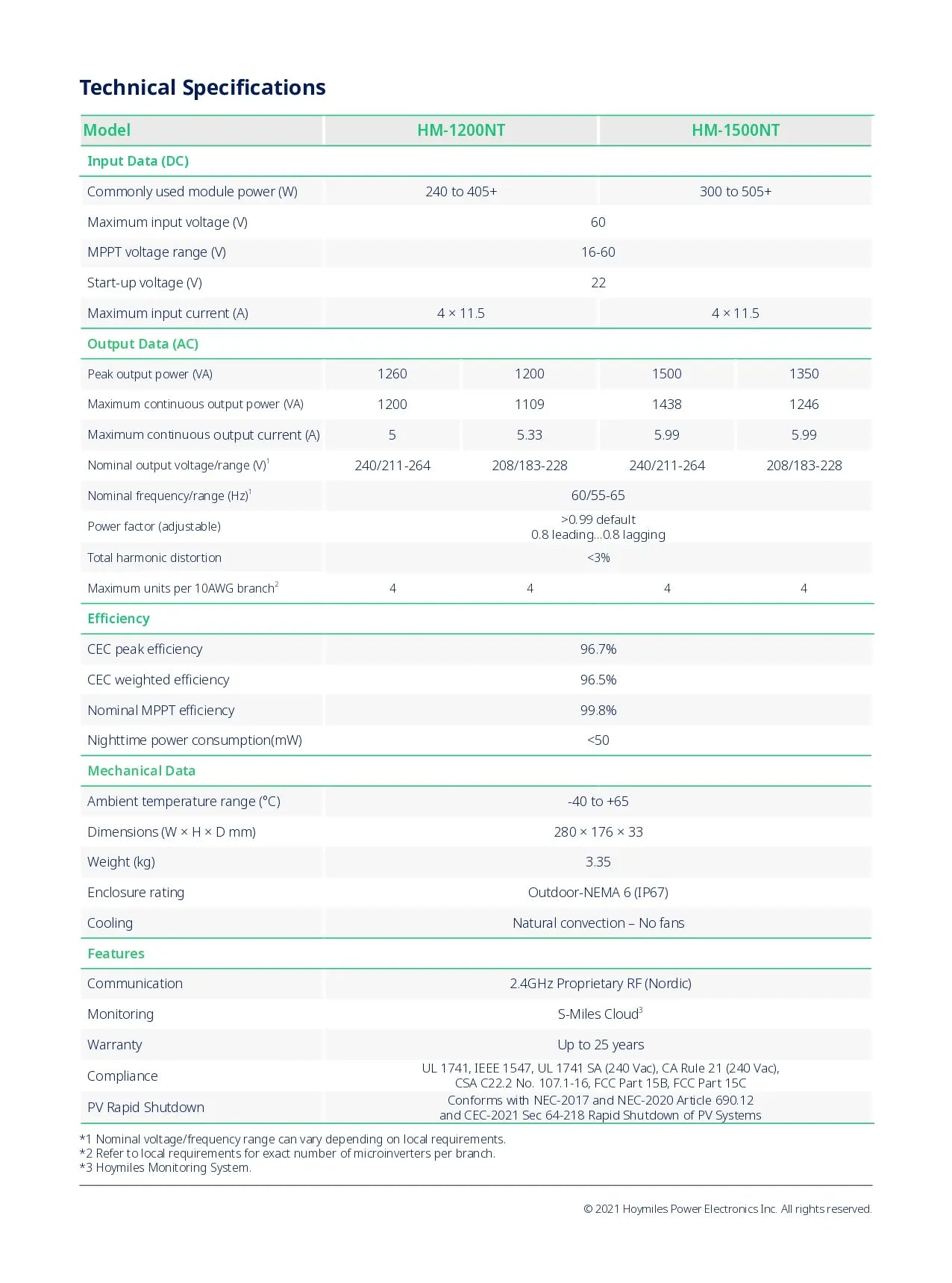

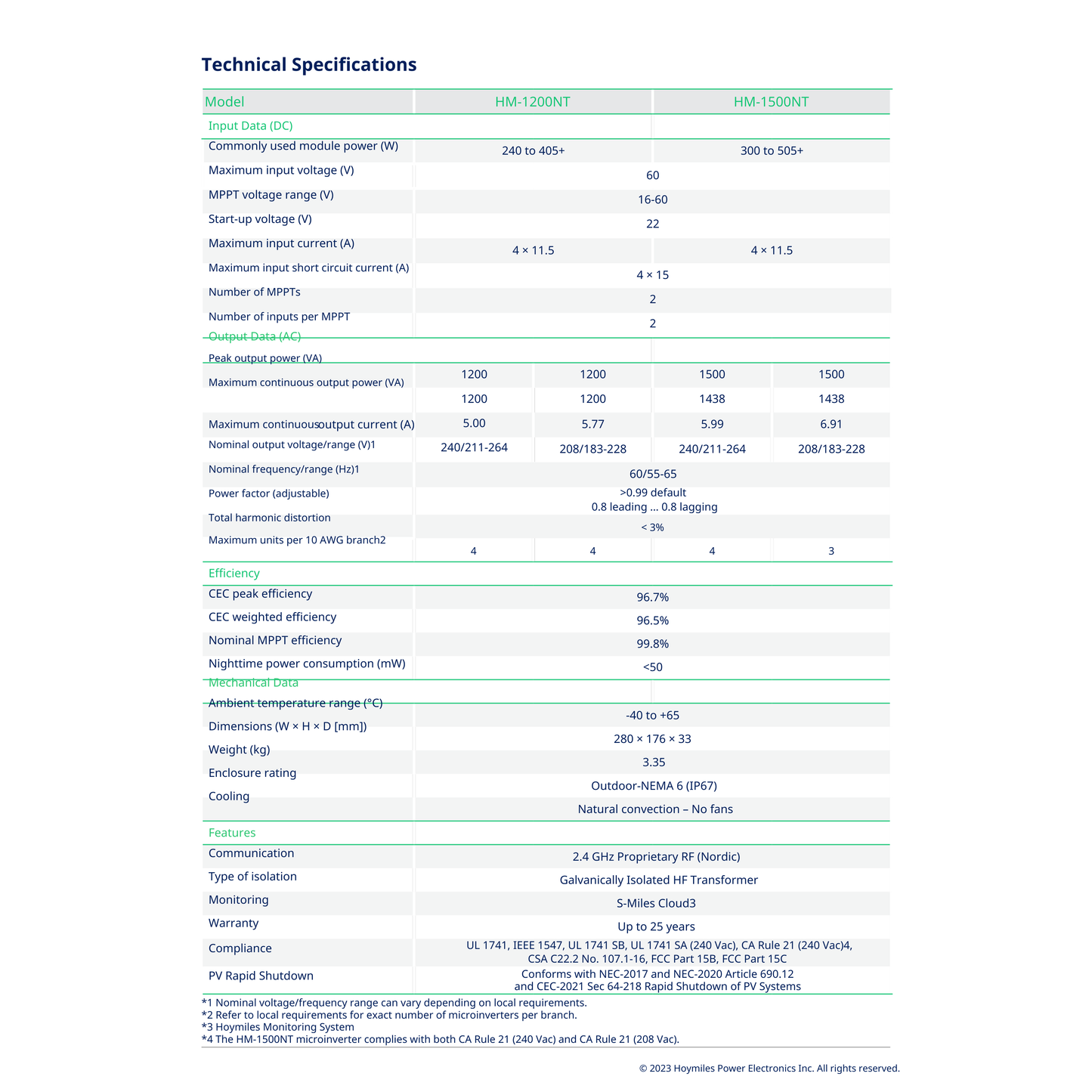

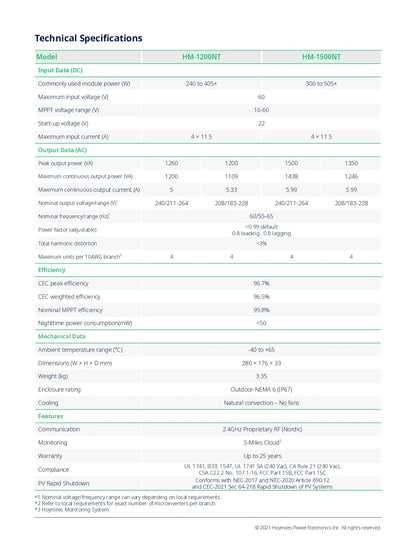

Technical Specification

• Commonly used module power (W): 300 to 505+
• Maximum input voltage (V): 60
• MPPT voltage range (V): 16-60
• Start-up voltage (V): 22
• Maximum input current (A): 4 × 11.5
• Nominal frequency/range (Hz): 60/55-65
• Power factor (adjustable): >0.99 default 0.8 leading…0.8 lagging
• CEC peak efficiency: 96.7%
• CEC weighted efficiency: 96.5%
• Nominal MPPT efficiency: 99.8%
• Nighttime power consumption(mW): <50
• Ambient temperature range (°C): -40 to +65
• Dimensions (W × H × D mm): 280 × 176 × 33
• Weight (kg): 3.35
• Enclosure rating: Outdoor-NEMA 6 (IP67)
• Cooling: Natural convection – No fans
