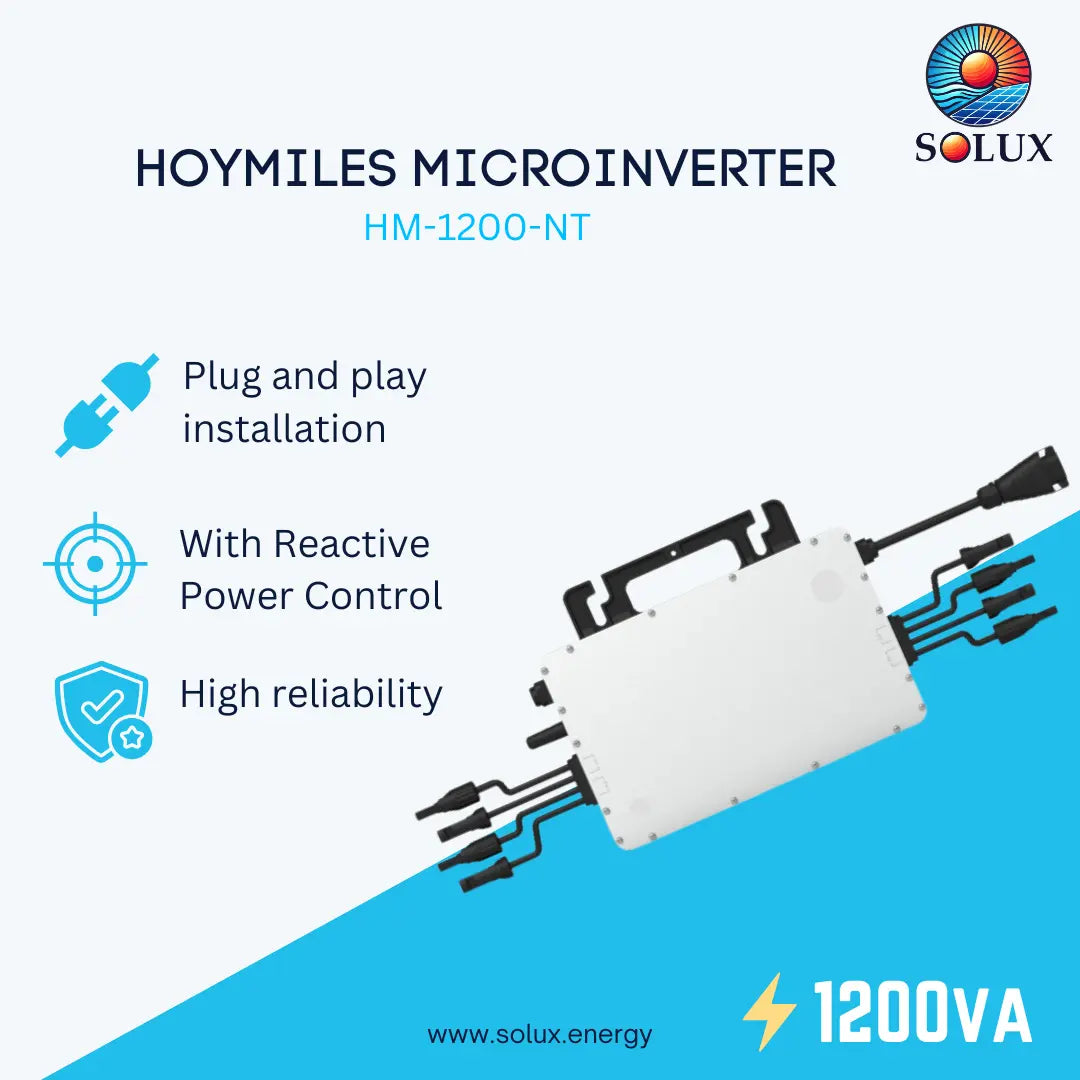

Hoymiles 4-in-1 Microinverter (HM-1200-NT)
The Hoymiles HM-1200-NT simplifies residential solar arrays by packing optimization for up to four panels into a single, rapid-shutdown-compliant housing. Built into a heavy, rigid cast-aluminum chassis that mounts firmly to solar rails without bowing, it consolidates your overhead hardware to slash on-roof installation times by nearly 50%. Installers choose this quad-module setup to eliminate the complexity of multi-unit installations while ensuring immediate compliance with NEC safety mandates.
-
Quick Specs
- Parallel-Pair MPPT Design: Features 2 independent MPPTs tracking 4 total inputs, wire identical panel orientations together on shared channels to maximize shade performance.
-
Click-Lock Connections: Standard terminal branch lines lock together with an audible, weather-sealing "snap" to form a watertight, dustproof NEMA 6 enclosure.
- External Coaxial Antenna: Relays reliable 2.4GHz telemetry through ply-decking and composite shingles straight to your mandatory monitoring gateway.
-
Technical Specifications
- Module Compatibility: Four 240W to 405W+ standard 60-cell or 72-cell solar panels
- Maximum input voltage (V): 60
- MPPT voltage range (V): 16-60
- Start-up voltage (V): 22
- Maximum input current (A): 4 × 11.5
- Maximum input short circuit current (A): 4 × 15
- Number of MPPTs: 2
- Number of inputs per MPPT: 2
- CEC peak efficiency: 96.7%
- CEC weighted efficiency: 96.5%
- Nominal MPPT efficiency: 99.8%
- Nighttime power consumption(mW) <50
- Ambient temperature range (°C): -40 to +65
- Dimensions (W × H × D mm) 280 × 176 × 33
- Weight (kg) 3.35
-
Downloads
Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
