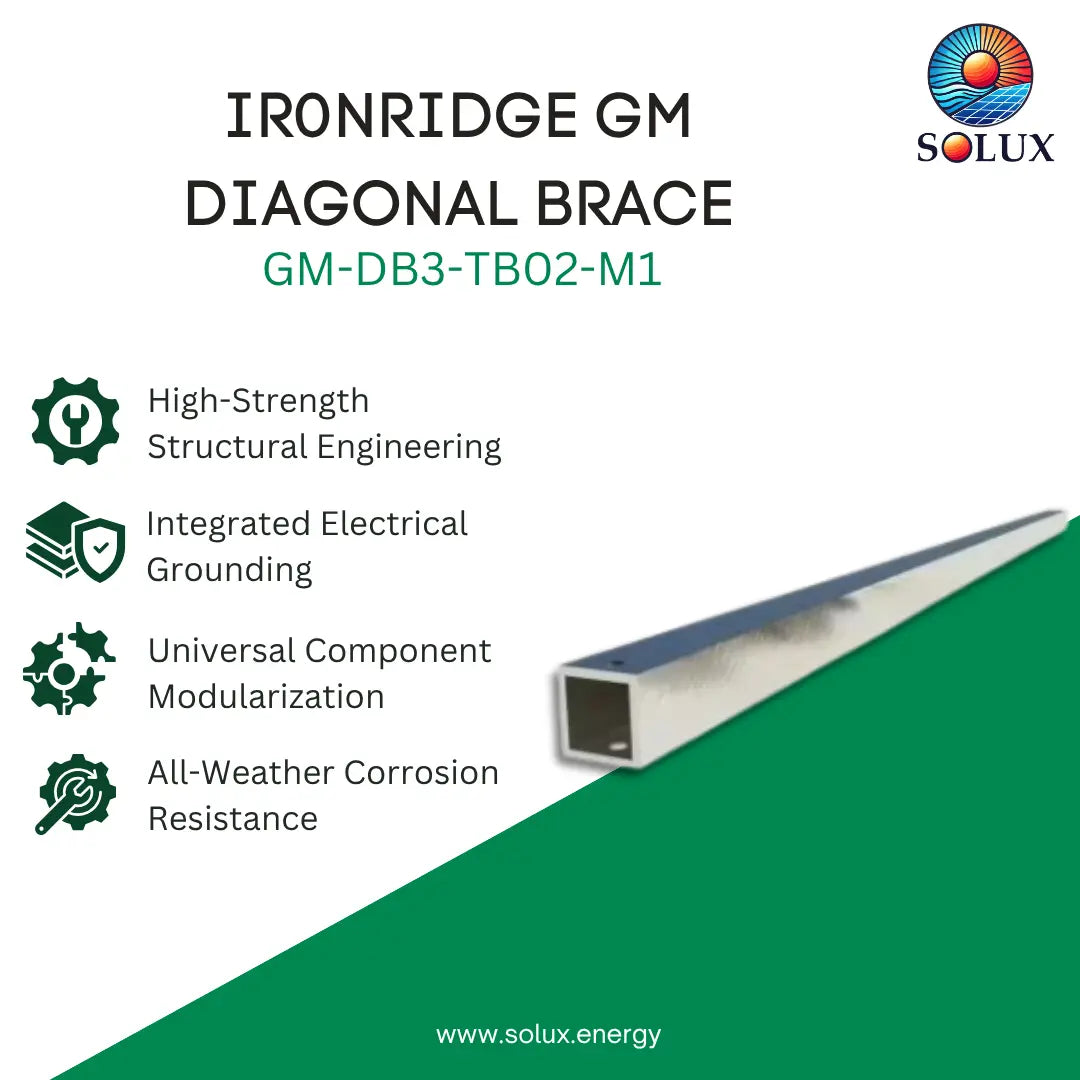

  • Promotional graphic for an Ironridge GM diagonal brace by Solux, showing the product as a long square-profile metal brace on a white and green background with feature callouts and the Solux logo.
  • Technical diagram and component list for Ironridge diagonal brace with Ironridge logo.
  • Black metal rod on a white background IronRidge GM-DB3-TB02-M1 Diagonal Brace, 2.5" Square Tube, 105.0" LG (For 3" Pipe)
1 3

IronRidge GM-DB3-TB02-M1 Diagonal Brace, 2.5" Square Tube, 105.0" LG (For 3" Pipe)

$345.40 USD
$345.40 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Heavy-Duty Lateral Stabilization: Installs diagonally between north and south leg pairs on 3" steel pipe substructures to brace the array against wind shear and severe dynamic loads.
✔️ Larger Profile for 3" Pipe Systems: Upgrades from the 2" square tube (GM-DB2-TB02-M1) to a 2.5" square profile to accommodate larger span lengths and higher ground mount structural loads.
✔️ Sleeve Integration: Connects seamlessly to IronRidge 3" Diagonal Brace Sleeves (GM-DB3-SLV01-M1) and hardware kits (GM-DB-HW01-M1) to mount securely to 3" schedule steel pipe.
✔️ Corrosion-Resistant Material: Manufactured from structural-grade 6061-T6 mill-finish aluminum for long-term durability in ground-contact outdoor installations.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

Ironridge

  • Description

    IronRidge GM Diagonal Brace, 2.5" Square Tube, 105.0" Long (For 3" Pipe) (GM-DB3-TB02-M1)

    Strengthen heavy-duty ground-mounted solar structures with the IronRidge GM Diagonal Brace (MPN: GM-DB3-TB02-M1). Ground mounts experience severe lateral wind forces and soil movement. This 105-inch long, 2.5-inch square aluminum brace connects across 3-inch pipe substructures to eliminate frame sway and keep solar arrays firmly locked in place.

    Designed specifically for larger IronRidge Ground Mount (GM) setups, this brace delivers cross-bracing rigidity backed by a 25-year structural warranty.

    Technical Specs:

    • Manufacturer Part #: GM-DB3-TB02-M1
    • Item Weight: 23.02 lb
    • Dimensions (LxWxH): 2.5 x 2.5 x 105 inches

  • Resources

    Datasheet

    ✔️ No datasheet file resource available. Email support@solux.energy for file request.

    Cut Sheet

    ✔️ No cut sheet file resource available. Email support@solux.energy for file request.

    Warranty

    ✔️ 25-year warranty
