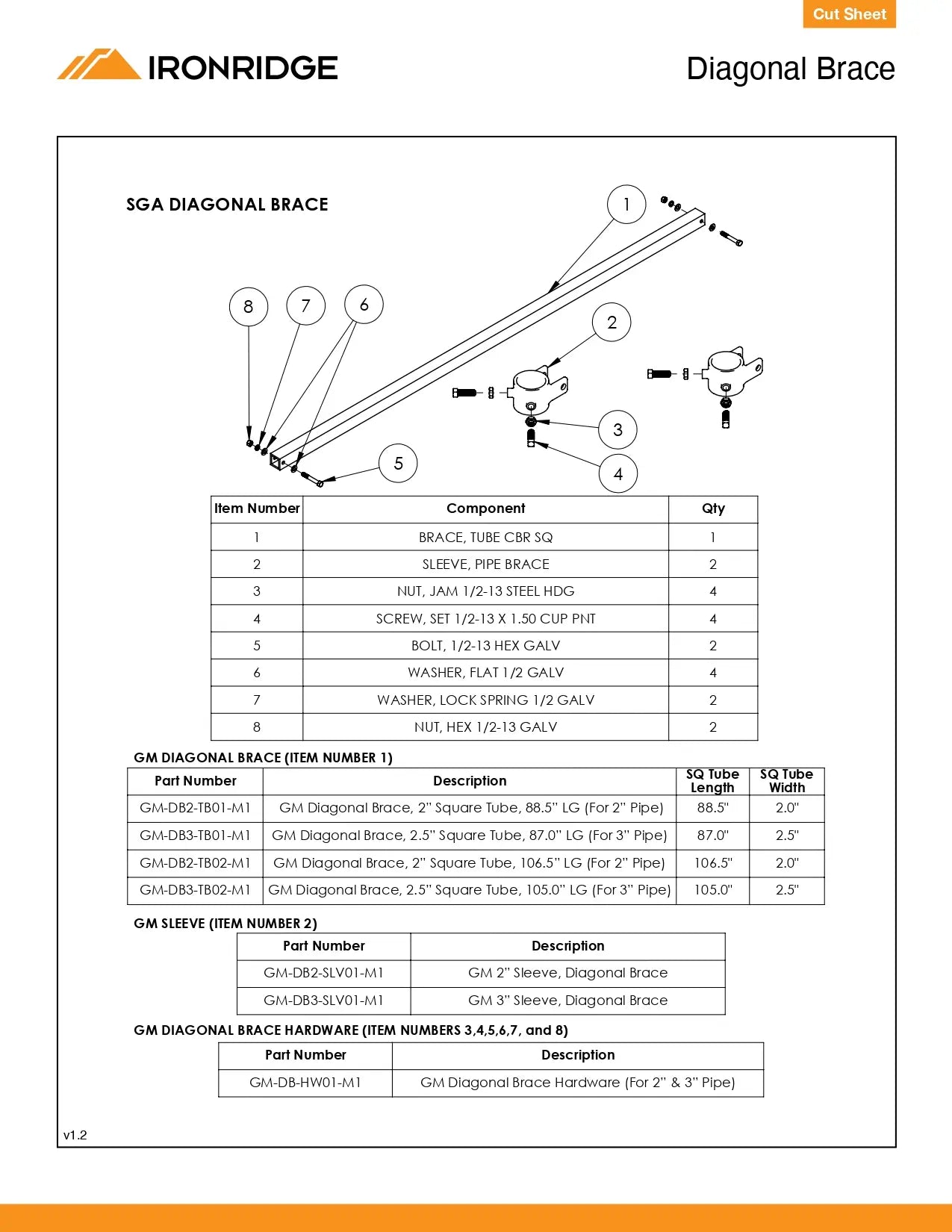

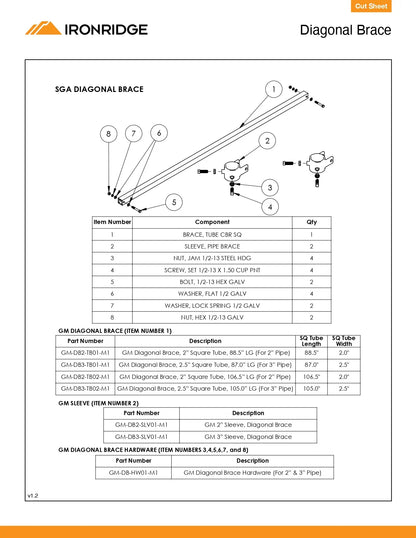

  • Technical diagram and component list for Ironridge diagonal brace with Ironridge logo.
  • A silver aluminum extrusion profile with a square tube end and a matching circular mounting clamp, shown on a plain white background.
1 3

IronRidge GM-DB2-TB02-M1 Diagonal Brace, 2" Square Tube, 106.5" LG (For 2" Pipe)

$282.32 USD
$282.32 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ North-South Structural Stabilization: Connects between the north and south support legs of an IronRidge Ground Mount substructure to distribute lateral loads, managing heavy wind uplift and cross-wind forces.
✔️ High-Strength Aluminum Alloy: Manufactured from 6061-T6 structural-grade aluminum to maximize rigidity while keeping structural weight manageable during ground installation.
✔️ Modular Sleeve Attachment: Integrates with IronRidge 2" Diagonal Brace Sleeves (GM-DB2-SLV01-M1) to secure the tube directly onto 2" nominal steel schedule pipe uprights.
✔️ Corrosion Resistance: Mill finish aluminum construction provides long-term weatherability in outdoor, ground-exposed environments.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

Ironridge

  • Description

    IronRidge GM Diagonal Brace, 2" Square Tube, 106.5" Long (GM-DB2-TB02-M1)

    Strengthen your ground-mounted solar array with the IronRidge GM Diagonal Brace (MPN: GM-DB2-TB02-M1). Ground mounts experience severe wind sway and soil stress. This 106.5-inch long, 2-inch square aluminum brace attaches across 2-inch pipe substructures to lock your array framework in place and prevent movement during storms.

    Designed specifically for the IronRidge Ground Mount (GM) series, it provides cross-bracing rigidity while keeping installation straightforward on site.

    Technical Specs:

    • Manufacturer Part #: GM-DB2-TB02-M1
    • Item Weight: 19.25 lb
    • Dimensions (LxWxH): 6 x 4 x 3 inches

  • Resources

    Datasheet

    ✔️ Download Datasheet

    Cut Sheet

    ✔️ Download Cut Sheet

    Installation Manual

    ✔️ Download Installation Manual

Download Datasheet of IronRidge Square Tube
