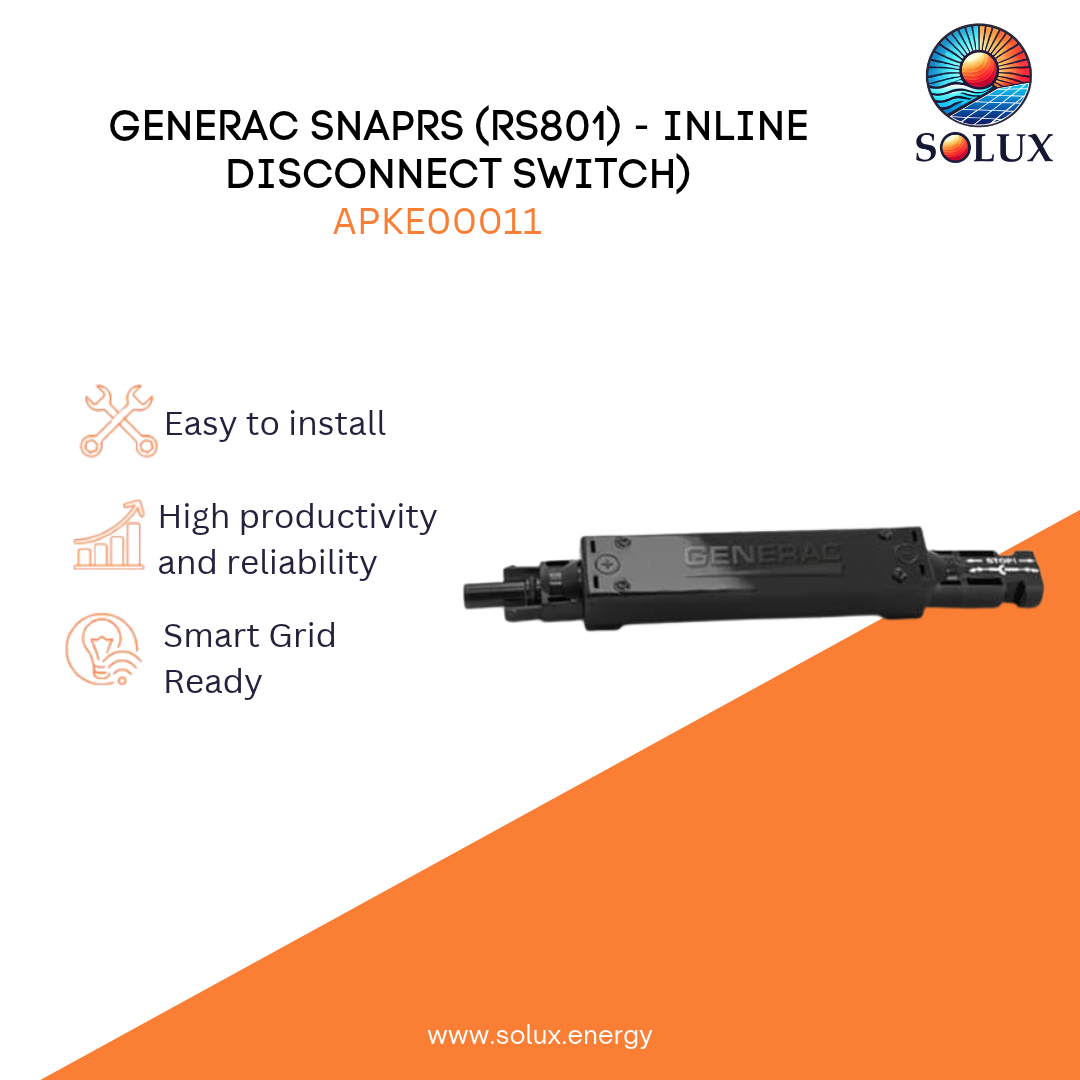

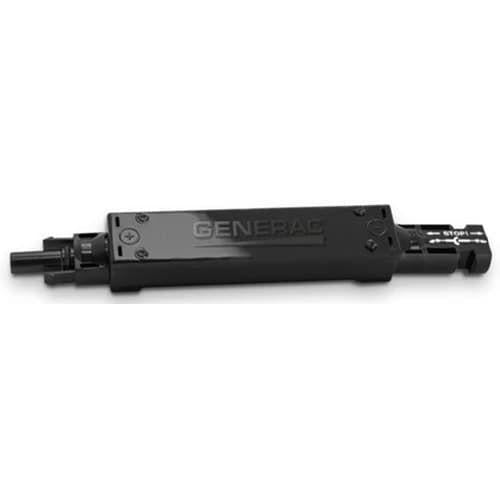

Generac SnapRS (RS801) - Inline Disconnect Switch) - Outdated, newer version RS802

Generac SnapRS (RS801) - Inline Disconnect Switch) - Outdated, newer version RS802

The Generac SnapRS APKE00011 is an inline disconnect switch designed to improve safety in solar panel installations. Installed on the negative lead of each compatible PV module, it works with a Generac PV Link and compatible PWRcell inverter system to provide module-level rapid shutdown. When activated, it helps reduce solar array voltage to below 80 V within seconds.

Technical Specifications:

• Voltage: 75 V
• Maximum Input Current: 13 A
• Maximum String Short-Circuit Current: 10.4 A
• Efficiency: 99.8% (when used with a 50 V PV panel)
• Shutdown Time: Less than 10 seconds
•  Enclosure Rating: NEMA 6P
• Operating Temperature: −40°F to 158°F (−40°C to 70°C)
• Dimensions: 7 × 1 × 1 inches (177.8 × 25.4 × 25.4 mm)
• Weight: 0.17 lb (0.08 kg)
• Certifications: UL 1741
• Protection: Photovoltaic Rapid Shutdown Equipment (PVRSE)
