Generac Smart Switch 100 Amp 120/240 1Ø NEMA 3R CUL

Generac Smart Switch 100 Amp 120/240 1Ø NEMA 3R CUL

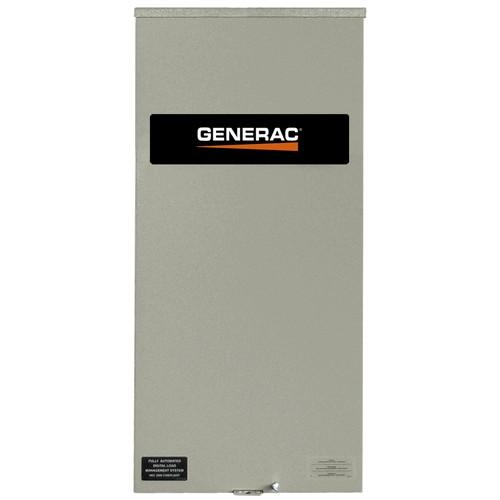

Featuring a NEMA 3R steel enclosure and Heavy Duty Generac Contactor, this Non-service Entrance switch is designed for use with single phase generators. Using the integrated load management technology, four individual HVAC loads can be managed with no additional accessories required.

Features & Benefits:

• Intelligent Load Management - Manage up to four HVAC loads with no additonal hardware needed, providing a more efficient system, and allowing you to reduce the size of the generator needed to protect your home.
• NEMA 3R Outdoor Rated Enclosure - Designed to give options as to whether to install indoors or outdoors, this enclosure protects the internal components of the switch from rain, snow, ice, and debris.
• Automatic open-transition switching between utility and generator power
• NEMA/UL Type 3R enclosure suitable for indoor or outdoor applications
• Heavy-duty contactor designed for reliable long-term operation
• Integrated Smart A/C Module (SACM) manages up to 4 individual 24 VAC HVAC loads without additional hardware
• Can manage up to 8 additional loads when used with external Smart Management Modules
• Generator controller handles voltage sensing, timing, exercising, and transfer commands
• Manual transfer capability allows the switch to be operated without power applied
• 5 Year Limited Warranty
