Description
Connecting AC Trunk Cables
As installation may require different length trunk cables, it is important to lay out the cable sections to be sure sufficient materials are on hand for the desired layout.
The keyed male connector (A) of
the first AC trunk cable will connect to the female
connector (B) of the h-connector on the j-box trunk
cable. Connectors should snap together easily.
Verify each is securely fastened.Technical Specifications:
- Manufacturer Part Number: APKE00096

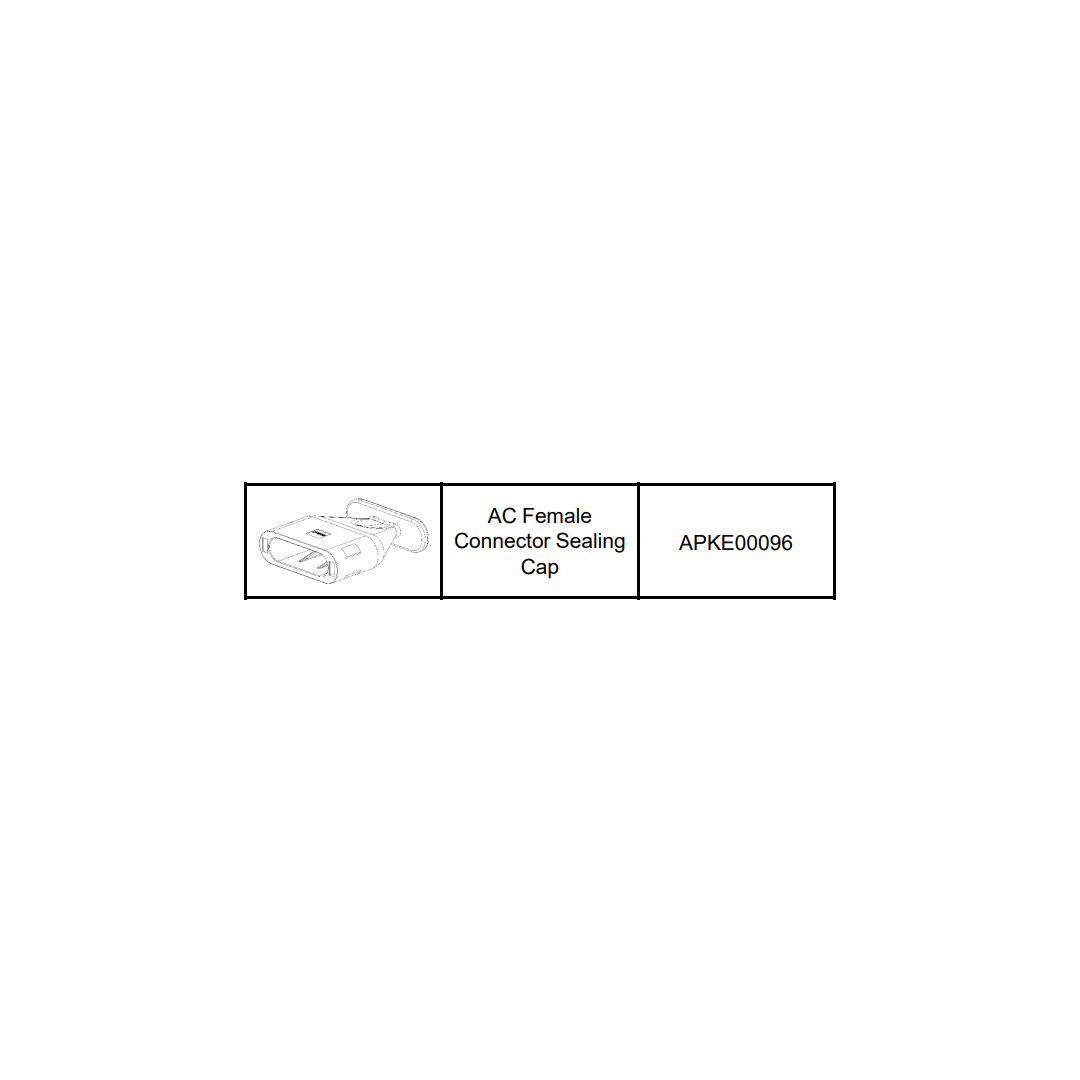

- Description: AC Female Connector Sealing Cap
- Manufacturer: Generac
- Product Type: Microinverter Accessory
- Application: Seals unused AC female connectors on PWRmicro AC trunk cables
- Compatible System: Generac PWRmicro
-
Resources
Datasheet
✔️ No datasheet file resource available. Email support@solux.energy for file request
Quick Installation Guide
