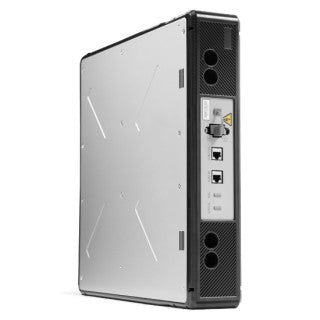

Generac G0080040 PWRcell DCB Battery 3kWh Module

Generac G0080040 PWRcell DCB Battery 3kWh Module

Build a better backup system with the Generac DCB Battery Module for PWRcell™. Add capacity and backup power with as few as three or as many as six modules. Upgrade a PWRcell Battery post-installation with the addition of more DCB modules for more power and capacity.

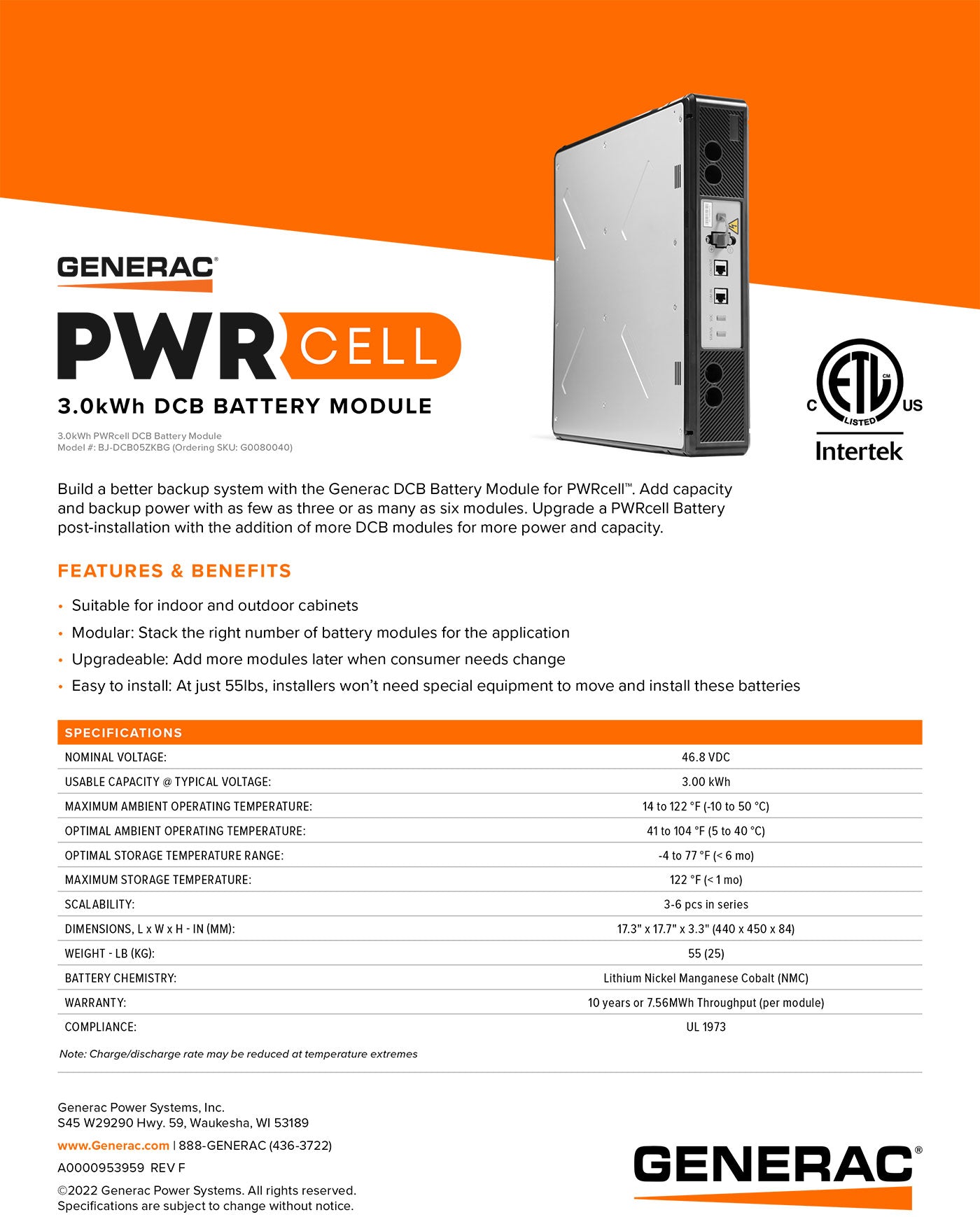

Technical Specifications:

• NOMINAL VOLTAGE: 46.8 VDC
• USABLE CAPACITY @ TYPICAL VOLTAGE: 3.00 kWh
• MAXIMUM AMBIENT OPERATING TEMPERATURE: 14 to 122 °F (-10 to 50 °C)
• OPTIMAL AMBIENT OPERATING TEMPERATURE: 41 to 104 °F (5 to 40 °C)
• OPTIMAL STORAGE TEMPERATURE RANGE: -4 to 77 °F (< 6 mo)
• MAXIMUM STORAGE TEMPERATURE: 122 °F (< 1 mo)
• SCALABILITY: 3-6 pcs in series
• DIMENSIONS, L x W x H - IN (MM): 17.3" x 17.7" x 3.3" (440 x 450 x 84)
• WEIGHT - LB (KG): 55 (25)
• BATTERY CHEMISTRY: Lithium Nickel Manganese Cobalt (NMC)
• WARRANTY: 10 years or 7.56MWh Throughput (per module)
