Description

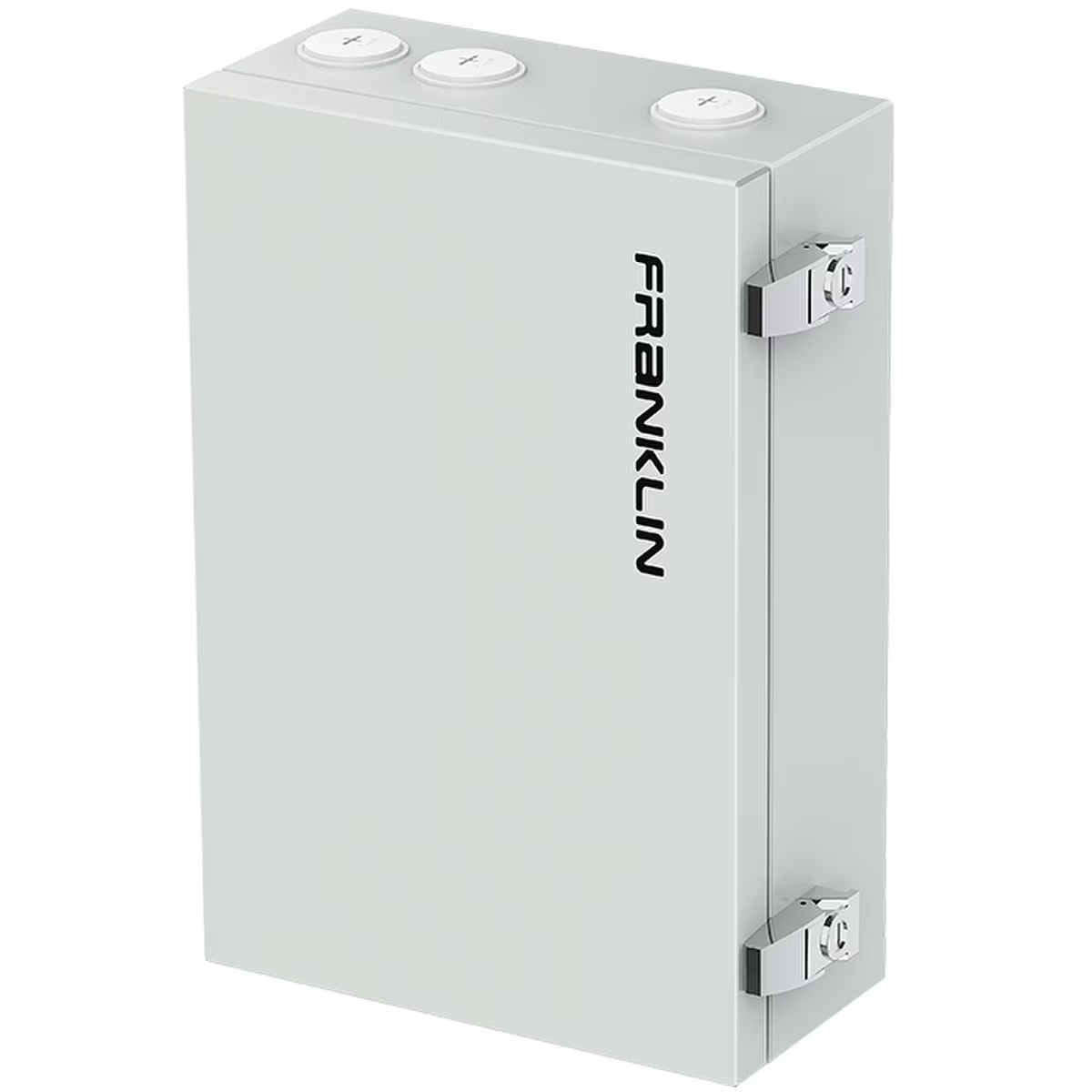

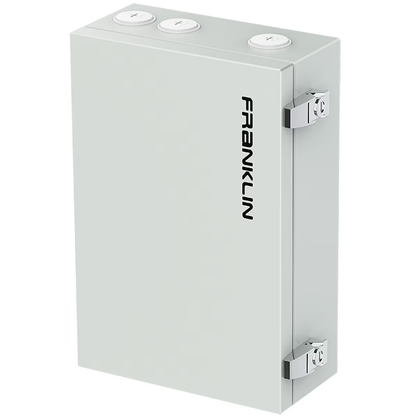

FranklinWH FWH-ACCY-RCV1-US aPbox
It functions as an optional junction box designed for remote or oversized PV (photovoltaic) systems.
Key features:
- Voltage / Current rating: 120/240 V AC, up to 65 A maximum.
- Helps integrate PV systems into the Franklin Home Power (FHP) energy management setup, particularly when the PV system can’t be connected directly via the usual solar breaker (aGate X) due to distance, size, layout, or regulatory constraints.
- It has built‑in metering (via CTs / current transformers) and control capabilities: it can measure power flows from the solar system and disconnect or switch circuits as needed (for example, in blackout or grid export restrictions).

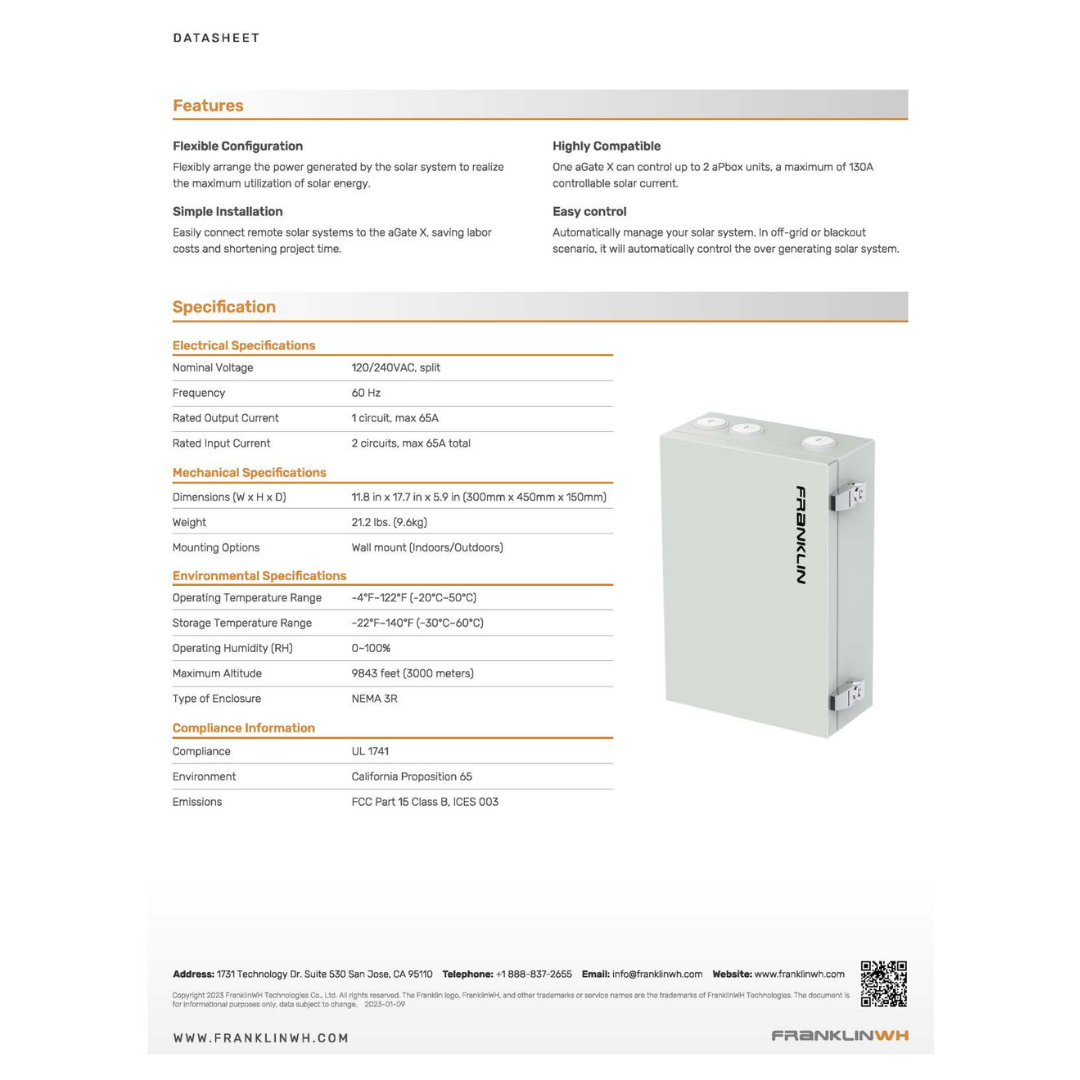

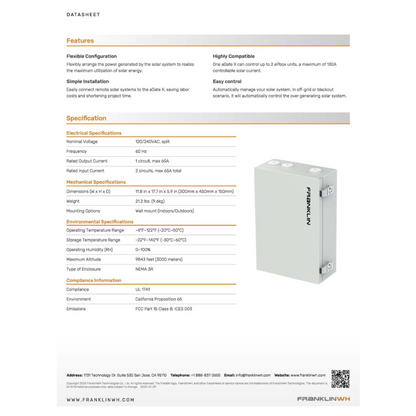

Technical Specifications:
- Manufacturer Part Number: ACCY-RCV1-US
- Shipping Weight: 27 lb
- Shipping Dimensions: 11.8 in x 17.7 in x 5.9 in (300mm x 450mm x 150mm)
- Nominal Voltage: 120/240VAC. split
- Frequency: 60 Hz
- Rated Output Current: 1 circuit. max 65A
- Rated Input Current: 2 circuits. max 65A total
-
Downloads
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
