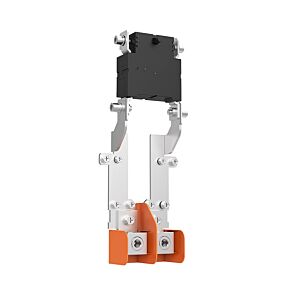

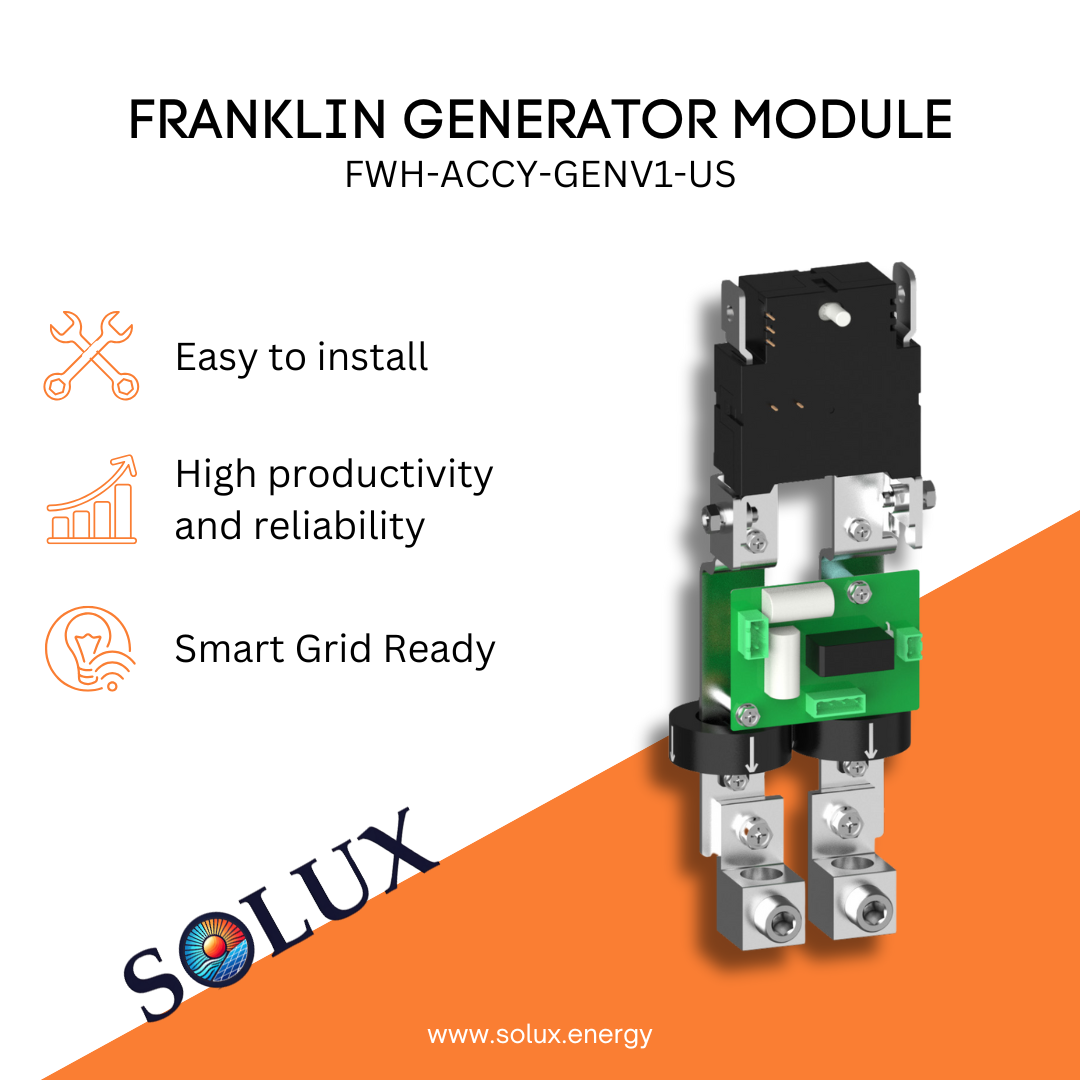

FranklinWH FWH-ACCY-GENV1-US Generator Module

FranklinWH FWH-ACCY-GENV1-US Generator Module

The FranklinWH Generator Module is an optional component of the Franklin Home Power (FHP) energy management solution that provides the ability to smoothly switch between the grid, solar, generators, and battery backup to provide robust home energy management. It is designed to provide seamless and automatic generator switchover and remote manual control via the FranklinWH app. The module can be easily installed without requiring any external components and is compatible with any two-wire or utility sense standby generator, with or without ATS.

Features:

• Integrated Power Management: The generator can both power home loads and charge the aPower X battery.
• Easy Installation: The Generator Module is an optional aGate X component which can be easily installed without requiring any external components.
• Wide Adaptability: Compatible with most models of standby generators. Applicable for new and retrofit installations.
• Better Experience: Seamless and automatic generator switchover and remote manual control via the app.

Technical Specifications:

• AC Voltage: 120V / 240V, Split
• Voltage Range: 204 to 276 V @240 V
• Maximum Continuous Current: 160 A
• Over Current Protection Device for the Generator Module: 200A Max.
• Dimensions (H × W × D): 11.2 × 4.1 × 2.6 in
• Weight: 3.2 lbs
