FranklinWH FWH-ACCY-BLV2-US Backup Expansion Lug Kit

FranklinWH Backup Expansion Lug Kit (ACCY-BLV2-US)

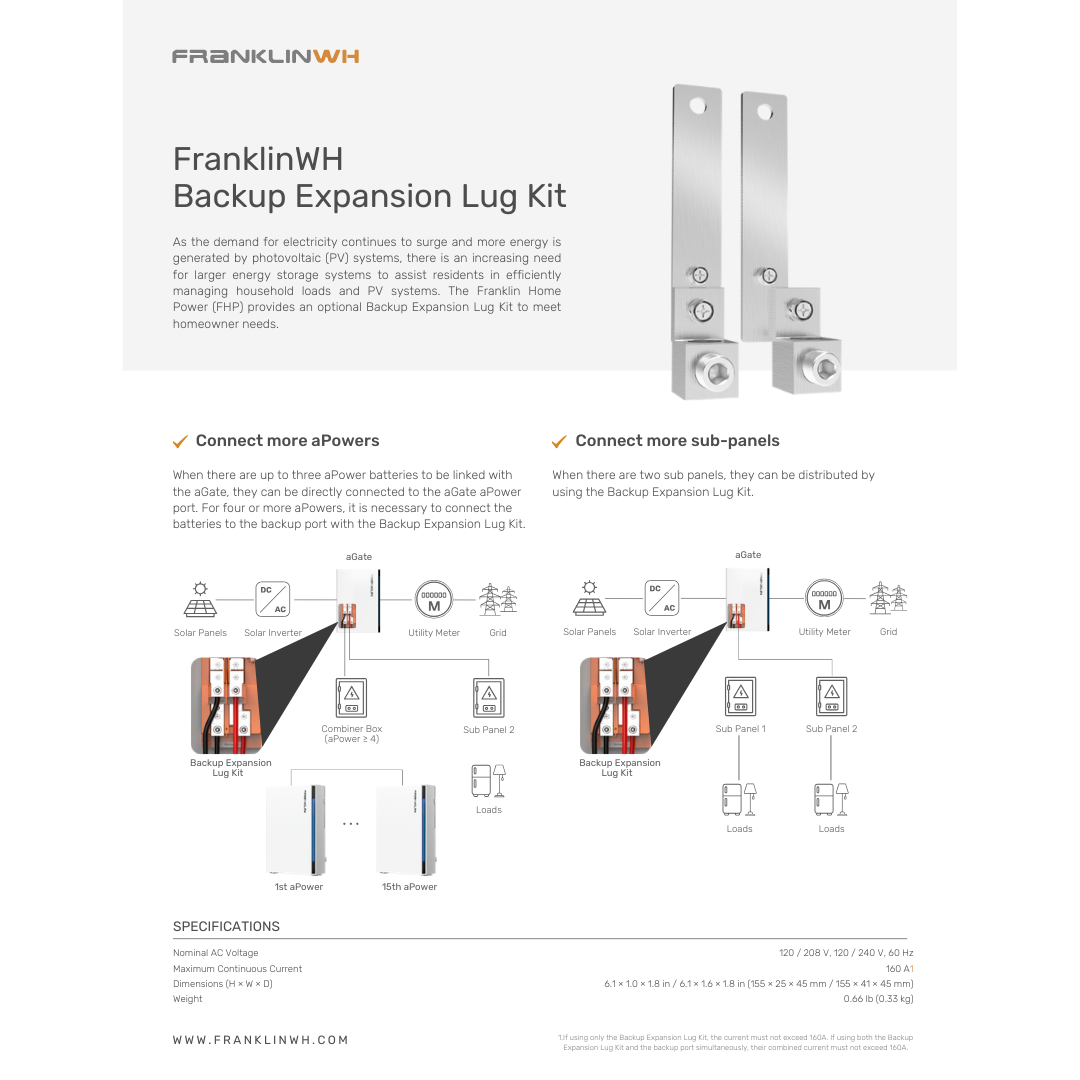

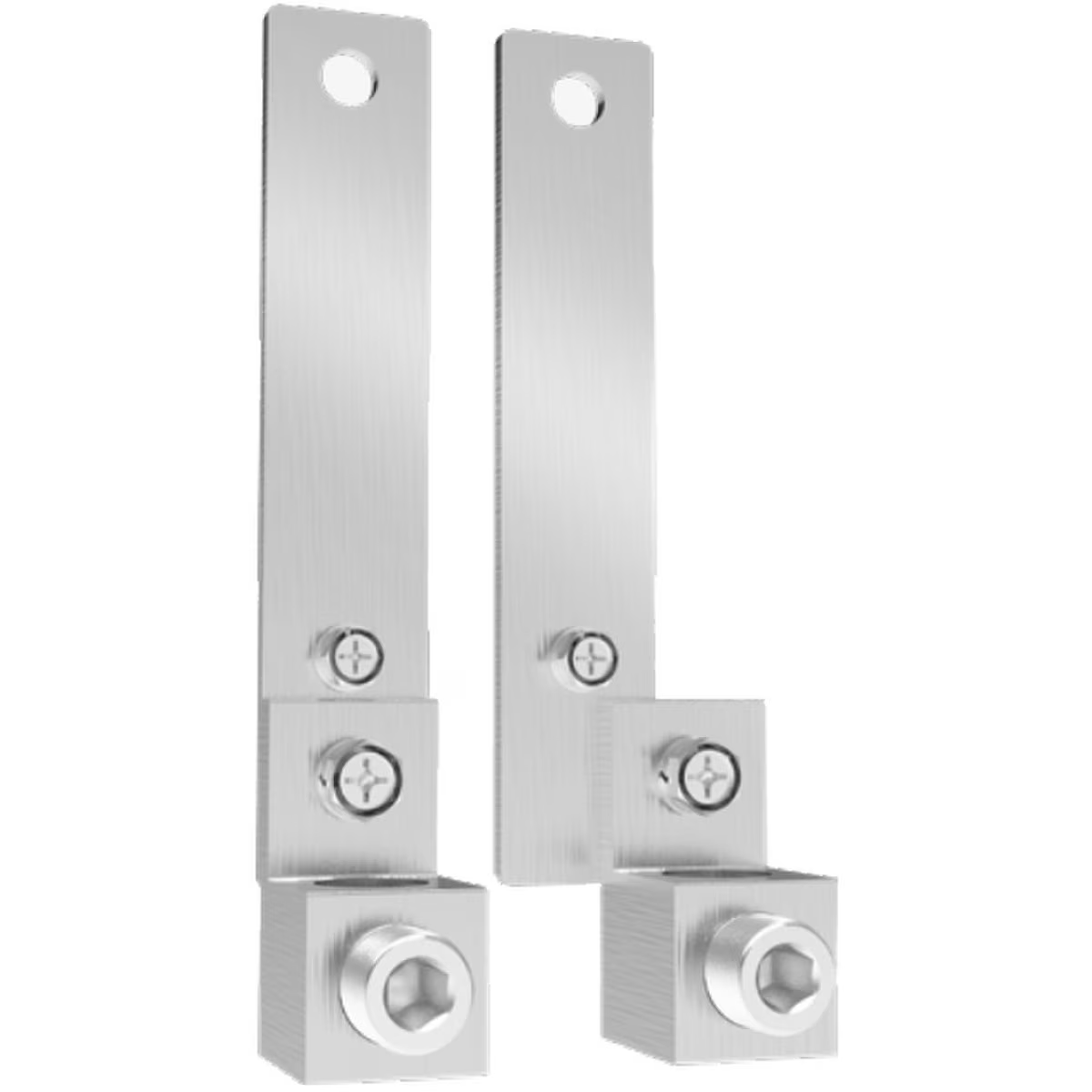

The FranklinWH Backup Expansion Lug Kit (ACCY-BLV2-US) provides additional mechanical terminal connections inside the FranklinWH aGate X energy management controller. Designed to expand system wiring capacity, this heavy-duty pair of metal lugs allows installers to connect 4 or more aPower batteries via an external combiner box or split power output across multiple electrical sub-panels.

By supplying additional terminal access when factory-reserved backup lugs are fully occupied, this kit enables seamless expansion for high-capacity home battery storage systems and multi-panel commercial solar setups.

Key features:

• It includes a pair of lugs that give physical access for multiple aPower connections when the backup panel’s reserved lug locations are already in use. In other words, when you need more connections than the built‑in lugs support.
• It acts as an accessory to expand the number of backup circuit connections available.

Technical Specifications:

• Manufacturer Part Number: ACCY-BLV2-US
• Shipping Weight: 1 lb
• Shipping Dimensions: 6.5 x 1 x 2 in
