Fortress 6.5KW Solar hybrid inverter for non grid export application; Max 13KW PV array; 120/240V single and split phase, 50/60HZ, IP 20 indoor, 5 year warranty, breakers included

Fortress 6.5KW Solar hybrid inverter for non grid export application; Max 13KW PV array; 120/240V single and split phase, 50/60HZ, IP 20 indoor, 5 year warranty, breakers included

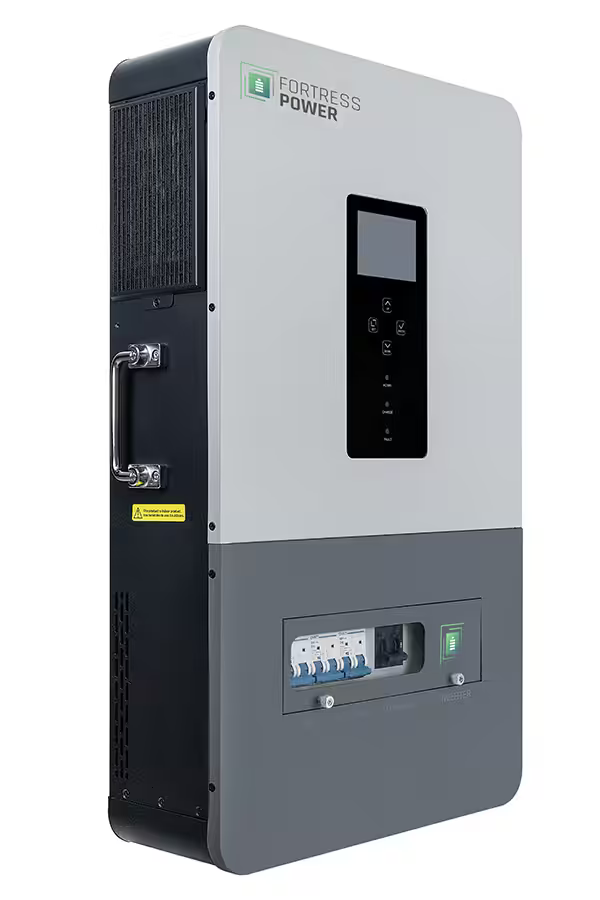

The Fortress Power Solo 6.5K is a powerful and flexible 6.5kW split/single-phase hybrid inverter designed for off-grid living, backup power, and grid-tied solar systems. Featuring a built-in 140A solar charge controller and support for both grid and generator input, the Solo 6.5K Inverter ensures seamless power management and reliable operation in any energy scenario. Its intelligent switching system provides uninterrupted power, while time-of-use scheduling helps homeowners lower utility bills by optimizing when energy is stored and used.

Perfect for residential applications, the Solo 6.5K Inverter supports parallel installation of up to six units—delivering up to 39kW of output power. Optional current transformers (CTs) enhance safety and precision by monitoring current flow and improving system stability. Whether you’re powering a remote cabin, designing a smart microgrid, or adding resilience to your grid-connected home, the Solo 6.5K Inverter delivers clean, stable energy when and where you need it.

Features and Specifications of the DuraRack Max

• Weight: 47.84 lbs (21.7 kg)
• Operating Temperature: 14 ºF – 131 ºF (-10 ºC – 55 ºC), >45 ºC derating
• Protection Level: IP20 (for indoor use only)
• Noise: <60db
• Dimensions (H x W x D): 27 x 16.1 x 5.5 in (686 x 410 x 140 mm)
• Cooling Mode: Fan

INVERTER OUTPUT

• Rated Output Power: 6,500W
• Maximum Peak Power: 13,000 VA
• Rated Output Voltage: 120/240 VAC (Single/Split-Phase)*
• Rated Frrequency: 50/60Hz*
• Output Wave: Pure Sine Wave
• Compatible Battery Type: Lithium-ion battery / lead-acid battery / user- defined battery*
• Rated Battery Voltage: 48 Vdc
• Voltage Range: 40 Vdc-60 Vdc*
• Maximum Battery Charge Power (with PV) 140 A DC*
