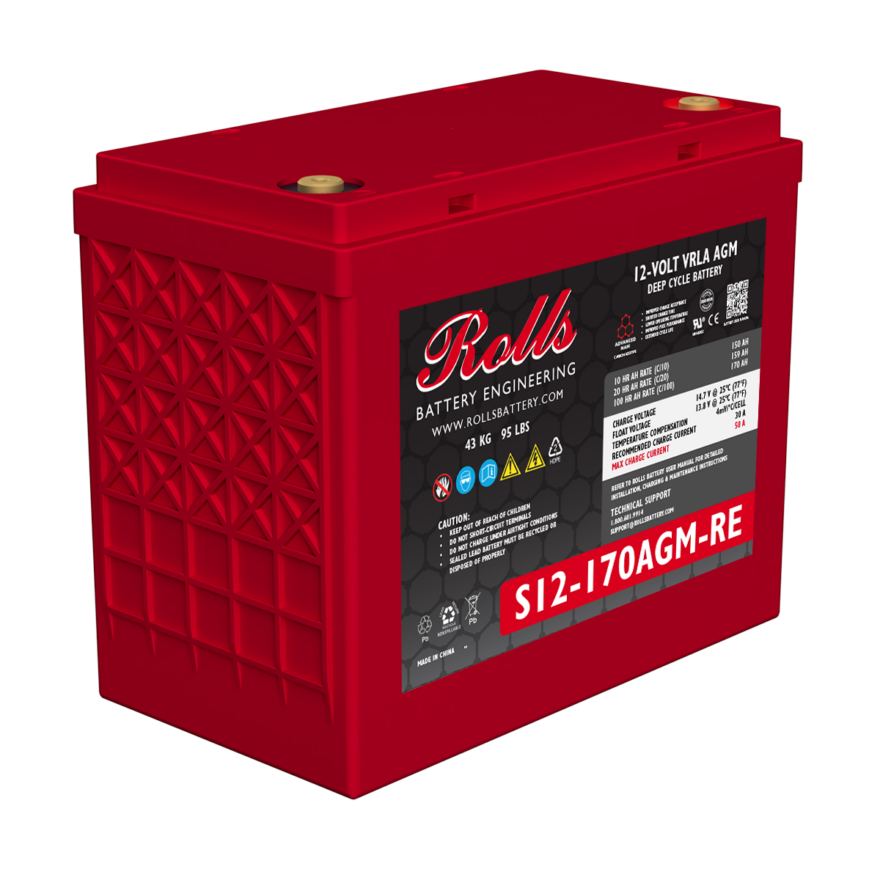

Rolls Surrette S12-170AGM 12VDC 159 Ah AGM Battery

Rolls Surrette S12-170AGM 12VDC 159 Ah  AGM Battery

Safety

• Certificate / Compliance: UL Recognized – MH48952
• Safety Standard:  MH48952– Standby Batteries
• Transportation: UN2800 – Batteries, wet, non-spillable
• Battery Standard: ISO 9001 - Quality management

Battery Management System (BMS)

• Plastics are UL94 HB (UL94 V0 available)
• Valve regulated design with integral flame arrestor
• Non-hazardous, Non-spillable

Technical Specifications:

• Weight: 43kg / 95 lbs
• Length: 327 mm / 12.9"
• Width: 180 mm / 7.09"
• Height Incl. Term: 276 mm / 10.9"
• Container: ABS
• Cover: ABS
• Handles:  Nylon Strap
• Battery Type: VRLA GEL
• Series: VRLA AGM-S
• Volts: 12
• Cells: 6
• Design: 8D
• Terminal Type: F10(M8)
• Included Hardware: M8 stainless bolts & washers & TP08 adapter
• Size & Thread: M8
• Charge Voltage Range: 14.7V @ 25°C (77°F)
• Float Voltage Range: 13.8V @ 25°C (77°F)
• Recommended Charge Current: 30 A
• Maximum Charge Current: 45 A
• Self-Discharge Rate: Less than 2% per month at 25°C (77°F)
• Internal Resistance: 4 mΩ
