EndurEnergy Battery Rack for Residential Energy Storage

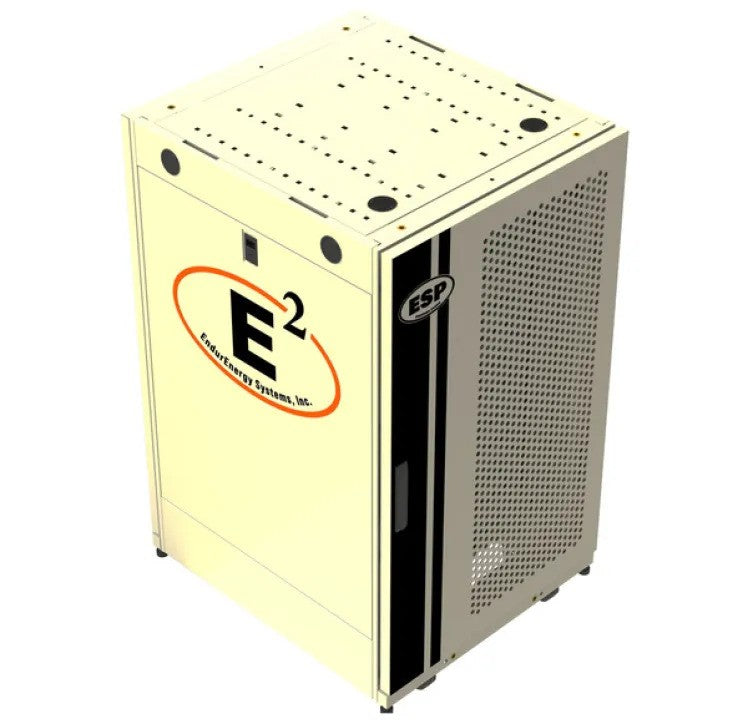

The EndurEnergy ESP-R6 Battery Rack Enclosure is a heavy-duty steel cabinet engineered for organizing residential battery storage modules. Built specifically for EndurEnergy ESP series equipment, this powder-coated floor-standing enclosure streamlines energy storage installations by housing multiple battery modules and control electronics in a single organized footprint.
Designed for indoor deployment, the cabinet supports either seven ESP-5K HL 5.0 kWh batteries (providing up to 35 kWh total storage) or six ESP-5K HL batteries alongside one ESP-BCU Battery Control Unit (providing up to 30 kWh storage with integrated BMS management). Constructed from durable steel with a clean gray or white finish, this 208.8 lb (94.72 kg) rack provides structural protection and clean cable management backed by a 10-year manufacturer warranty.
- Model: ESP-R6
- Series: ESP - Battery Rack
- Manufacturer: EndurEnergy Systems
- Dimensions (H x W x D): 45.2" x 29.7" x 26" (1148mm x 755mm x 660mm)
- Weight: 208.8 lbs. (94.72 kg)
- Equipment Mounting Capacity: 6 ESP-5K HL and 1 ESP-BCU HL / 7 ESP-5K HL
- Material: Steel
- Color and Finish: Gray or White / Powder Coated
- Protection Level: Intended for Indoor Use Only
- Warranty: 10 Years
- Compliance: UL9540, UL1973, CEC and SGIP pending
-
Resources

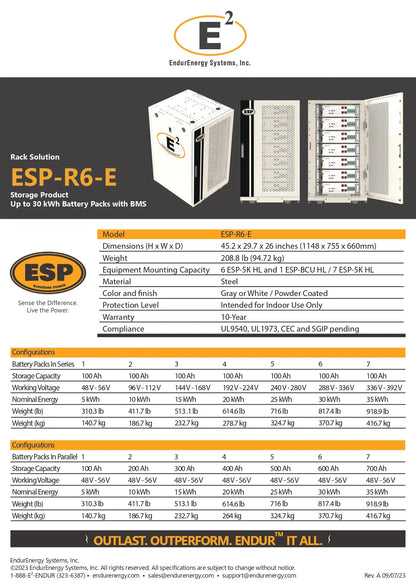

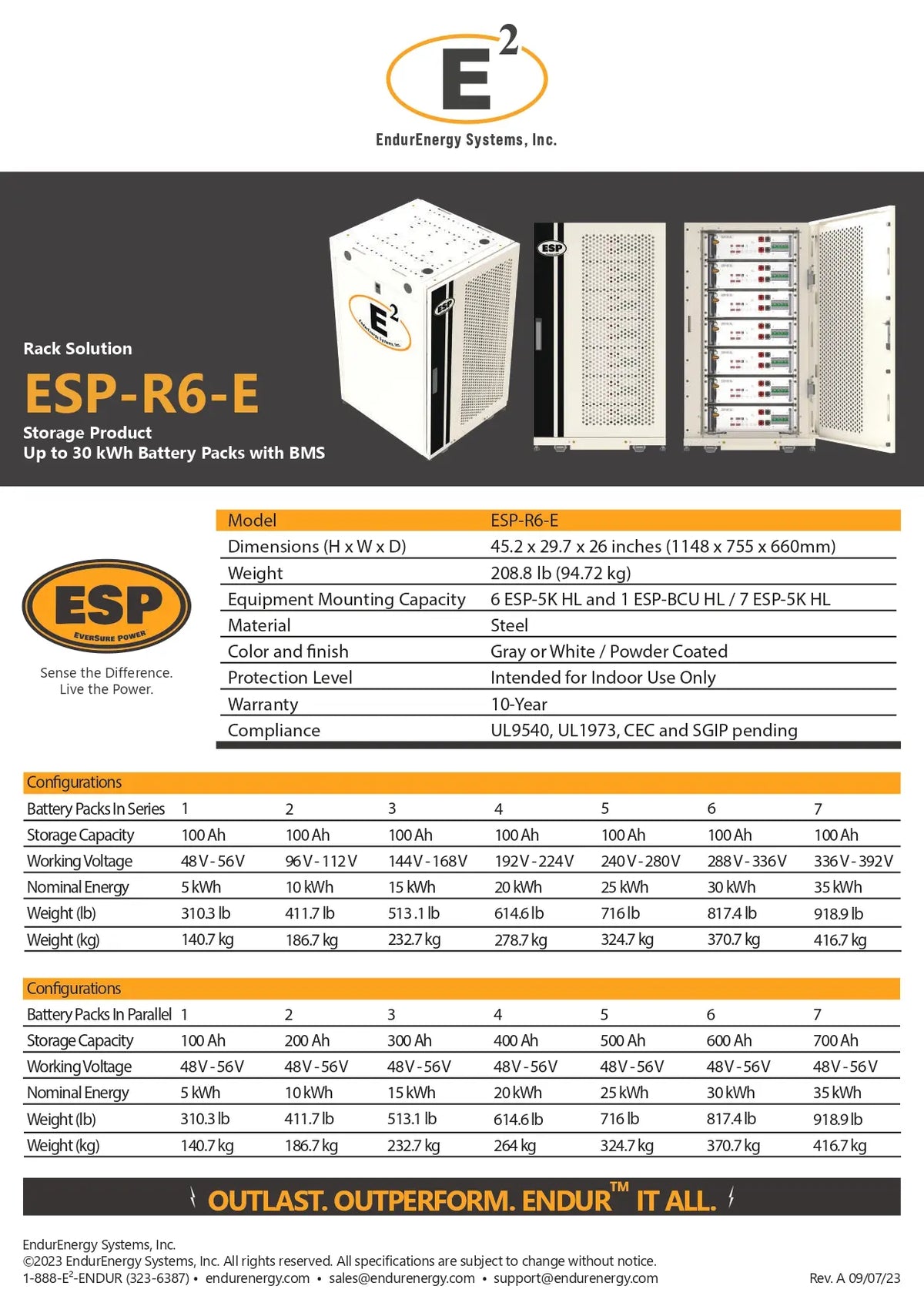

Datasheet
✔️ Download Datasheet
Quick Installation Guide
No quick installation guide file resource available. Email support@solux.energy for file request.
Warranty
No warranty file resource available. Email support@solux.energy for file request.
