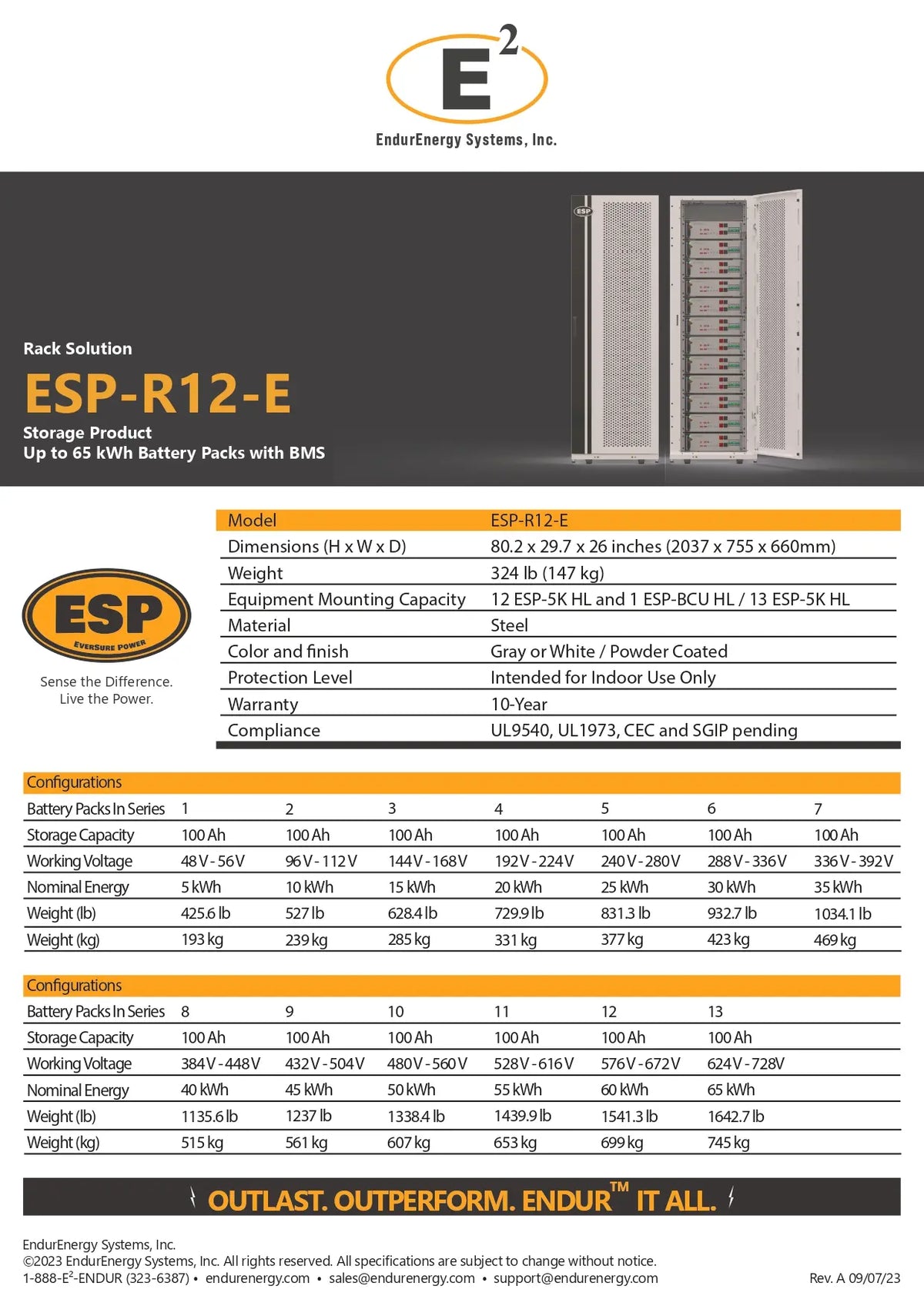

  • A technical specification sheet for the Endur ESP-R12-E rack solution, showing a vertical rack unit on the right side and extensive tables on the left detailing dimensions, capacities, and configurations for models ESP-019 through ESP-123.

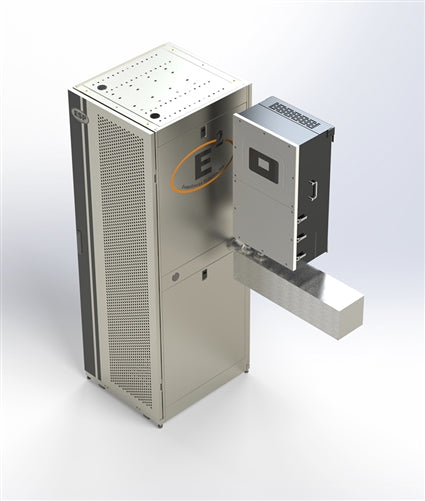

  • A silver and gray industrial server rack or enclosure system with a perforated side panel and an attached modular module, shown on a clean light gray studio background.
1 3

EndurEnergy Racking ESP-R12 All ESP-5100 Models 12 x 5.12 kWh Battery Packs

$1,962.86 USD
$1,962.86 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Component Type: Floor-standing high-capacity battery racking enclosure.
✔️ Double Capacity Scalability: Houses up to 12 lithium iron phosphate (LFP) battery modules (such as the ESP-5K or ESP-5K HL), doubling the storage capacity of the smaller 6-slot ESP-R6 to yield up to 61.44 kWh - 65 kWh total storage per cabinet.
✔️ Integrated Power & Wire Management: Features integrated DC busbar infrastructure, internal wire routing channels, and protective locking doors to streamline code compliance and simplify setup.
✔️ BMS & Control Unit Integration: Built to seamlessly integrate with EndurEnergy Battery Control Units (ESP-BCU), ensuring balanced charging/discharging and communication across all 12 modules.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

Endurenergy

  • Description

    EndurEnergy ESP-R12 Indoor Battery Rack Enclosure

    The EndurEnergy ESP-R12 Battery Rack Enclosure is a high-capacity steel cabinet engineered for consolidating large-scale residential and commercial energy storage modules. Built specifically for EndurEnergy ESP series hardware, this floor-standing enclosure simplifies multi-battery installations by housing up to 13 modules within a single organized footprint.

    Designed for indoor deployment, the cabinet supports either 13 ESP-5K HL 5.0 kWh batteries (delivering up to 65 kWh total capacity) or 12 ESP-5K HL batteries alongside one ESP-BCU Battery Control Unit (delivering up to 60 kWh with integrated BMS management). Constructed from durable powder-coated steel in a white or gray finish, this 324 lb (147 kg) rack provides structural protection and clean cable routing backed by a 10-year manufacturer warranty.

    (ESP-R12 Battery Rack only, Batteries and BCU sold separately)

    Technical Specifications

    • Model: ESP-R12
    • Series: ESP - Battery Rack
    • Manufacturer: EndurEnergy Systems
    • Dimensions (H x W x D): 80.2" x 29.7" x 26" (2037 x 755 x 660mm)
    • Weight: 324 lbs. (147 kg)
    • Equipment Mounting Capacity: 12 ESP-5K HL and 1 ESP-BCU HL / 13 ESP-5K HL
    • Material: Steel
    • Color and Finish: Gray or White / Powder Coated
    • Protection Level: Intended for Indoor Use Only
    • Warranty: 10 Years
    • Compliance: UL9540, UL1973, CEC and SGIP pending

  • Resources

    Datasheet

    ✔️ Download Datasheet

    Quick Installation Guide

    No quick installation guide file resource available. Email support@solux.energy for file request.

    Warranty

    No warranty file resource available. Email support@solux.energy for file request.


Download Datasheet of EndurEnergy Battery Rack
