Description

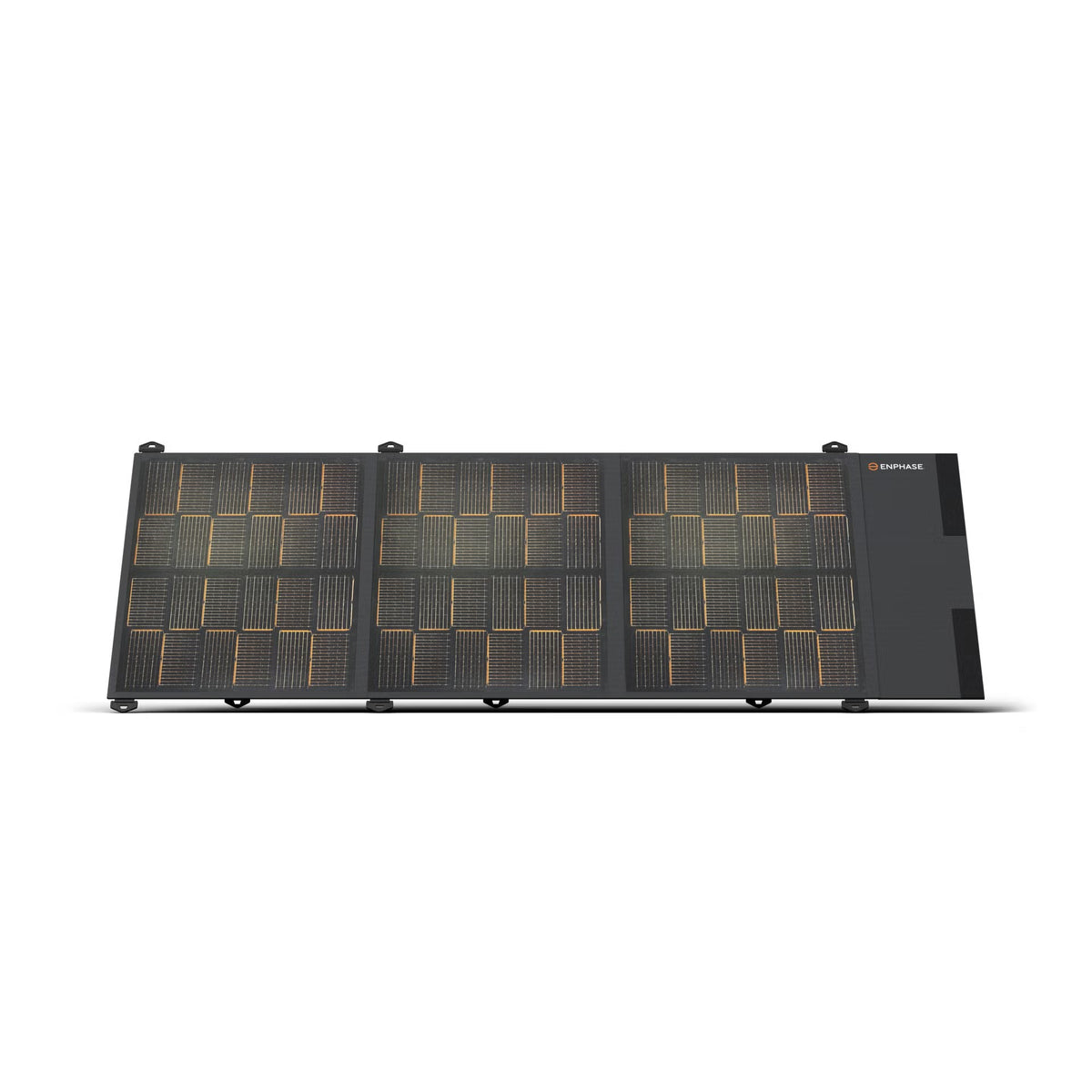

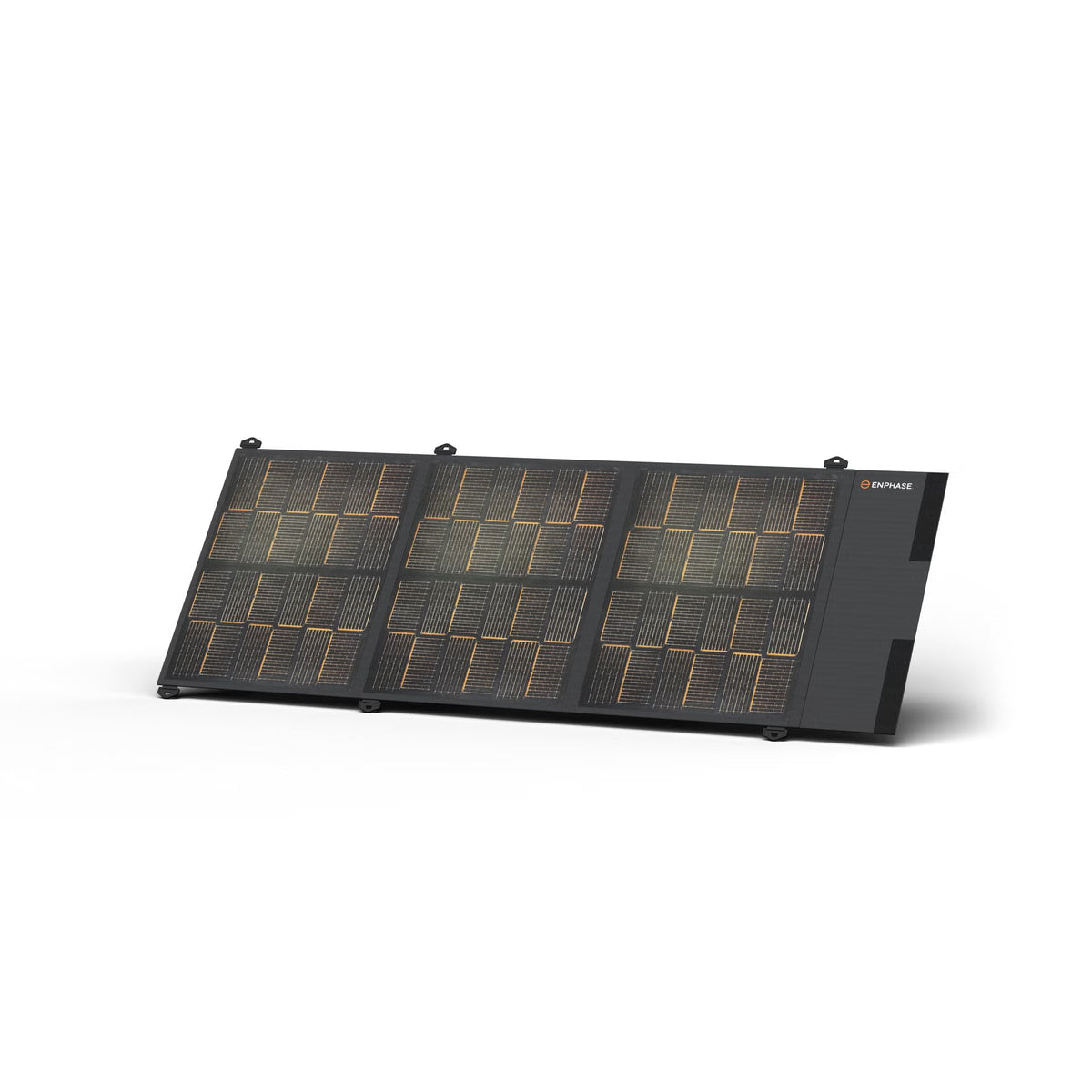

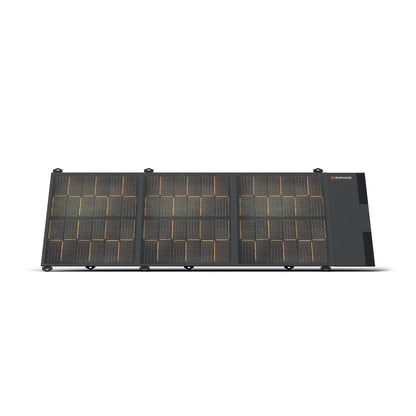

Enphase PES-PSP-200 IQ 200W Foldable Portable Panel
The IQ Portable Panel delivers up to 200 W of charging power. Connect a maximum of two panels for up to 400 W. Covered by a 5-year limited warranty, it’s thin, durable, and easy to set up with built-in legs and stakes. Fold it up for easy transport and storage.
Technical Specifications:
- Manufacturer Part Number: PES-PSP-200
- Cell type: PERC monocrystalline
- Number of cells: 72
- Rated power (Pmax): 200 W
- Voltage at Pmax (Vmp): 19 VDC
- Current at Pmax (Imp): 10 A
- Optimal operating temperature: -40°F to 185°F (-40°C to 85°C)
- Connector type: MC4
- Portable: Yes; foldable with easy-to-carry solar panel jacket
- Support legs: 3
- Surface: UV-resistant ETFE fabric
- Dimensions (folded):
Length: 29.0 in
Width: 23.0 in
Thickness: 1.2 in
- Dimensions (unfolded):
Length: 29.0 in
Width: 76.0 in
Thickness: 0.3 in
- Weight: 20.9 lb
-
Datasheet
-
Installation
-
Warranty
No warranty file resource available. Email support@solux.energy for file request.
