Description

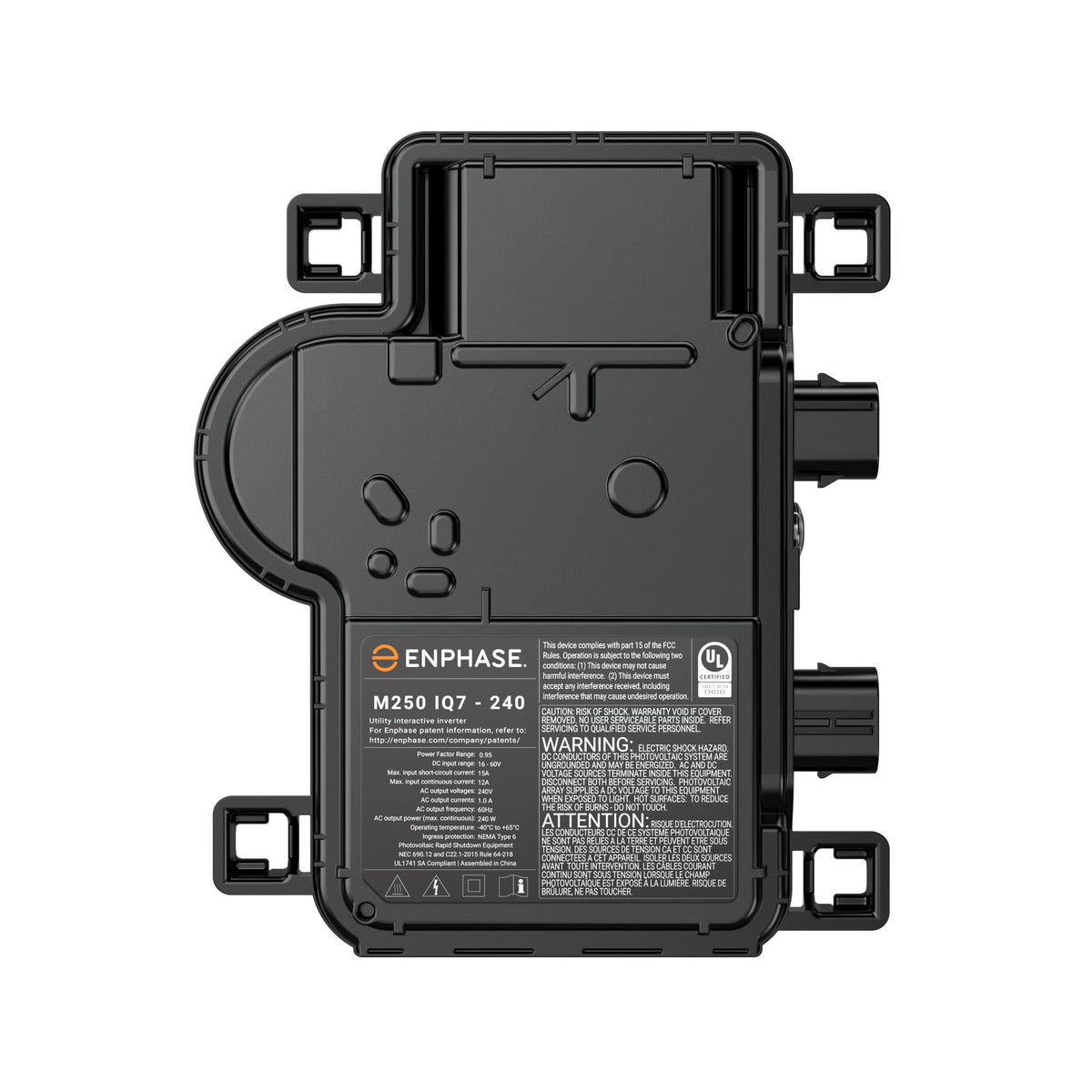

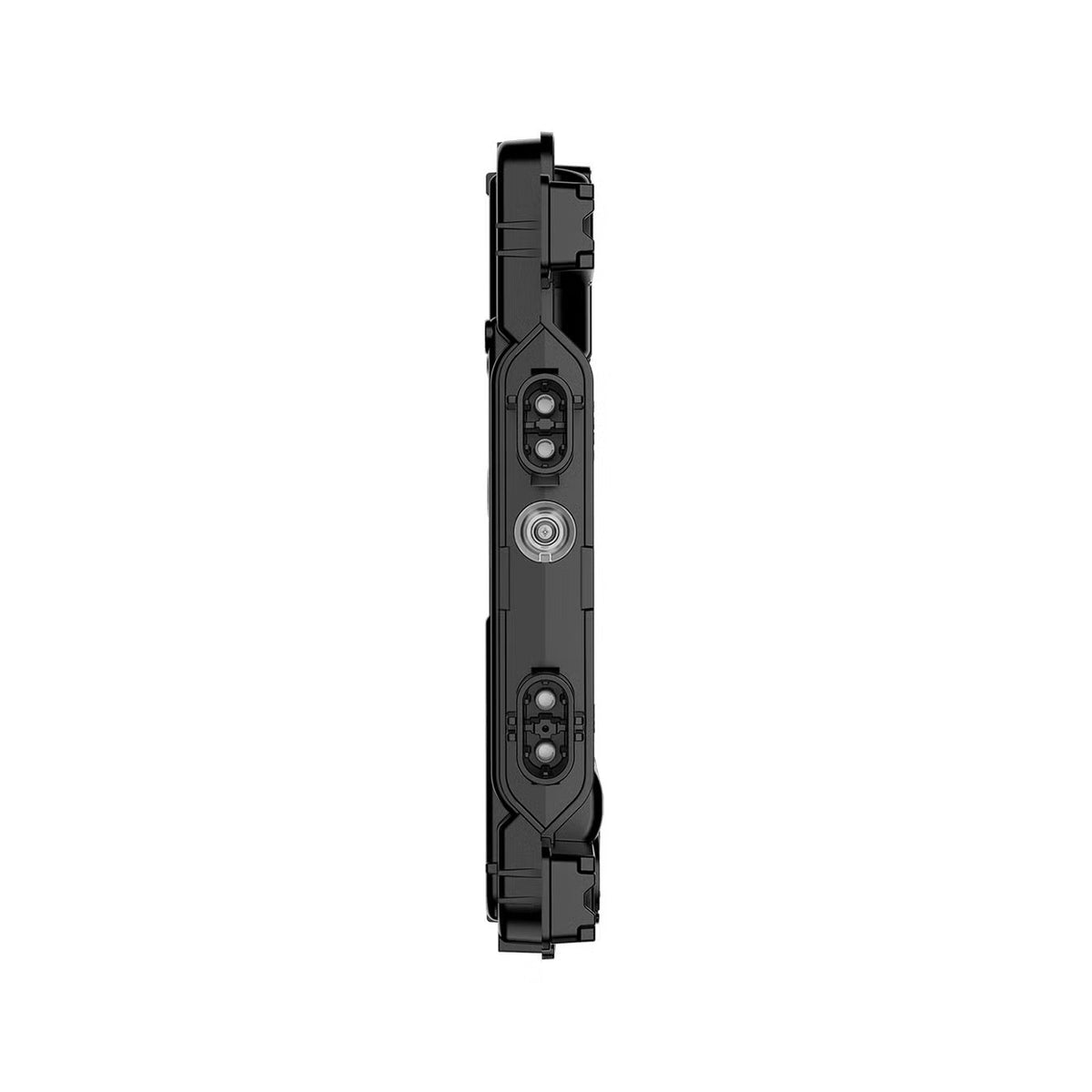

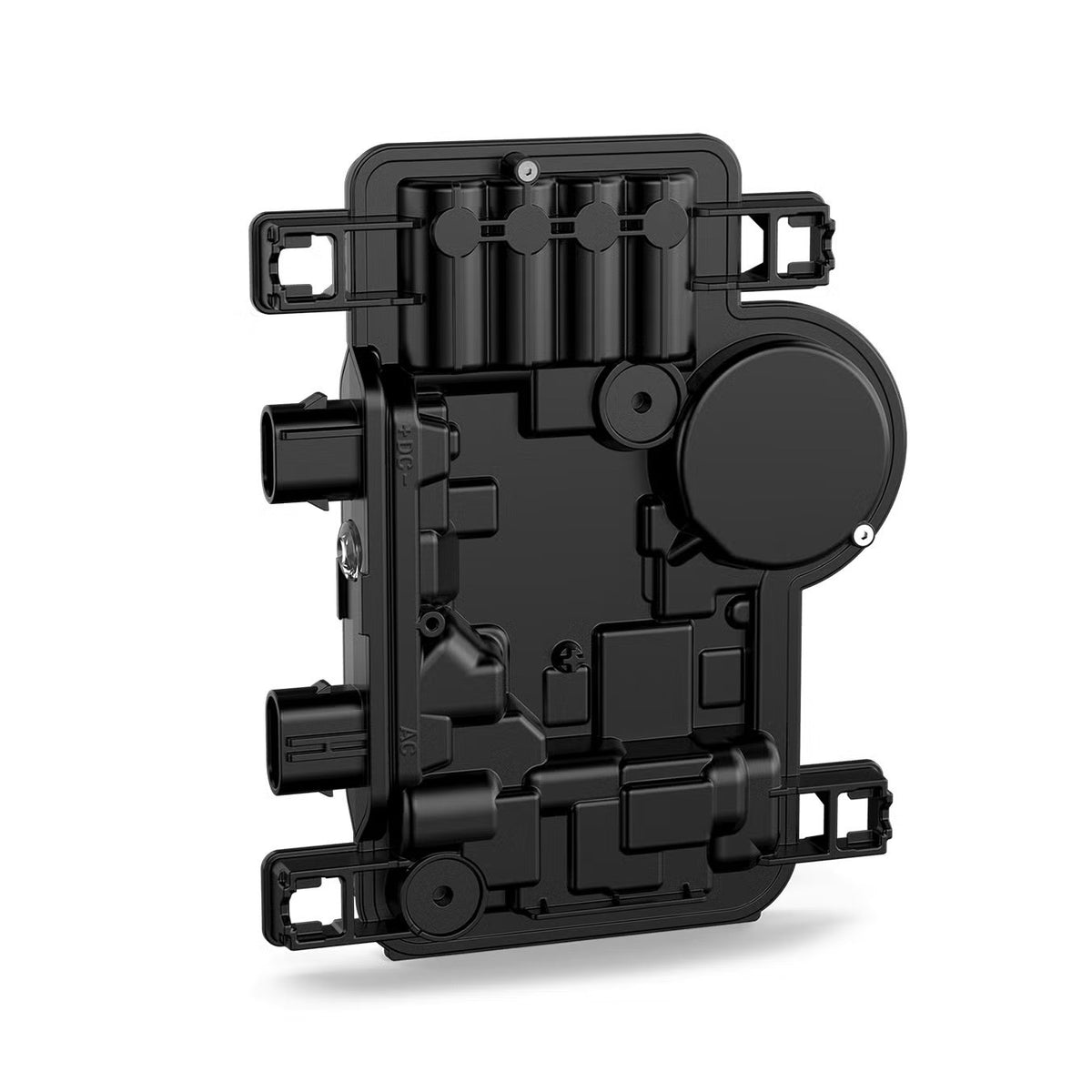

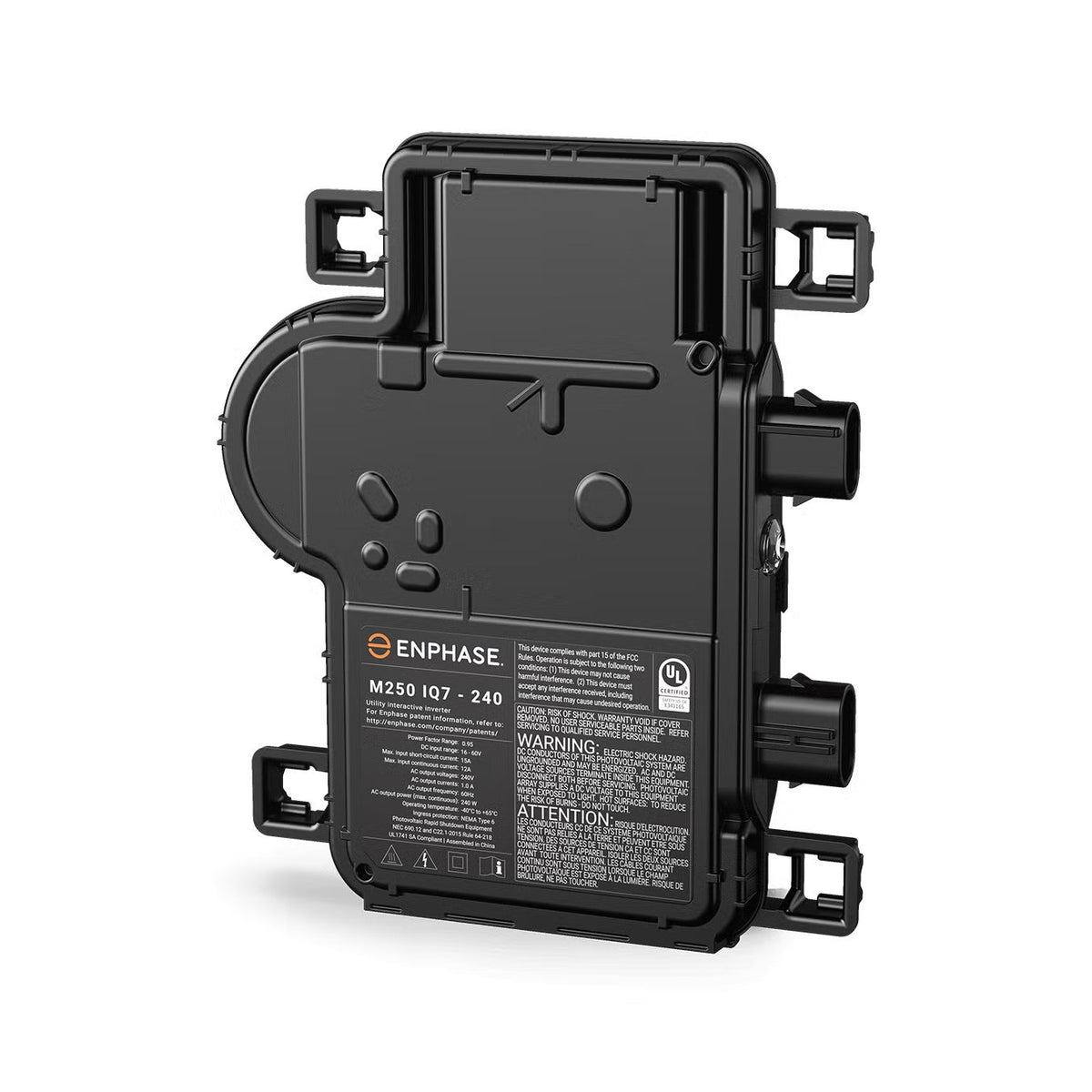

Enphase M250240-IQ7-S22-US M250 Microinverter
Enphase M250 Microinverters are built on the IQ7 Series platform, allowing for easy replacement and site expansion of 240 VAC solar installations. The DC circuit is isolated and insulated from the ground, so no ground electrode conductor (GEC) is required, simplifying installation, enhancing safety, and saving on costs.
The M250 Microinverter integrates perfectly with the Engage Cable, Envoy S, and Enphase Cloud for remote monitoring and control. The IQ Microinverter platform extends the reliability standards set forth by previous generations by completing over a million hours of power-on testing, enabling Enphase to provide an industry-leading limited warranty of up to 25 years.
Key Benefits:
- 240 W continuous AC output with 250 VA peak power, suitable for higher-power PV modules
- High efficiency: up to 97.4% peak efficiency and 97% CEC weighted efficiency
- Broad module compatibility: supports 60-cell and 72-cell PV modules, typically paired with modules around 210–350 W+
- MC4 locking connectors (S22 version) provide straightforward PV module connection
- Durable outdoor design: NEMA 6 enclosure and operation from −40°C to +65°C
- Natural convection cooling eliminates the need for cooling fans
- Integrated ground and ground-fault protection simplify installation and reduce additional grounding requirements
Technical Specifications:
- Manufacturer: Enphase
- Manufacturer's Part #: M250240-IQ7-S22-US
- Peak output power: 250 VA
- Module pairing: 210–350 W
- Maximum continuous output power: 240 VA
- Operating range: 16–60 V
- Length: 173 mm
- Width: 171 mm
- Height: 30 mm
- Weight: 3.4 lbs
- Compatibility: 60-cell and 72-cell PV modules, Envoy S, IQ Battery, Engage Cables, IQ Cables
- 25 year-limited warranty
-
