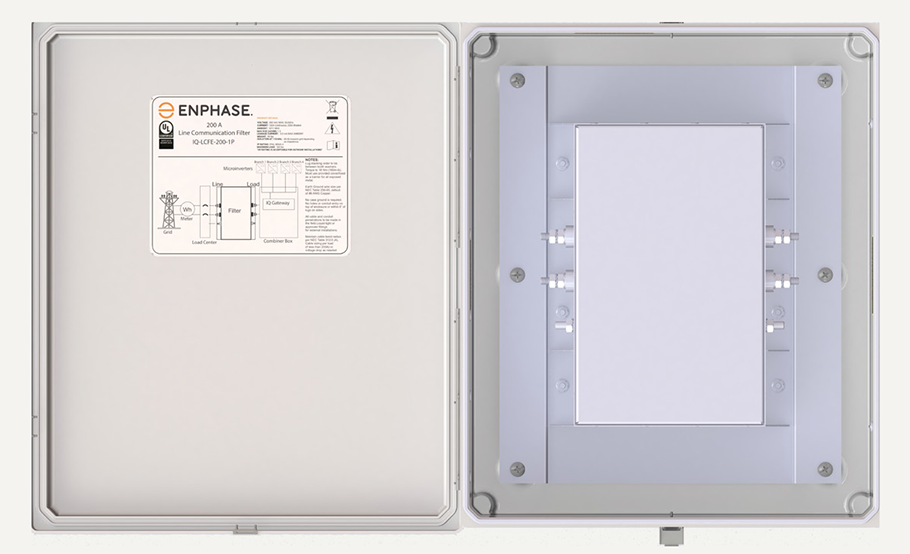

Enphase IQ-LCFE-200-1P 200A Single-Phase Line Communication Filter

Enphase IQ-LCFE-200-1P 200A Single-Phase Line Communication Filter

The Enphase IQ-LCFE-200-1P is a 200 A single-phase Line Communication Filter designed to improve Power Line Communication (PLC) reliability in Enphase solar energy systems by filtering and isolating communication signals between electrical circuits.

Technical Specifications:

• Manufacturer Part Number: IQ-LCFE-200-1P

• Manufacturer: Enphase
• Maximum current per line: 160 A continuous (200 A protective relay)
• Maximum voltage: 300 VAC + 10%

• Frequency: 60 Hz

• Maximum: DCR 1.5 mΩ

• Isolation at 110 kHz: 60 db

• Ambient temperature range: -40°C to 50°C (-40°F to 122°F)

• IP rating: IP66, NEMA4

• Weight: 45 kg (99 lb)

• Dimensions (h × w × d): 609.6 mm × 508 mm × 203.2 mm (24" × 20" × 8")

• Certification: UL 1741

• Terminal style/size: M10 Stud
