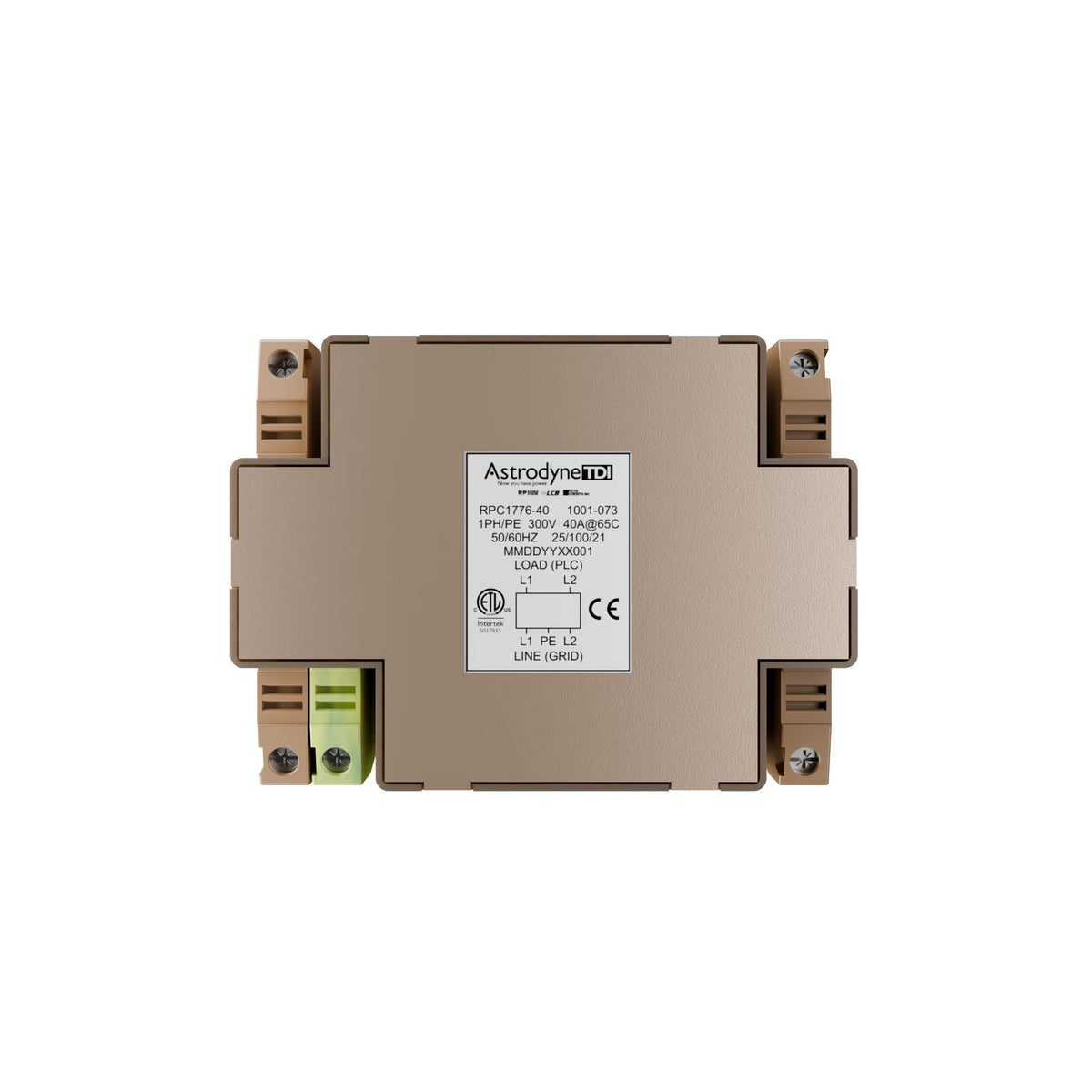

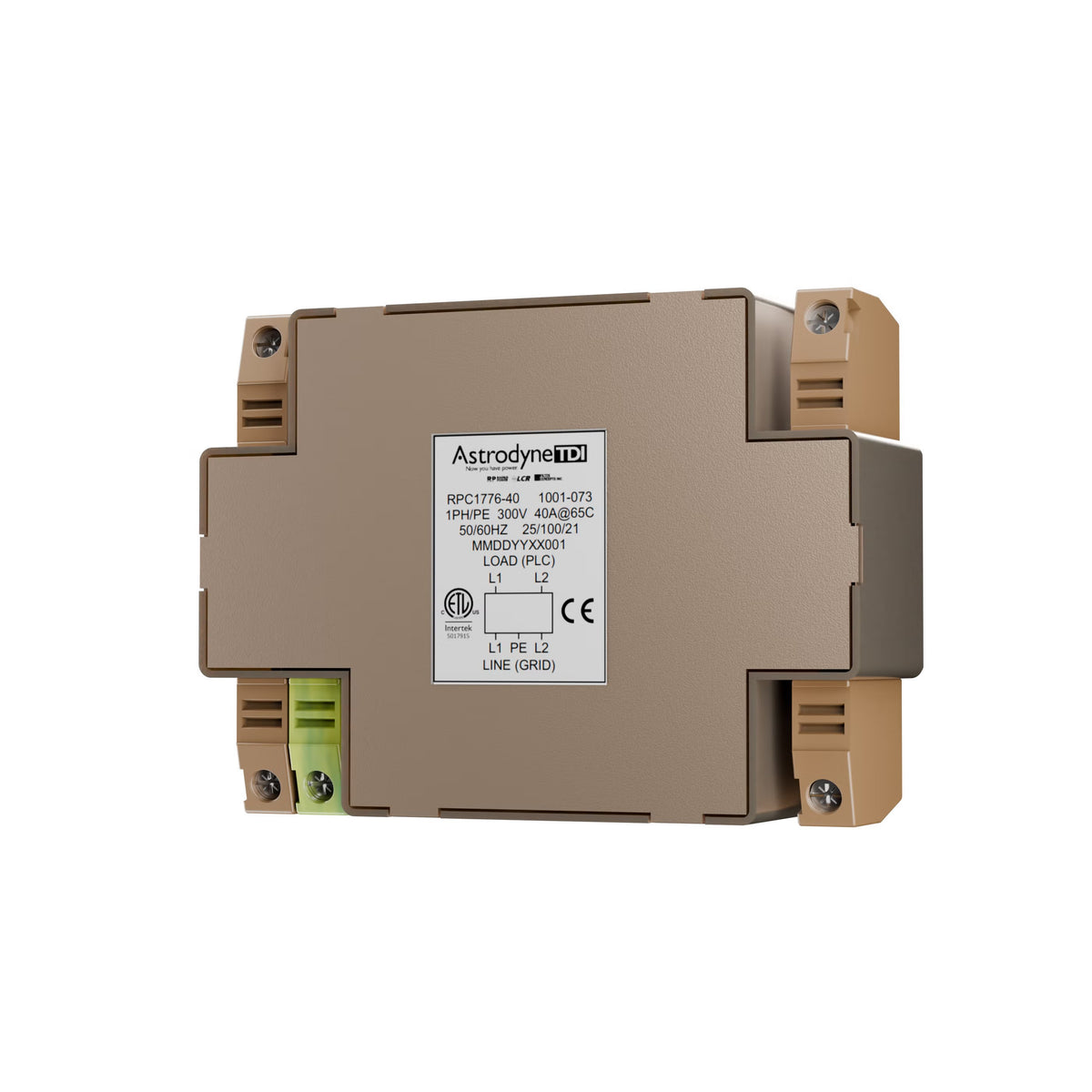

Enphase IQ-LCF-040-1P Power line filter 40A single phase

Enphase IQ-LCF-040-1P Power line filter 40A single phase

In solar installations, power line filters are essential for ensuring reliable communication between Enphase microinverters in complex electrical environments. By isolating PLC domains, these filters prevent interference between different communication networks, guaranteeing system stability. This is particularly important when multiple IQ Gateways are installed on a single utility transformer or when significant electrical noise from site loads disrupts communication signals. Power line filters play a vital role in maintaining the integrity of the Enphase microinverter communication network, ensuring optimal performance and reliability. Suitable for use with IQ7 and IQ8 Series Microinverters.

Technical Specifications:

• Manufacturer Part Number: IQ-LCF-040-1P

• Manufacturer: Enphase
• Max Voltage: 300 VAC
• Max Current (at ambient temp): 40 A (at 149°F)
• Frequency: 50 and 60 Hz
• Ambient temperature range: -40°F to 149°F
• Weight: 1.32 lbs (0.6 kg)
• Dimensions: 123.2 mm × 48.2 mm × 90 mm (4.85" × 1.90" × 3.54")
• 2 Year Limited Warranty

Compatibility:

• IQ8 Series Microinverters
• IQ7 Series Microinverters
• IQ Gateway
