Enphase IQ-FERR-065 65 A Gapped Ferrite

EEnphase IQ-FERR-065 65 A Gapped Ferrite

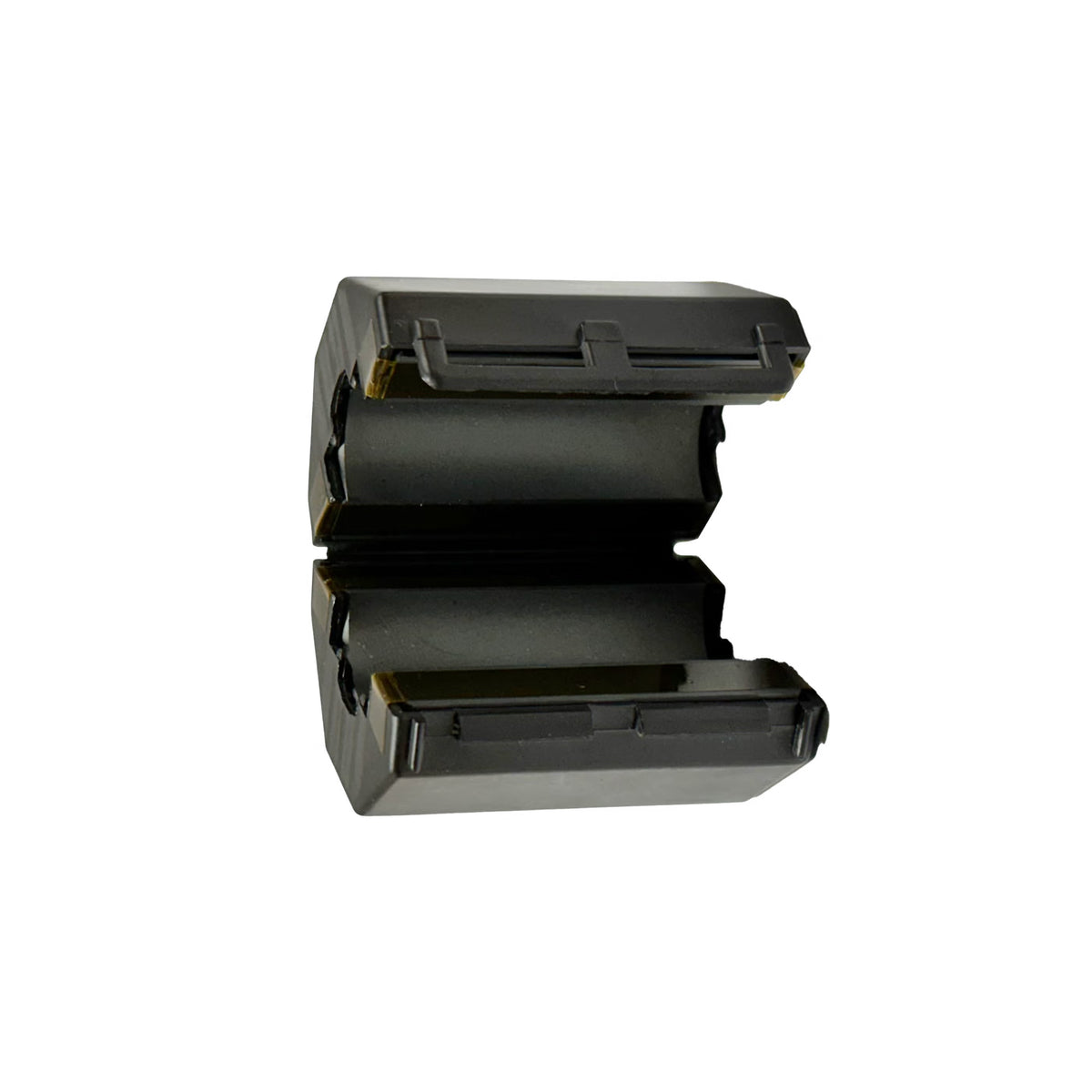

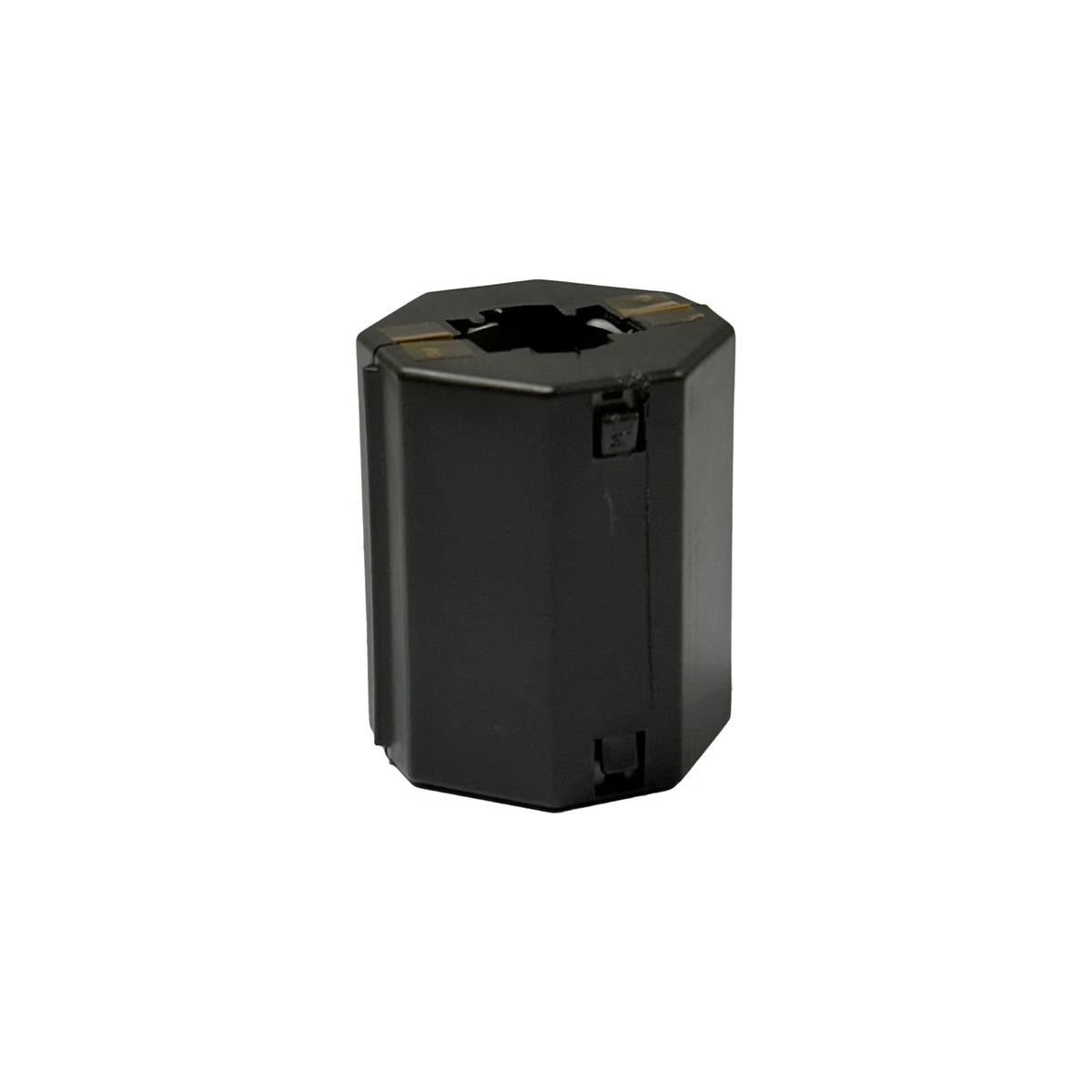

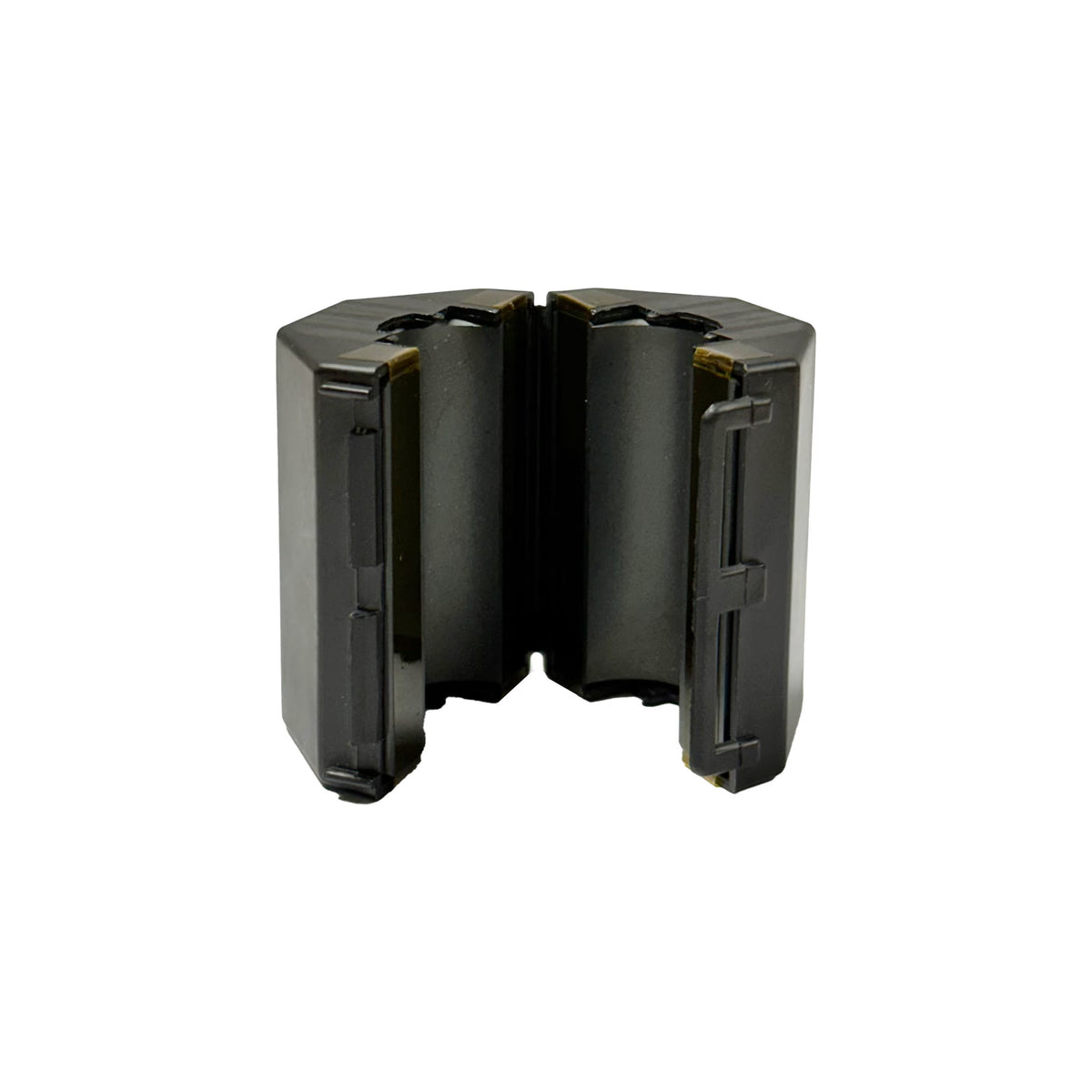

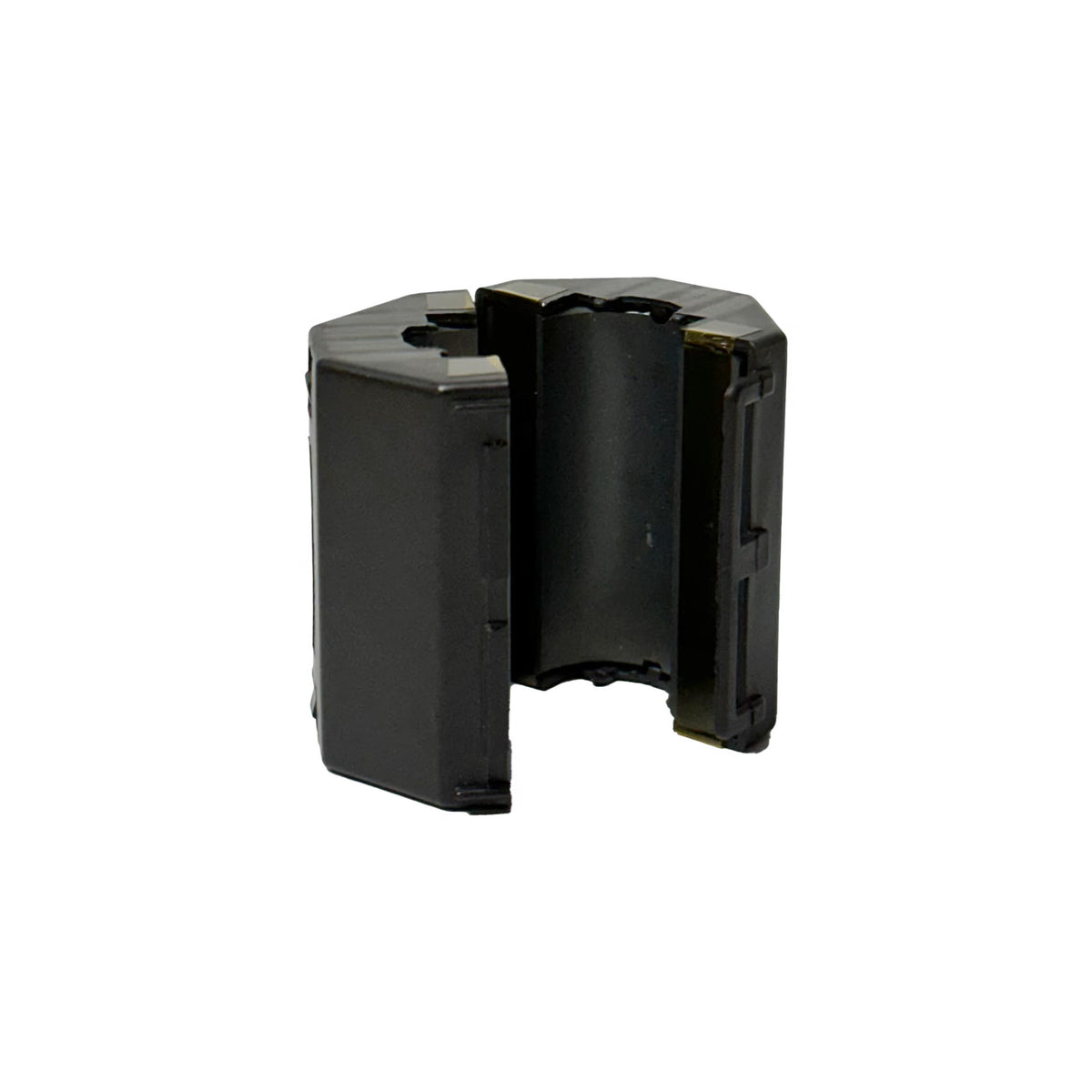

The Gapped Ferrite filters noise in powerline communications between Enphase microinverters and the IQ Gateway in an Enphase Energy System. This ferrite core is a passive electronic component designed to improve signal strength and prevent loss of communication between the microinverters and the gateway.

The Gapped Ferrite is helpful for installations on sites where the powerline communication signal is disrupted due to electrical noise generated by other devices or appliances present on the site. An attenuated powerline communication signal will result in loss of communication between the Enphase microinverters and the IQ Gateway, leading to disruptions in energy monitoring. Installing a Gapped Ferrite at these sites will help ensure reliable communication and monitoring.

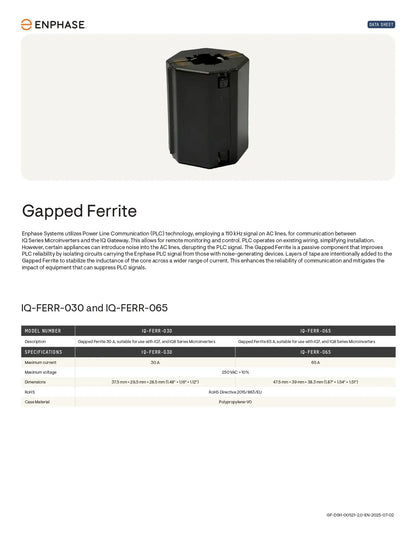

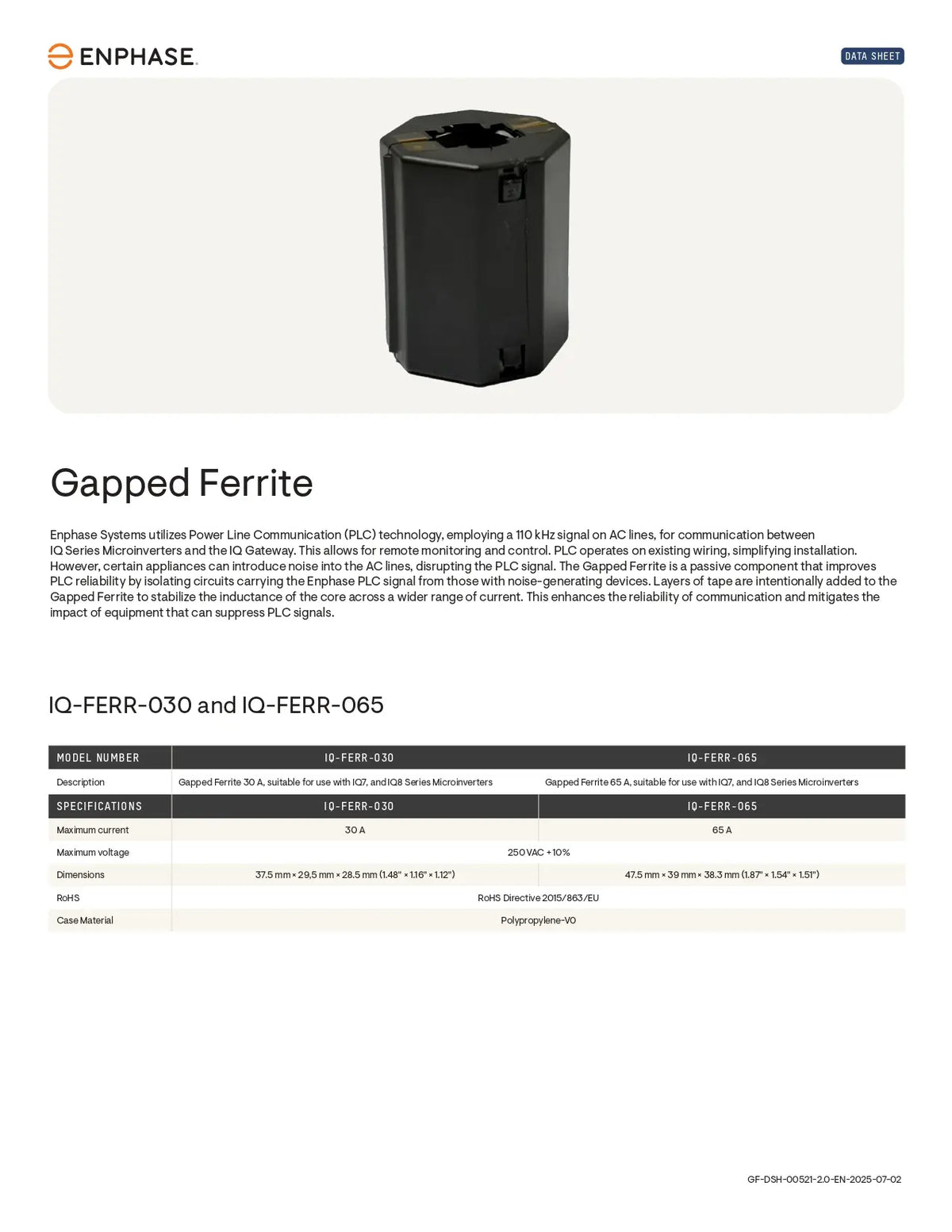

Technical Specifications:

• Manufacturer's Part #: IQ-FERR-065

• Manufacturer: Enphase
• Max. current: 65 A
• Max. voltage: 250 VAC + 10%
• Case material: Polypropylene-V0
• RoHS Directive 2015/863/EU
• Compatibility: IQ8 Series Microinverters, IQ7 Series Microinverters, IQ Gateway
• Weight: 4.4 lb
• Length: 47.50 mm
• Width: 39 mm
• Height: 38.3 mm
