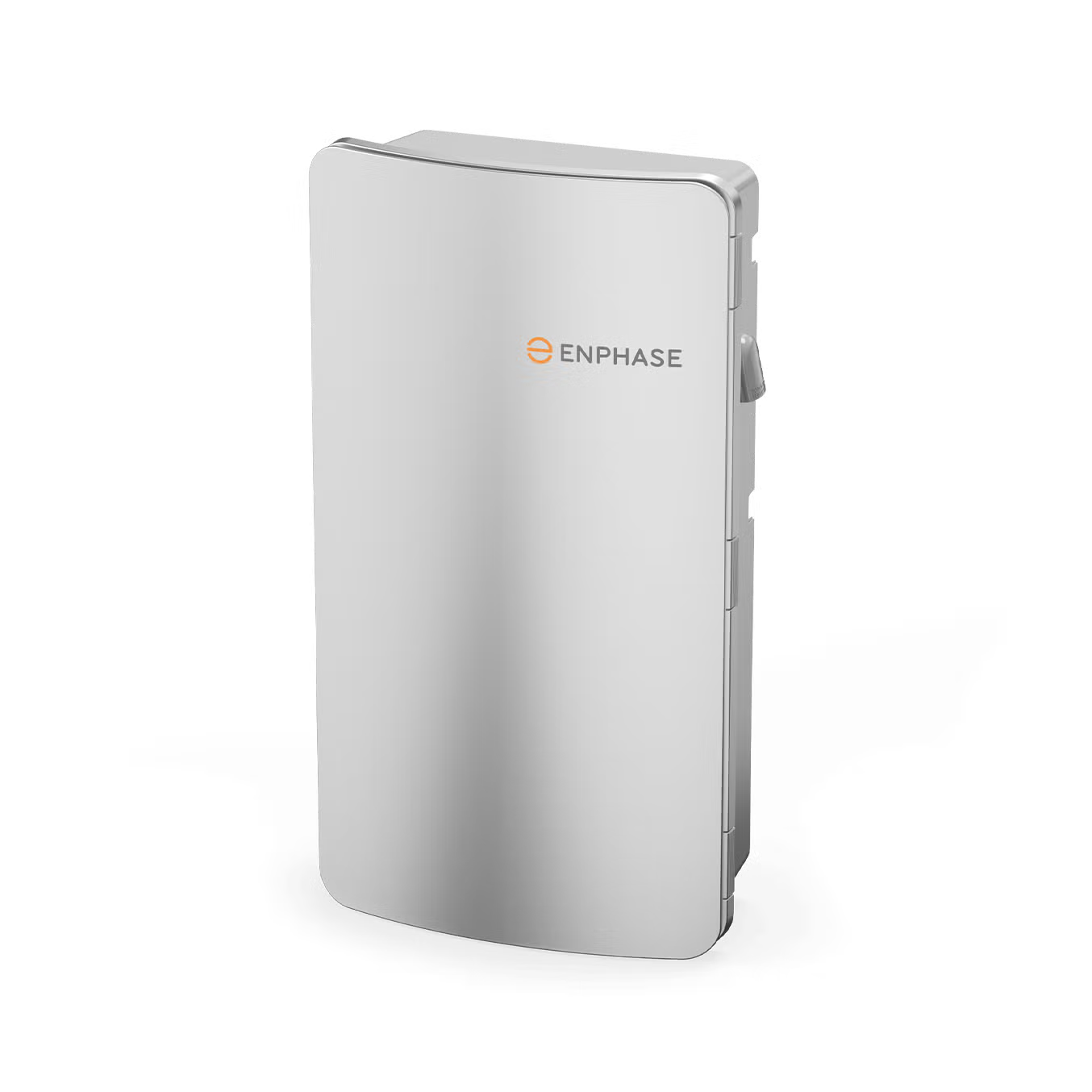

Enphase EN-SC200G111C240US01 200A 240VAC IQ System Controller 3G w/ Generator Integration Support

Enphase EN-SC200G111C240US01 200A 240VAC IQ System Controller 3G w/ Generator Integration Support

The Enphase IQ System Controller 3G connects the home to grid power, IQ Batteries, generator and solar PV with microinverters.

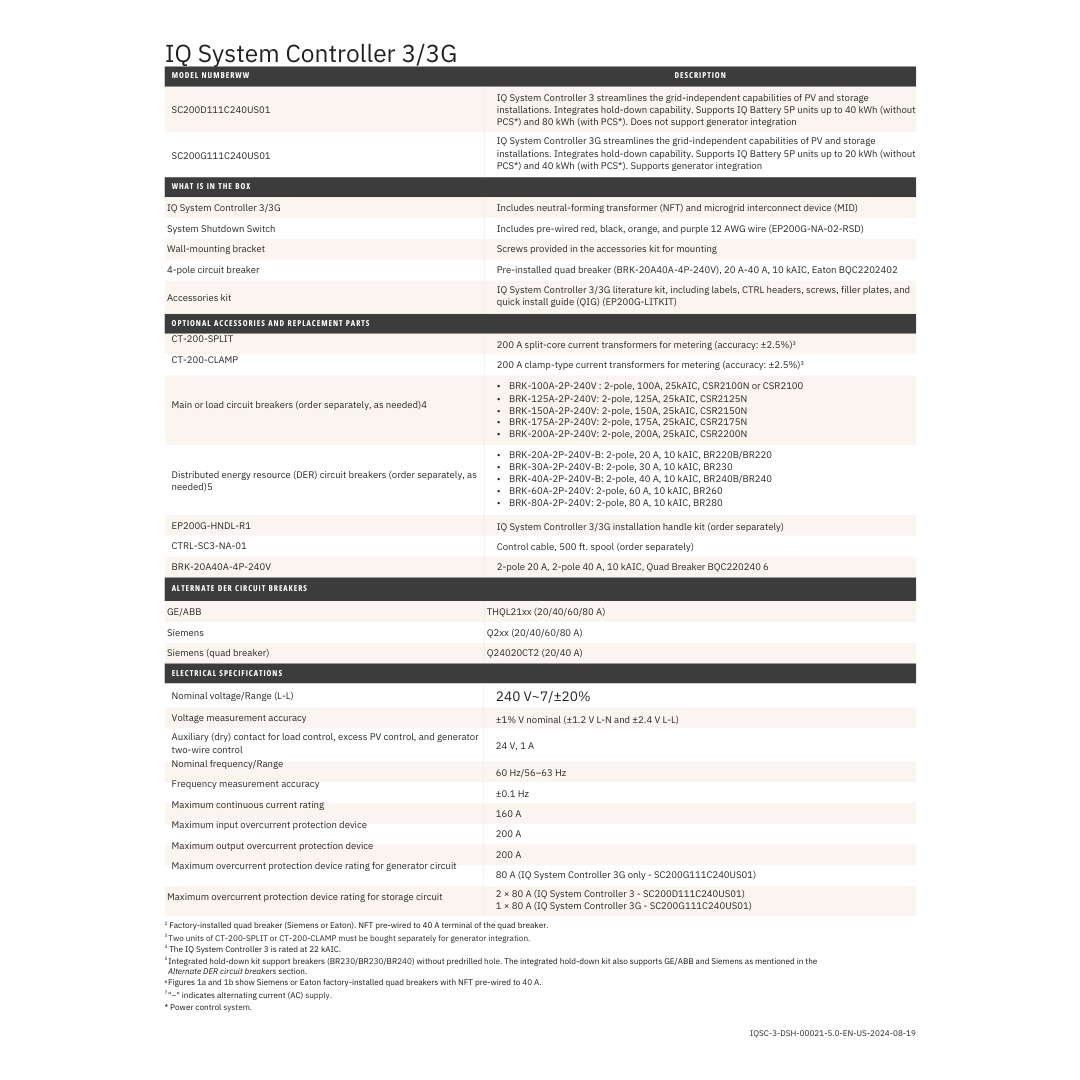

Technical Specifications:

• Maximum overcurrent protection device: 200 A
• Maximum continuous current: 160 A
• Nominal voltage: 240 VAC
• Depth: 9.7 in
• Width: 19.7 in
• Height: 36 in
• Weight: 87 lbs
• Nominal voltage/Range (L-L): 240 V~7/±20%
• Voltage measurement accuracy: ±1% V nominal (±1.2 V L-N and ±2.4 V L-L)
• Auxiliary (dry) contact for load control, excess PV control, and generator two-wire control: 24 V, 1 A
• Nominal frequency/Range: 60 Hz/56–63 Hz
• Frequency measurement accuracy: ±0.1 Hz
• Maximum continuous current rating: 160 A
• Maximum input overcurrent protection device: 200 A
• Maximum output overcurrent protection device: 200 A
