Enphase SC200G111C240US01 IQ System Controller 3G

Enphase SC200G111C240US01 IQ System Controller 3G

The Enphase IQ System Controller 3G connects the home to grid power, IQ Batteries, generator and solar PV with microinverters.

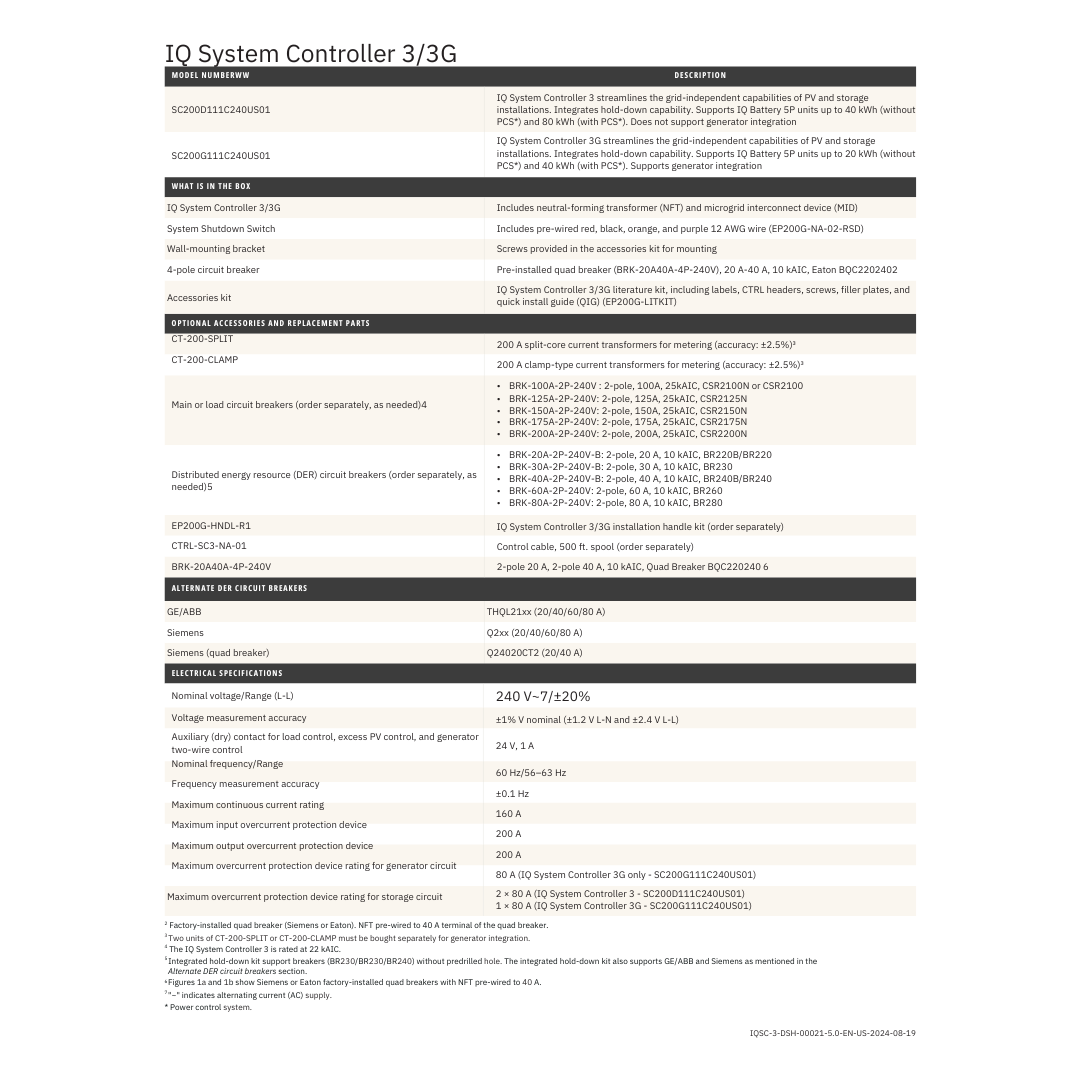

Technical Specifications:

• Maximum overcurrent protection device: 200 A
• Maximum continuous current: 160 A
• Nominal voltage: 240 VAC
• Depth: 9.7 in
• Width: 19.7 in
• Height: 36 in
• Weight: 87 lbs
• Nominal voltage/Range (L-L): 240 V~7/±20%
• Voltage measurement accuracy: ±1% V nominal (±1.2 V L-N and ±2.4 V L-L)
• Auxiliary (dry) contact for load control, excess PV control, and generator two-wire control: 24 V, 1 A
• Nominal frequency/Range: 60 Hz/56–63 Hz
• Frequency measurement accuracy: ±0.1 Hz
• Maximum continuous current rating: 160 A
• Maximum input overcurrent protection device: 200 A
• Maximum output overcurrent protection device: 200 A
