Description

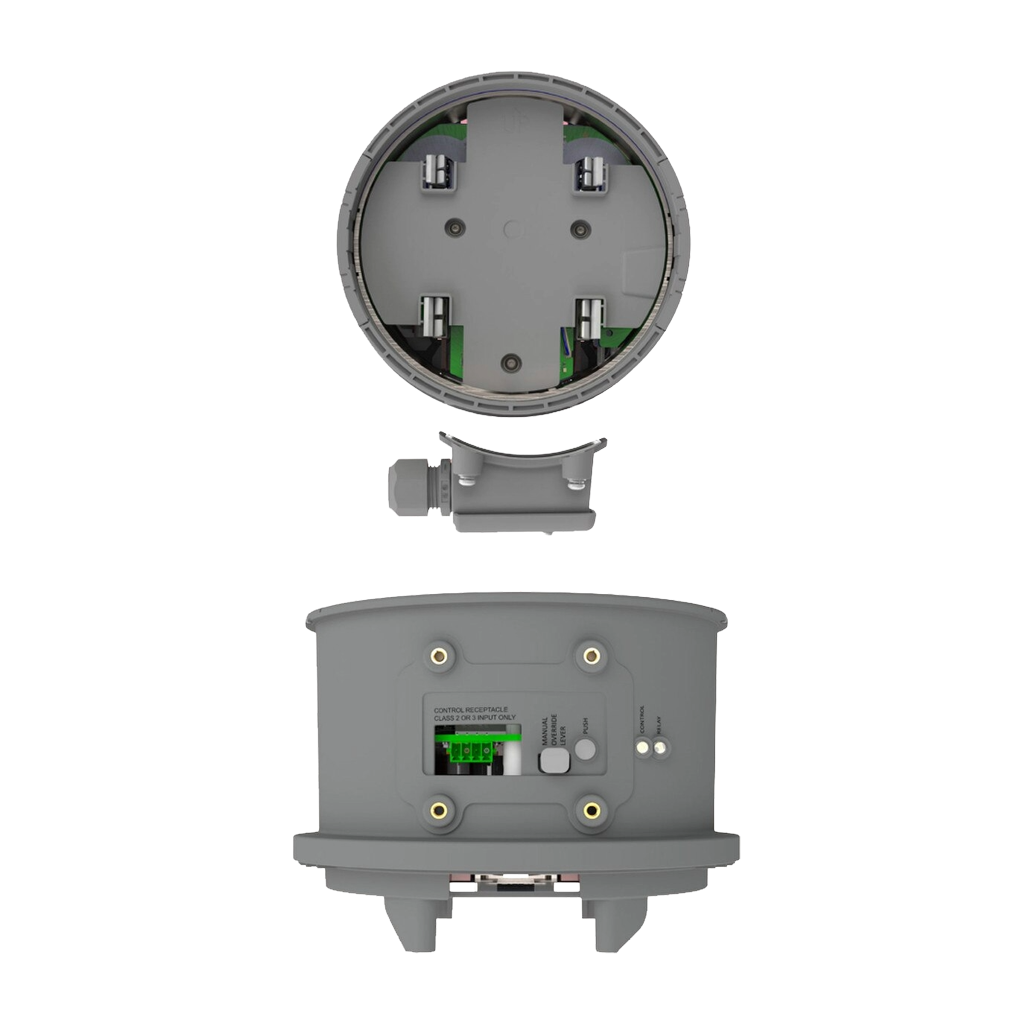

Enphase IQ Meter Collar 200A Meter Socket Adapter (MC-200-011-V01)
The Enphase IQ Meter Collar (MC-200-011-V01) is an advanced 200A meter socket adapter featuring integrated Microgrid Interconnection Device (MID) functionality and built-in current sensors for precise energy consumption metering. Engineered for seamless integration into the Enphase Energy System, it installs directly between the utility meter and an ANSI C12 Form 2S meter socket at service entrances or load-side standalone meter sockets.
By simplifying power flow measurement and grid isolation at the utility meter location, the IQ Meter Collar significantly reduces installation time, eliminates the need for complex internal CT wiring in main service panels, and accelerates home energy storage deployment.
Features include:
- Manufacturer Part Number: MC-200-011-V01
- Shipping Weight: 5 lb
- Shipping Dimensions: 9 x 9 x 9 in
- Case Qty: 14
- Pallet Qty: 14
-
Resourses
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
