Description

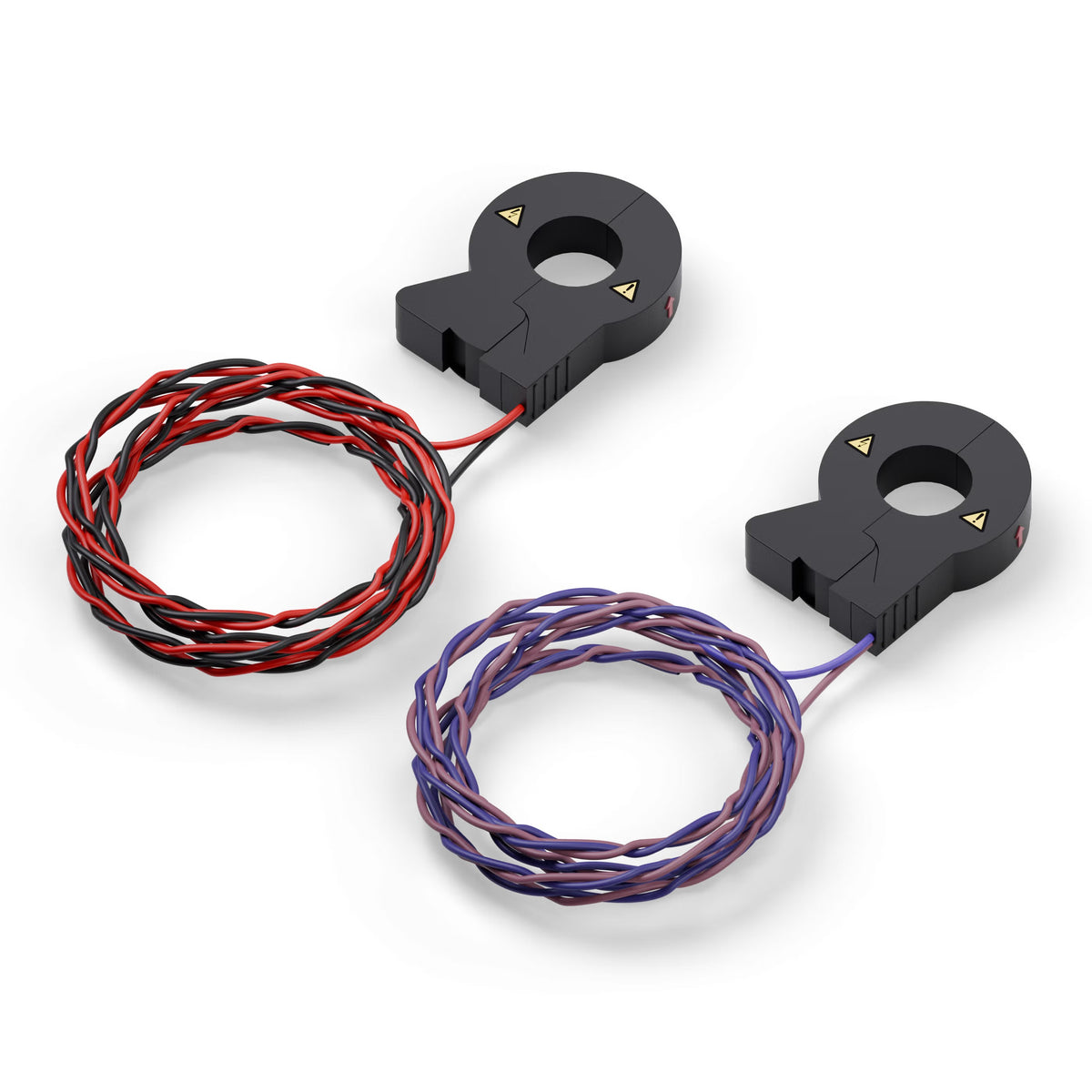

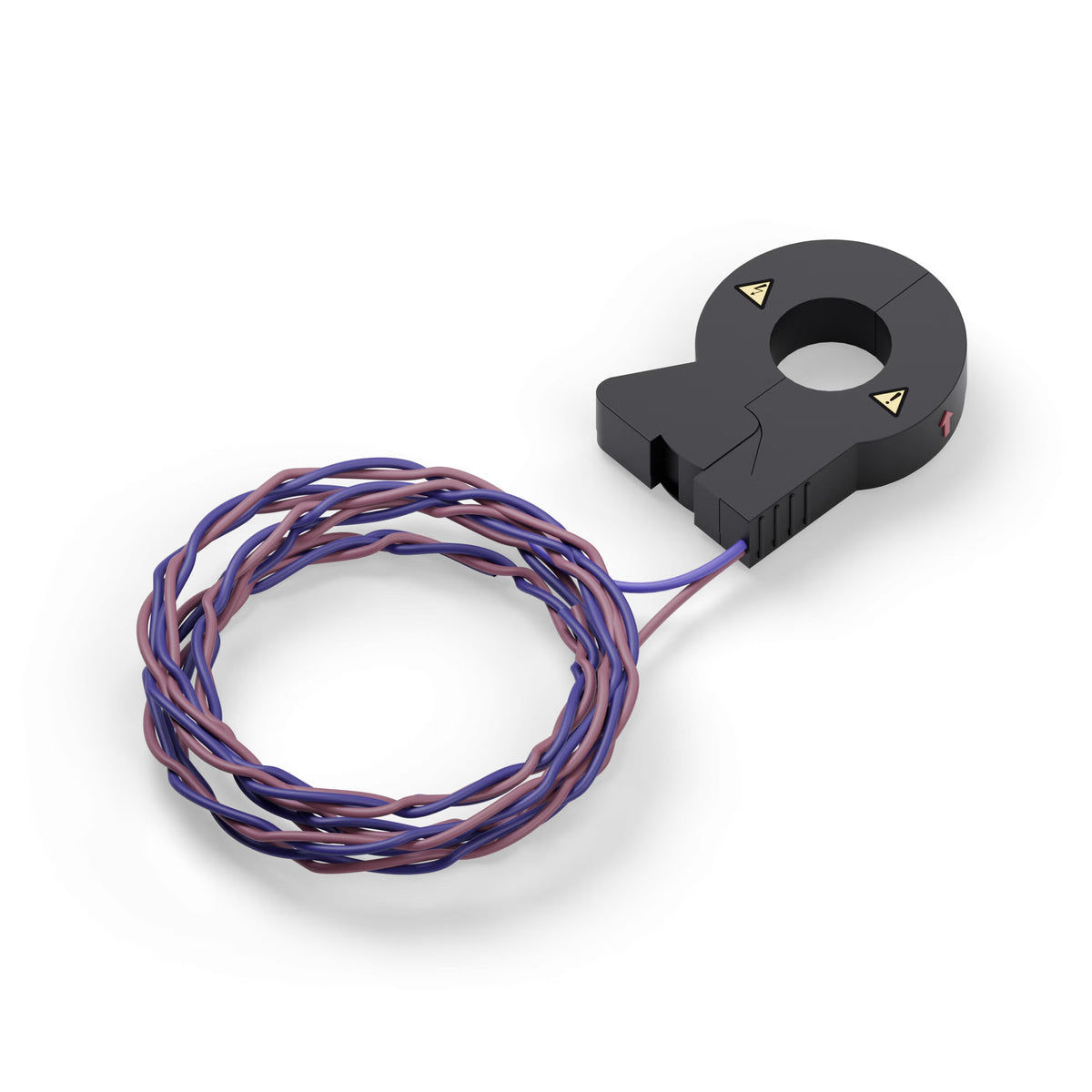

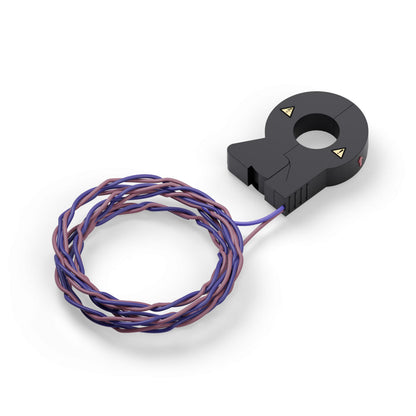

Enphase 200 A Consumption Clamp Current Transformers (CTs)
The Enphase CT-200-CLAMP-2A is a clamp-style consumption current transformer (CT) designed for real-time energy usage and battery monitoring in Enphase systems. Engineered to pair with IQ Combiner and IQ Gateway products (including IQ Combiner 6C), it measures current flow up to 200 A with a ±2.5% accuracy rating. Its one-handed clamp design allows easy placement around conductors in crowded electrical panels.
Certified to the UL 2808 safety standard, this consumption CT is approved for field installation at the main service entrance. Featuring a 0.87-inch inner aperture diameter, the compact housing fits easily over heavy-gauge service conductors without disconnecting field wiring. These clamp-on sensors enable accurate site metering required for grid-tied solar arrays and partial home battery backup management.
Technical Specifications:
- Manufacturer Part Number: CT-200-CLAMP-2A
- Product Type: Consumption Clamp Current Transformers
- Accuracy: -/+2.5%
- Max primary supported current: 200 A
- Dimensions: 2.75 in X 2.12 in X 0.61 in
- Aperture diameter: 0.87 in
- UL2808 certified for use at the service entrance
- Compatibility: IQ Combiner 6C
- Product weight: 0.2 lb
-
Datasheet
-
Installation
-
Warranty
No warranty file resource available. Email support@solux.energy for file request.
