Yaskawa Solectria ENC-G6 Ethernet Network Card

Yaskawa Solectria Solar,  ENC-G6

The Solectria ENC-G6 is a communications gateway used to connect and monitor compatible Solectria commercial 1000VDC string inverters. It supports inverter communication through RS485, and provides connectivity through Ethernet, Wi-Fi, and 4G cellular. It can also communicate with SCADA/plant controllers and allows connected inverters to be discovered and monitored through the Yaskawa Connect Pro app.

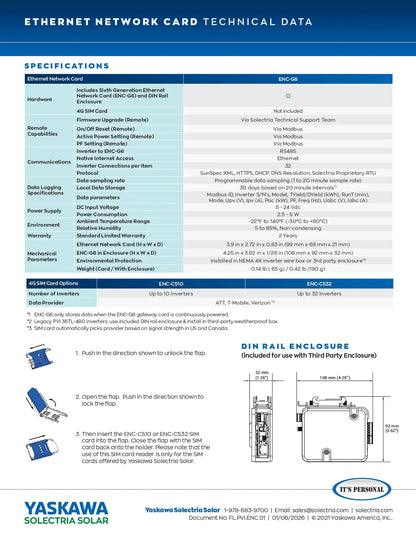

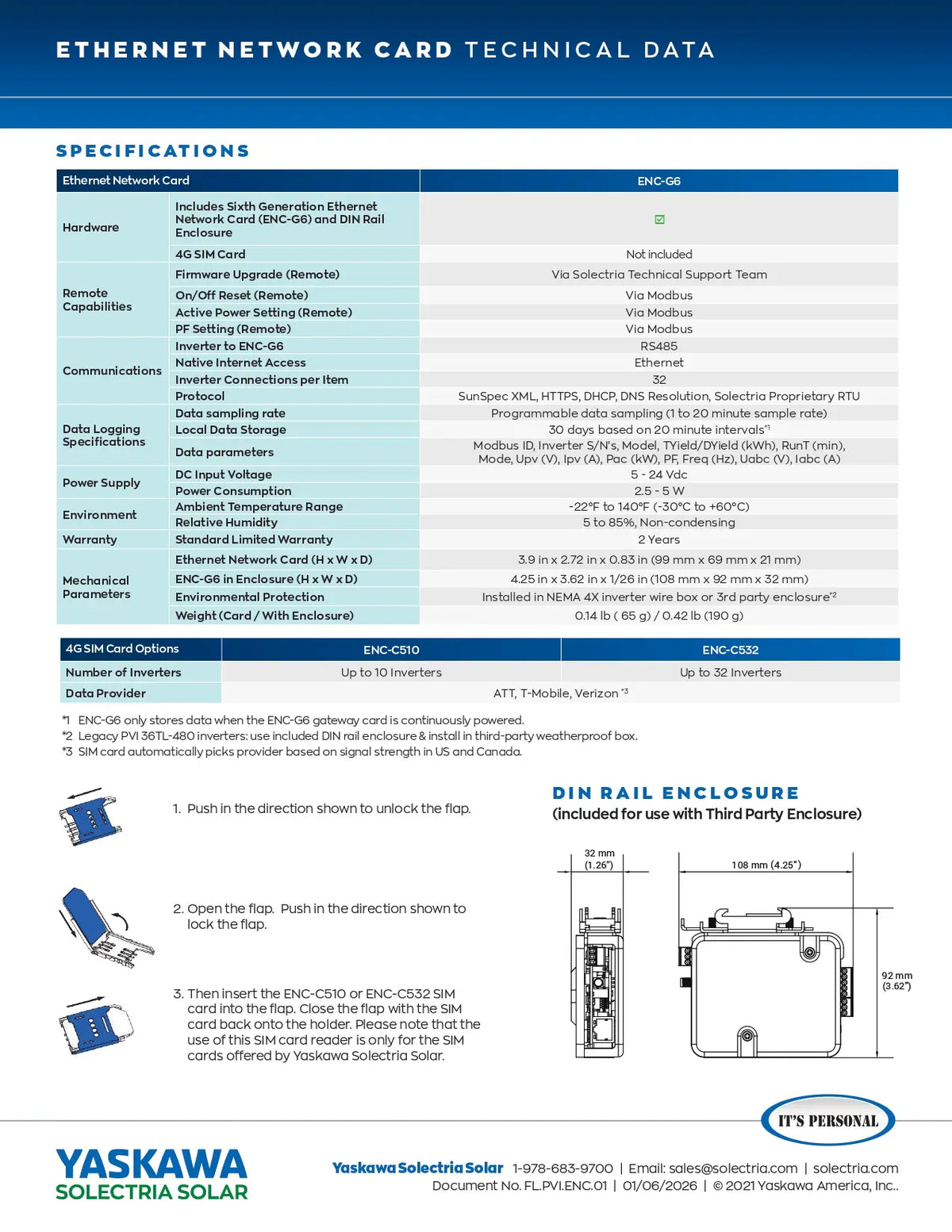

Specifications:

• Manufacturer Part Number: ENC-G6
• Product Type: Commercial 1000VDC string inverter communications gateway/accessory

Mechanical:

• Voltage: 5–24 VDC input
• Power Consumption: 2.5–5 W
• Inverter Communication: RS485
• Internet Communication: Ethernet
•  Inverter Capacity: Up to 32 inverters per ENC-G6
• Communication Protocols: SunSpec XML, HTTPS, DHCP, DNS Resolution, and Solectria Proprietary RTU
• Data Sampling Rate: Programmable from 1–20 minutes
• Operating Temperature: -30°C to +60°C (-22°F to +140°F)
• Relative Humidity: 5–85%, non-condensing
