Description

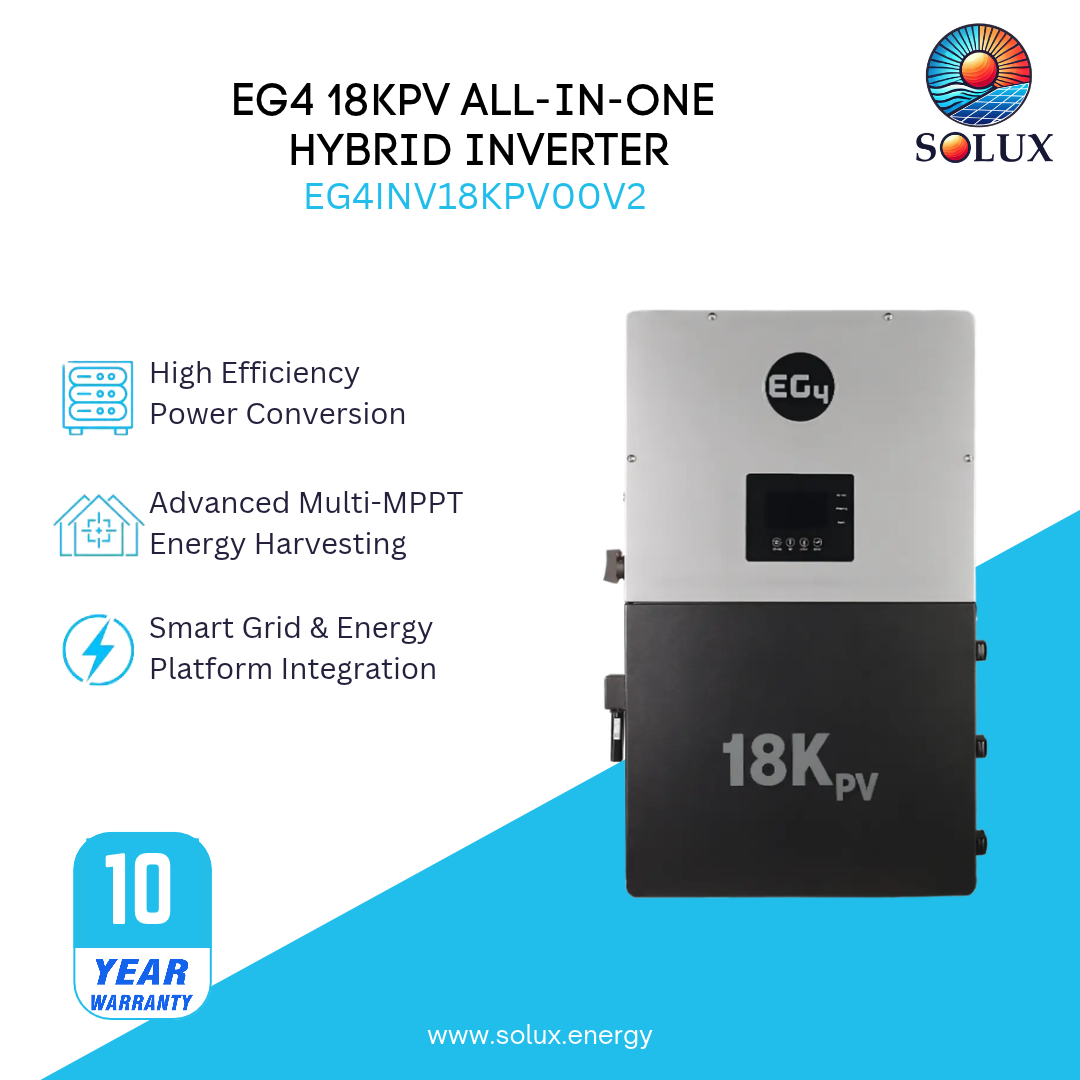

EG4 18kPV All-In-One Hybrid Inverter
The EG4 18kPV hybrid inverter/charger is a robust solution for solar users seeking flexibility and efficiency. EMP-hardened to withstand natural or manmade disruptions, it supports off-grid, grid-assist, and grid-tied modes, allowing for energy independence, backup from the grid, or selling excess energy.
With 18kW PV input and 12kW output, the inverter offers high energy handling and can parallel up to 10 units for expanded capacity. A 600V DC input and three MPPTs ensure optimal energy conversion and streamlined cable management. The 18kPV provides split-phase 120/240V or 120/208V output and integrates seamlessly with 48V EG4 or other battery brands. Built-in Wi-Fi enables remote monitoring via the EG4 app, making it ideal for homes and businesses focused on solar savings and energy independence.
Technical Specifications:
- AC Output: 12kW continuous
- PV Input: 18kW PV
- Number of MPPTs: 3 (600VDC max input each)
- Parallel: Up to 10 units for a combined 120kW output
- DC Input Voltage Range: 100–600 VDC
- Dimensions: 34.3×20.5×11.2 in. (87×52×28.5 cm)
- Weight: 121.25 lbs (55kg)
- Warranty: 10 year
-
