Details

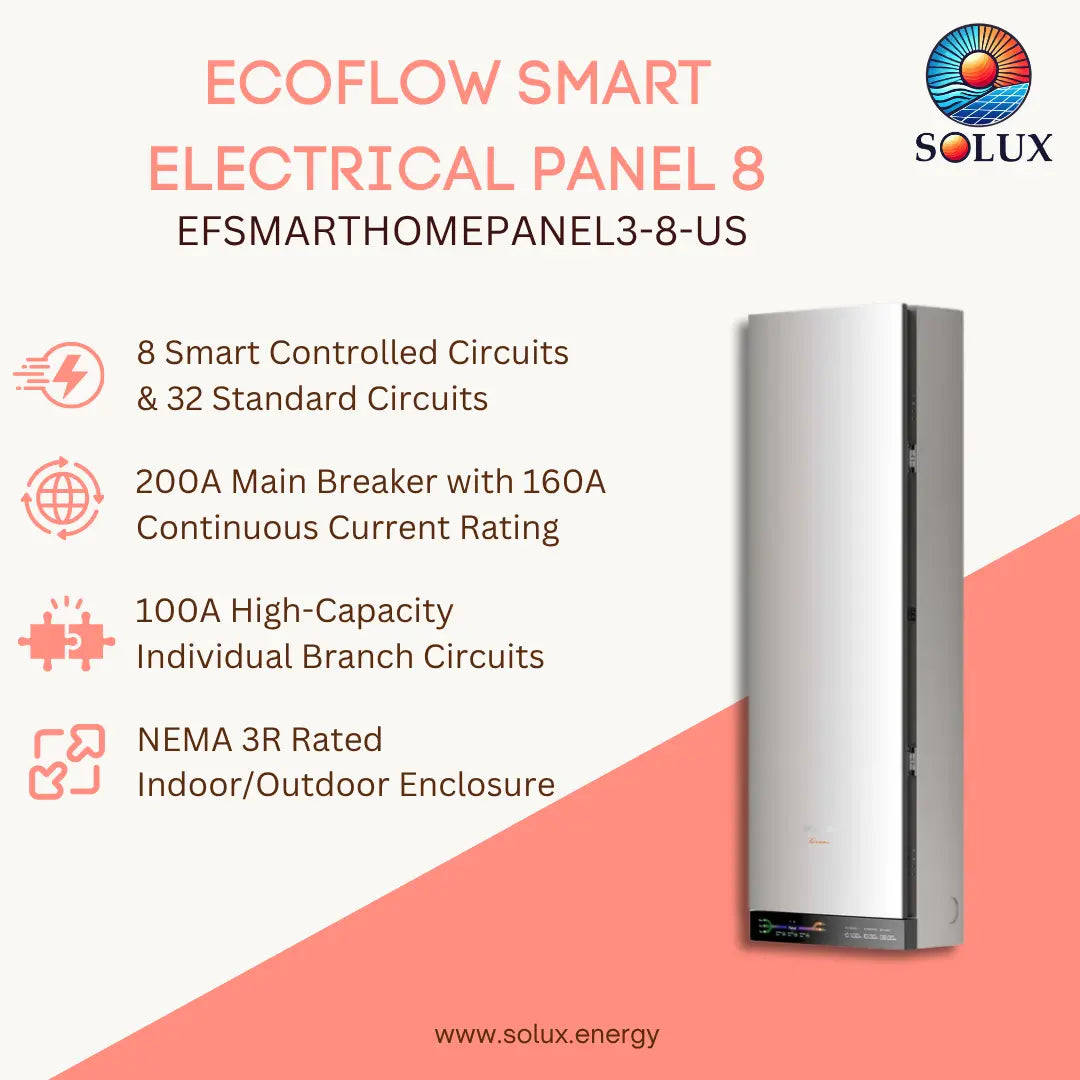

EcoFlow Smart Electrical Panel 8
The EcoFlow Smart Electrical Panel 8 (MPN: EFSMARTHOMEPANEL3-8-US) is an advanced 120/240V split-phase subpanel designed to manage smart home energy distribution and automated circuit shedding. Equipped with a 200A main breaker, it supports up to 160A of continuous current while accommodating up to 8 smart-controlled circuits and 32 standard expansion circuits.
Engineered for seamless integration with the EcoFlow Ocean Pro Hybrid 24kW Inverter 120/240V and EcoFlow OCEAN Pro LFP Battery Module (10 kWh) battery storage system, this panel manages home branch circuits rated up to 100A each. Protected by a NEMA 3R outdoor-rated enclosure suitable for surface wall mounting or flush mounting, it provides intelligent load management and grid backup transition backed by a 15-year manufacturer warranty.
Specification
- Manufacturer: EcoFlow
- MPN: EFSMARTHOMEPANEL3-8-US
- Product: EcoFlow Smart Electrical Panel 8
- Voltage: 120/240V
- Phase: Split-phase
- Smart Circuits: 8
- Standard Circuits: 32
- Main Breaker: 200A
- Enclosure: NEMA 3R
- Mounting: Wall or flush mount
-
Warranty: 15 years
-
Resources

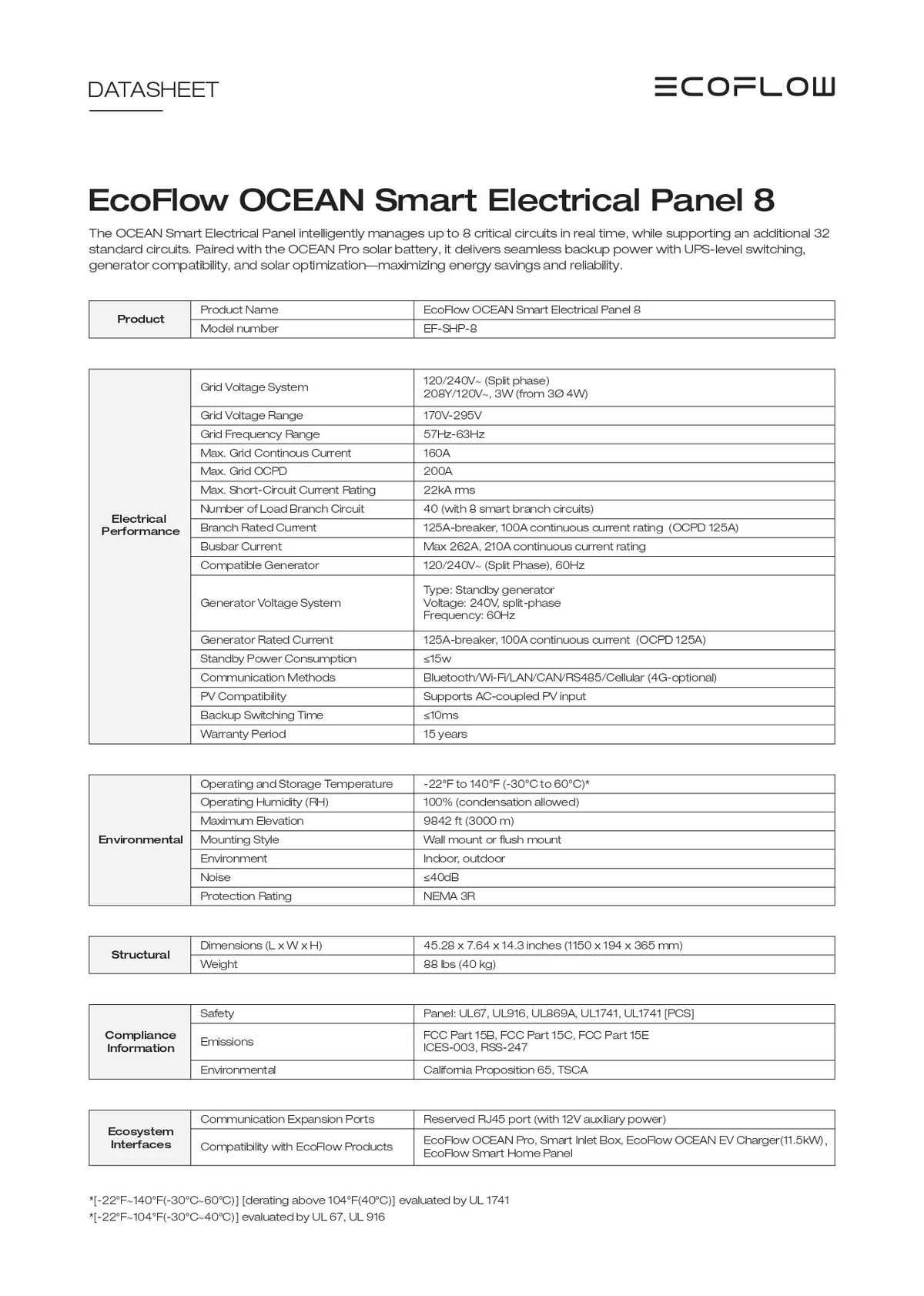

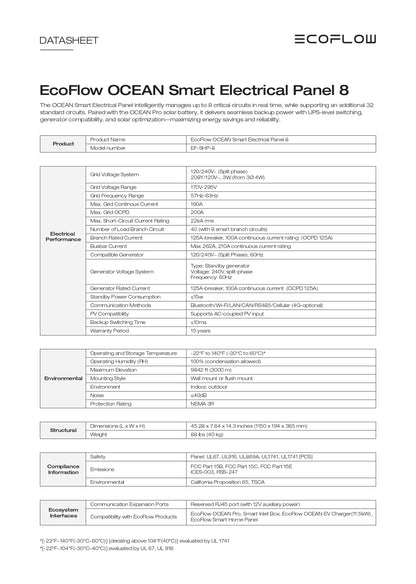

✔️ Download EFSMARTHOMEPANEL3-8-US Datasheet.pdf
✔️ No installation and warranty file resource available. Email support@solux.energy for file request.
